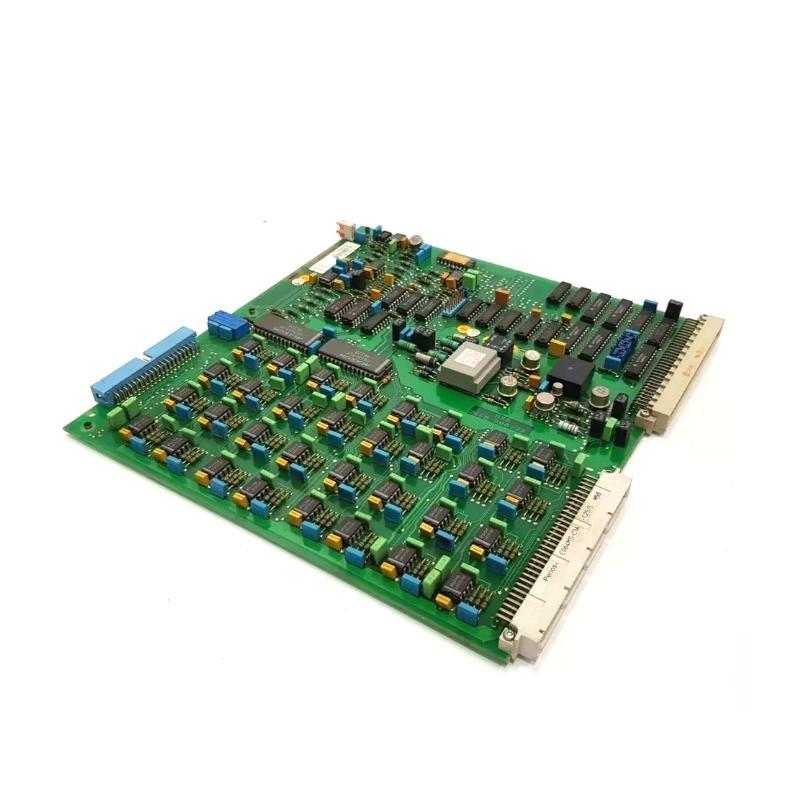

ABB DSAI 110 57120001-DP Analog Input Board Unbelievable Prices!

Frequently Asked Questions (FAQ)

What is the maximum sampling rate of the DSAI 110 module?

A1: The DSAI 110 operates at a standard sampling rate of 10 samples per second per channel, suitable for most industrial monitoring applications.

Can this module be used in hazardous areas?

A2: No, the DSAI 110 is not intrinsically safe. For hazardous environments, additional barriers or isolators are required.

Is the DSAI 110 hot-swappable?

A3: Yes, when used with ABB’s Advant Controller 400 series, it supports hot-swapping without system shutdown.

What is the difference between single-ended and differential input?

A4: Single-ended measures voltage relative to ground, while differential measures between two wires (better noise rejection). The DSAI 110 is single-ended only.

Can it handle 4-20mA signals?

A5: Yes, the module supports ±20mA input, which includes the standard 4-20mA industrial signal range.

What communication protocols are supported?

A6: The base model uses parallel backplane communication. An optional Profibus-DP interface is available.

What is the expected lifespan of this module?

A7: Under normal operating conditions, the DSAI 110 has an MTBF (Mean Time Between Failures) of 200,000 hours.

Does ABB provide software configuration tools?

A8: Yes, ABB’s Automation Builder or Control Builder software can be used for configuration and diagnostics.
