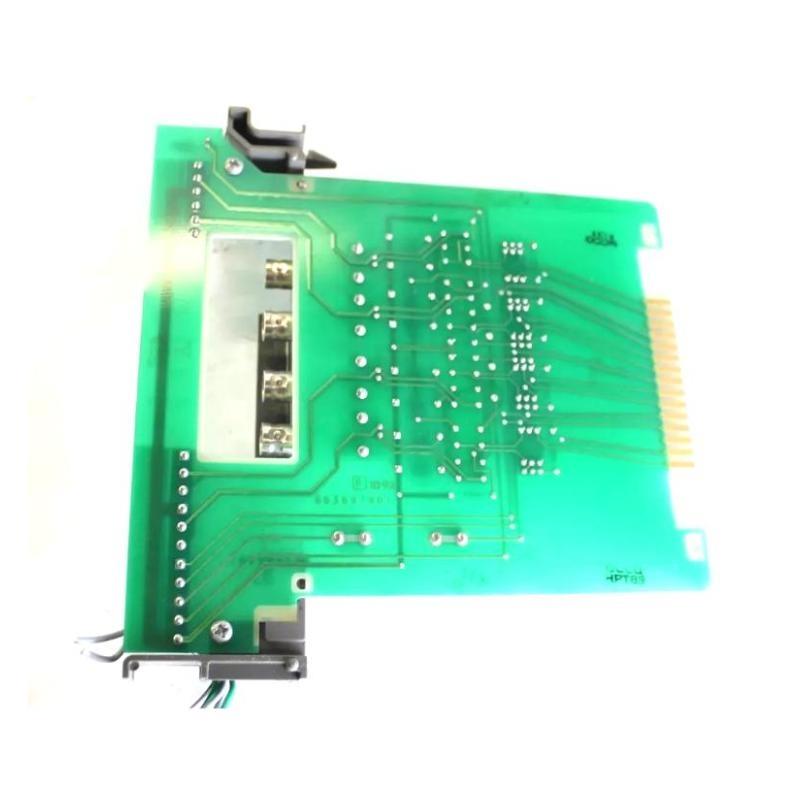

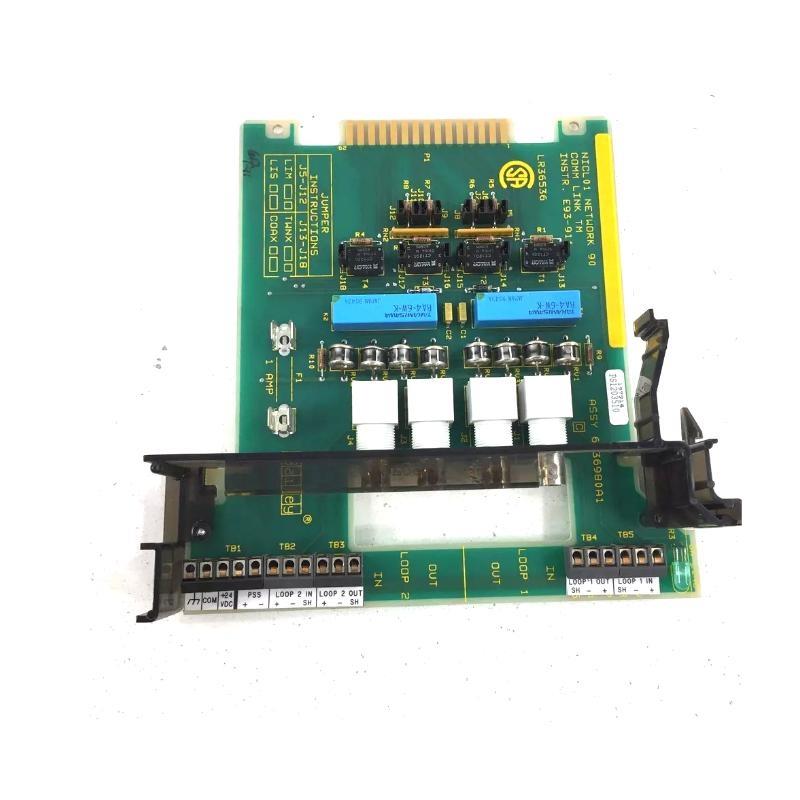

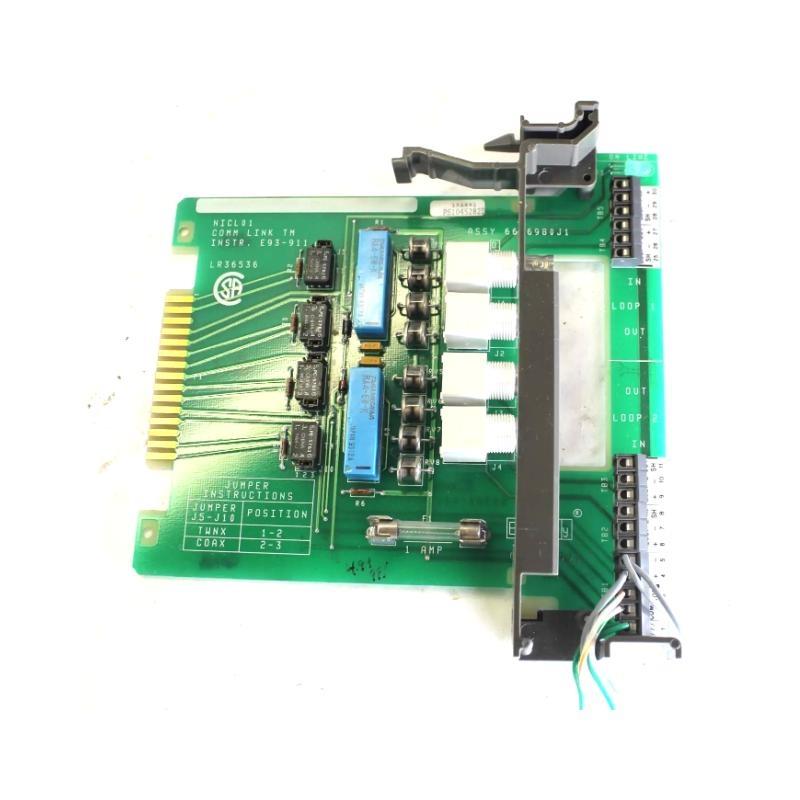

ABB Bailey NICL01 Infi 90 Communication Link Termination Module Original

Frequently Asked Questions (FAQ):

How do I install the NICL01 module?

Ensure the fuse and jumpers are installed. Mount the module in the NTMU01/02 unit, connect cables, and power.

What cable types are supported by the NICL01?

The NICL01 supports both twinaxial and coaxial cables. Jumper settings must match the cable type.

Can I use the NICL01 for both INFI-NET and Plant Loop connections?

Yes, the NICL01 is designed to support both INFI-NET and Plant Loop connections with the appropriate cable and jumper settings.

What is the fuse rating for the NICL01?

The fuse is 1.0 amp/250 volts.

How do I replace the fuse on the NICL01?

Turn off power, remove the front cover, replace the fuse with a 1.0A/250V fuse, and reassemble.

Can the NICL01 be used in high-temperature environments?

The module operates in temperatures from 0°C to 70°C, making it suitable for most industrial environments.

How do I configure the jumpers for different cable types?

Refer to the jumper settings provided in the manual to match the impedance of the cable being used.

What happens if I remove the NICL01 from the loop?

Removing the NICL01 will interrupt communication with the network or plant loop.
