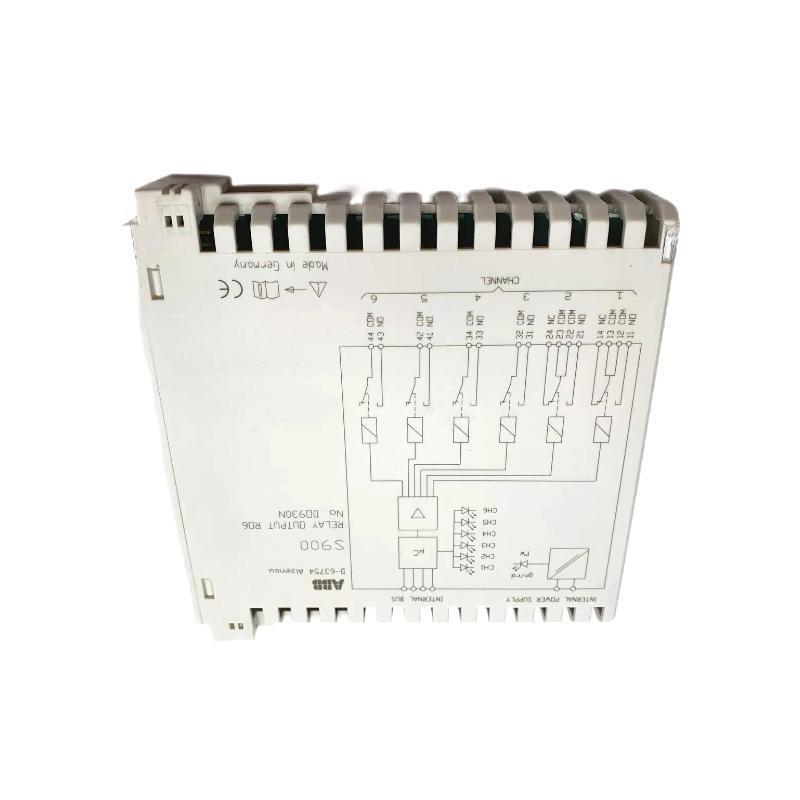

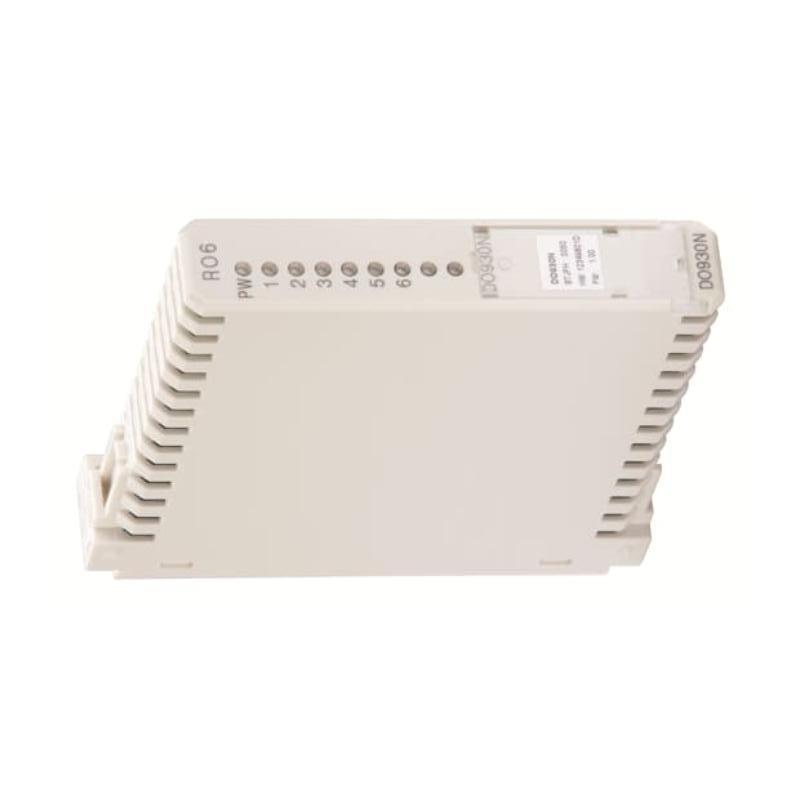

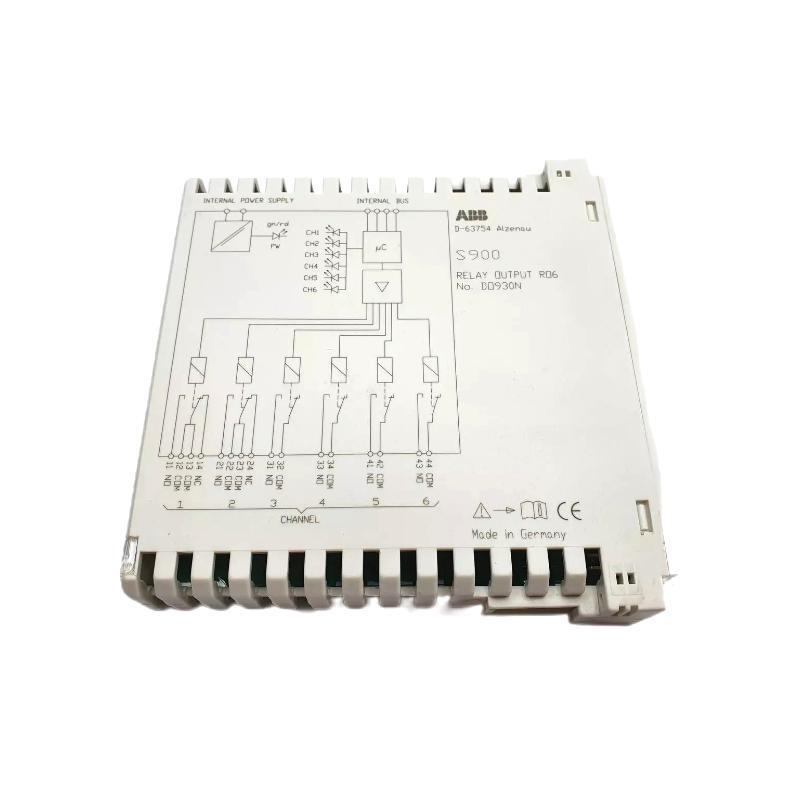

ABB DO930 S900 I/O systems Digital Output Module 100% New

Frequently Asked Questions (FAQ)

What is the maximum switching frequency for the DO930 module?
The DO930 can reliably switch at frequencies up to 1Hz continuously. For higher frequency applications, solid-state output modules are recommended.

Can the DO930 module be used in safety instrumented systems?
The standard DO930 is suitable for general purpose applications. For safety systems, the DO930S version with SIL2/SIL3 certification should be used.

What is the recommended maintenance interval for the DO930 module?
Under normal operating conditions, ABB recommends visual inspection every 12 months and functional testing every 24 months.

How are failed output channels indicated on the module?
Each channel has an individual LED indicator that shows operational status. The module also provides system-level diagnostics through the backplane communication.

Can the DO930 module drive inductive loads directly?
Yes, but for highly inductive loads, external suppression circuits are recommended to protect the relay contacts and extend their service life.

What is the difference between the N and S versions of the DO930?
The N version is for non-hazardous areas, while the S version has additional certifications for use in hazardous locations with appropriate barriers.

How does the DO930 handle power loss situations?
On power loss, all outputs de-energize to the fail-safe state. The module supports configurable output states if this behavior needs modification.

What tools are required for module replacement?
Only a standard screwdriver is needed for terminal connections. No special tools are required for module insertion/removal from the base unit.
