Name: ABB Bailey NIDI01 Infi 90 Digital Input Termination Module Fast Shipping!
Brand: ABB PLC
SKU: 7742
Availability: InStock
Rating: 5.0 (1 reviews)

Product Details

ABB PLC provide various solution for industries and applications, include water, building infrastructure, renewable energy, machinery automation, data centers, marine and more.

ABB DCS 800xA System/S800

ABB DCS 800xA System/S900

ABB Advant OCS/800XA

ABB H&B Freelance 2000

ABB BAILEY-INFI90/Bailey Net 90

ABB DSQC Robot Parts

ABB PLC Cards and Boards

Product Introduction

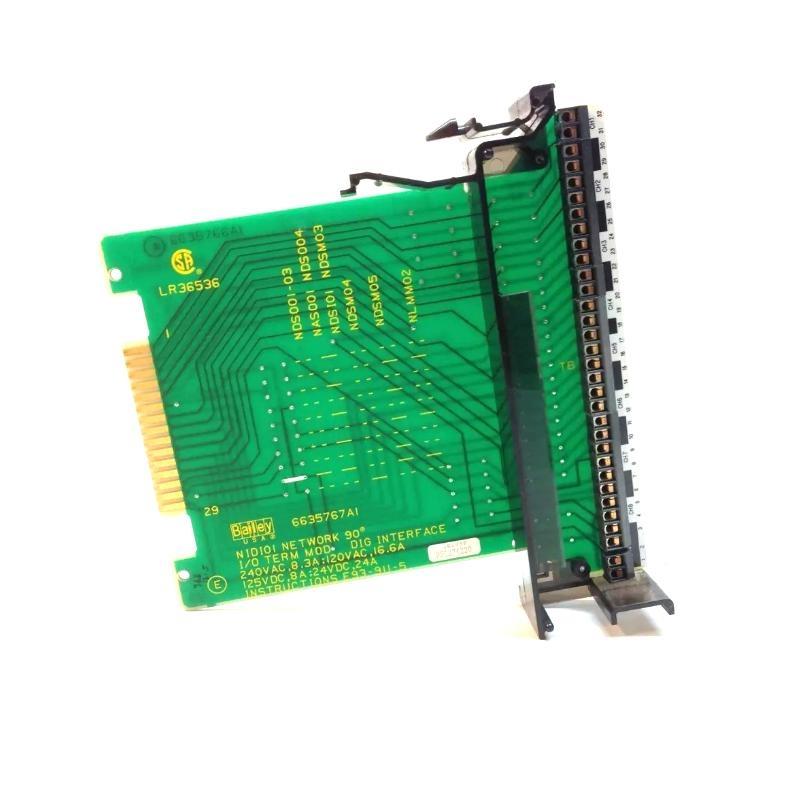

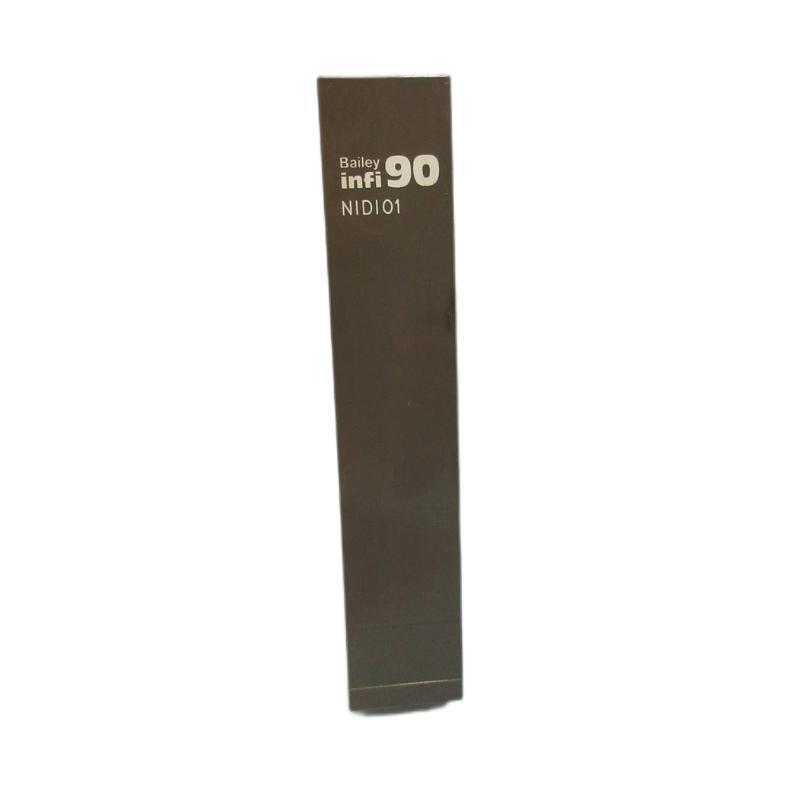

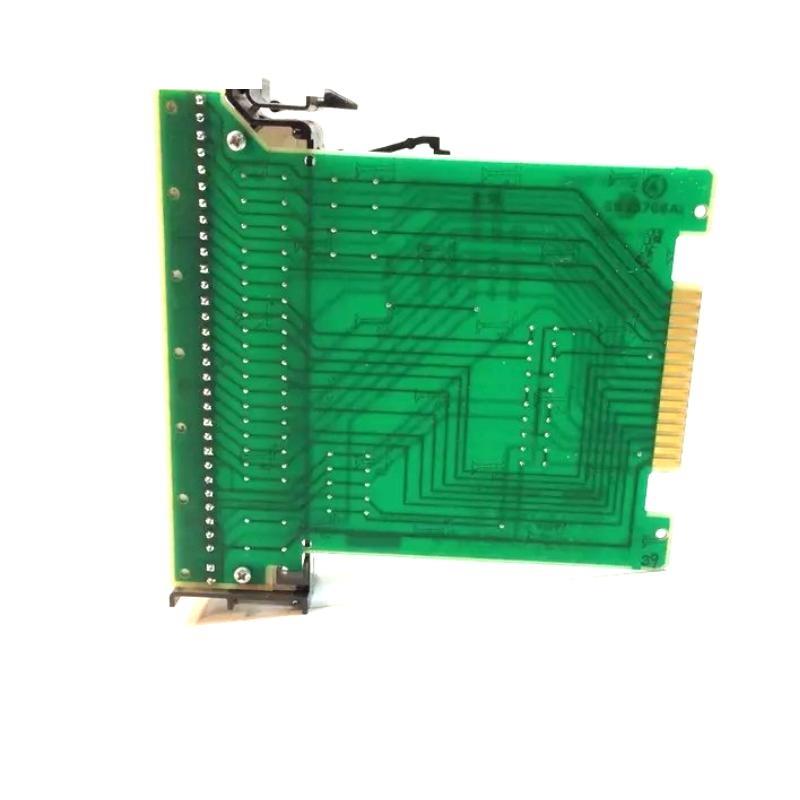

ABB Bailey NIDI01 Infi 90 Digital Input Termination Module Fast Shipping!

Brand：ABB Bailey

Item No.：NIDI01

Product Type：Digital Input Termination Module

Product Origin：Sweden (SE)

Dimensions：78.74 x 215.9 x 233.68 mm

Weight：0.7 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Formal channels, complete testing instructions, and responsive services

Large stock, diverse series, and adaptable to different working conditions, welcome to consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQs:

What types of digital signals can the NIDI01 module accept?

The module accepts 24 VDC, 125 VDC, and 120 VAC input signals.

How does the response time setting work?

The module allows you to configure the response time to either “Fast” (1.5 ms) or “Slow” (17 ms) based on the application needs.

Can the NIDI01 module be replaced while the system is running?

Yes, the module can be hot-swapped without requiring system downtime.

How are input signals processed in the NIDI01 module?

The input signals are isolated, compared for voltage levels, and transmitted to the master module via the slave expander bus.

Is there any environmental protection for the module?

The NIDI01 module operates within a non-corrosive environment and is protected against electrical interference.

How can I troubleshoot input issues?

Check the front panel LED indicators to identify any faults in the digital input signals.

What is the maximum input current the module can handle?

The module can handle a maximum of 5 mA at 120 VAC, 3 mA at 125 VDC, and 3 mA at 24 VDC.

Does the module support different field wiring types?

Yes, the NIDI01 module supports a wide variety of field devices and wiring types, including direct contact inputs.
