Product Details

Emerson brands include Fisher, Rosemount, DeltaV, Epro，Ovation.

Product Introduction

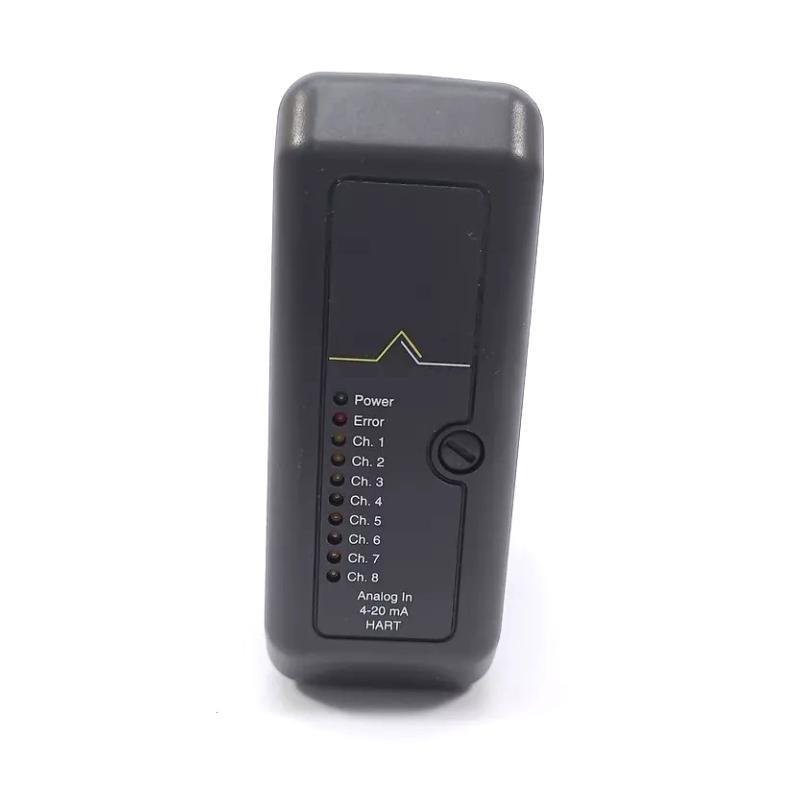

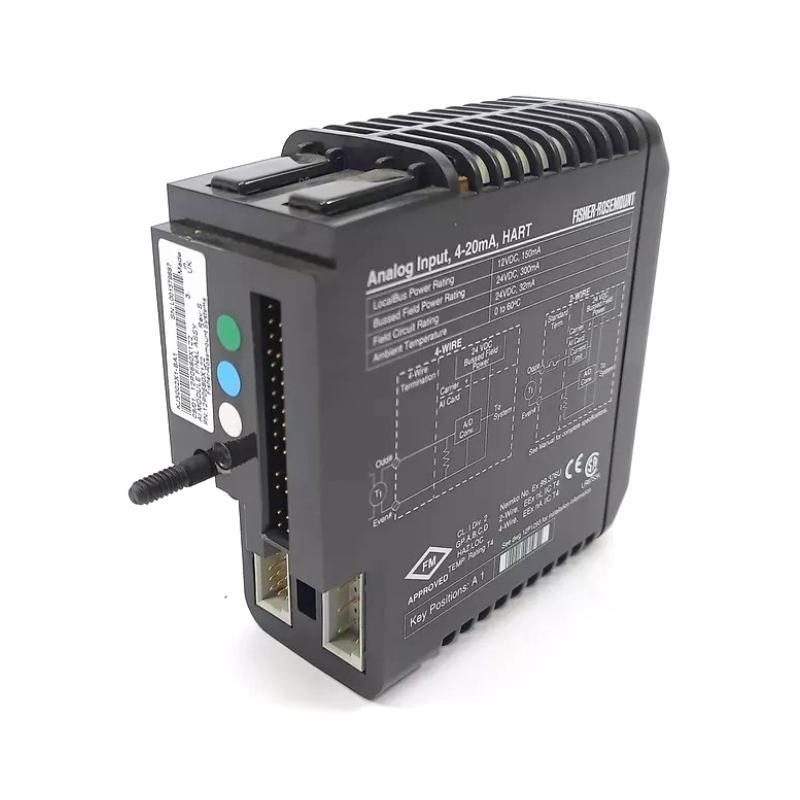

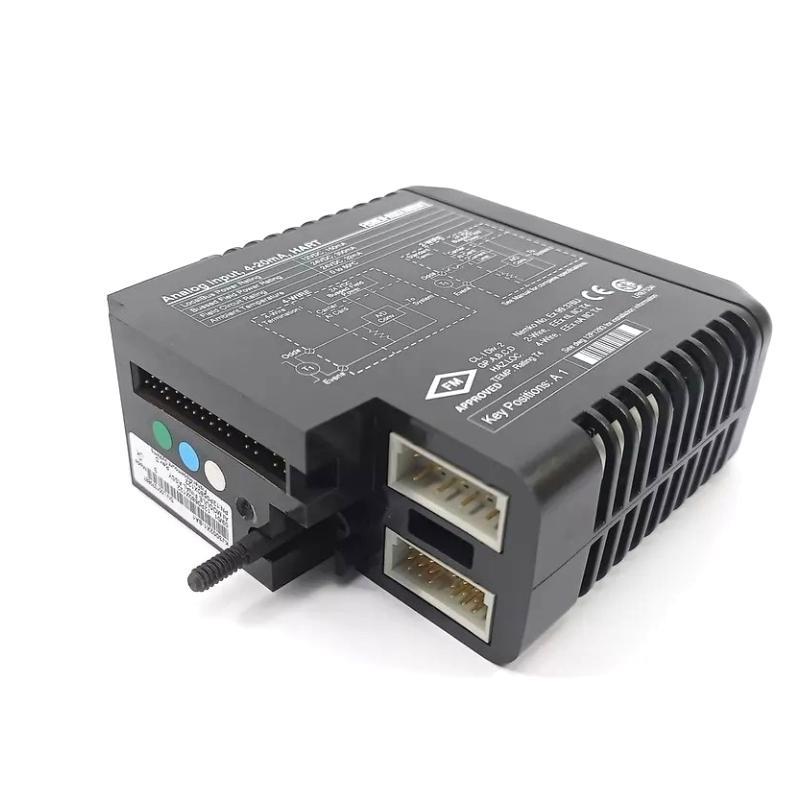

Emerson KJ3002X1-BA1 12P0680X122 DeltaV Analog Input HART Module Trusted supplier

Brand：Emerson

Item No.：KJ3002X1-BA1 12P0680X122

Product Type：Analog Input HART Module

Product Origin：USA

Dimensions：107 x 41 x 105 mm

Weight：0.2 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original overseas introduction, test assistance instructions support, stable and reliable service

There are abundant spot models, supporting quick docking of purchasing needs, welcome to inquire!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

Can the KJ3002X1-BA1 module be hot-swapped during operation?
Yes, but only under specific conditions – when used with KJ1501X1-BC1 System Dual DC/DC Power Supply and when primary circuit wiring inductance is less than 23 uH. Only one unit at a time may be removed with system power energized.

What is the maximum ambient temperature for operation?
The module is rated for operation in ambient temperatures from 0 to 60°C (32 to 140°F).

Does this module support HART communication?
Yes, the KJ3002X1-BA1 is a HART-enabled analog input module designed to communicate with HART-compatible field devices.

What safety precautions should be taken when installing or removing the module?
Field power must be removed before removing or connecting the device, unless using the specified power supply under the proper conditions. An I/O loop assessment must be completed on all energy-limited nodes.

What is the significance of the terminal block key position?
The A1 key position ensures compatibility between I/O cards and terminal blocks, preventing incorrect installations that could damage equipment.

Can the terminal block fuse be replaced while power is on?
No, the terminal block fuse may NOT be removed with field power energized for non-sparking circuits.

What protection rating does this module have?
The module has an IP 20 rating, providing protection against solid objects larger than 12.5mm but no protection against water ingress.

How does the vibration resistance specification affect installation?
The module can withstand vibrations of 1mm peak-to-peak from 5-16Hz and 0.5g from 16-150Hz, making it suitable for installation in areas with mechanical vibration without requiring special mounting arrangements.
