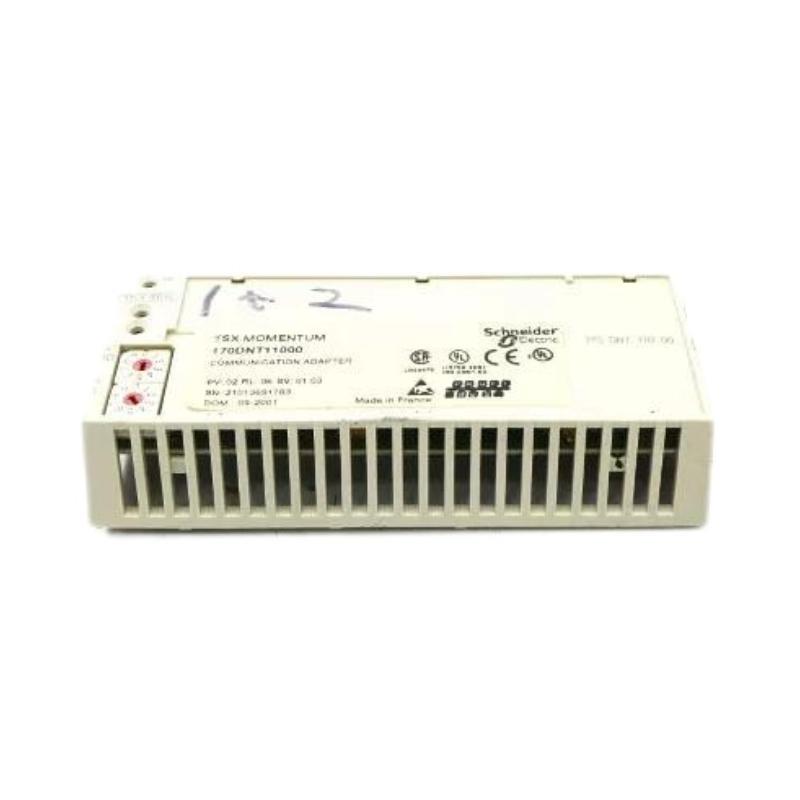

Schneider 170DNT11000C Profibus DP Communication Adaptor 12-Month Warranty

FAQs (Frequently Asked Questions)

Here are eight common questions about the Schneider 170DNT11000C PROFIBUS DP Adapter:

What is the primary function of the 170DNT11000C?

The 170DNT11000C serves as a PROFIBUS DP Communication Adapter, allowing Momentum I/O bases to interface with PROFIBUS DP networks.

How is the PROFIBUS address configured?

The address is set using two rotary switches on the front of the adapter, allowing settings between 1 and 99.

What is the maximum communication speed of this adapter?

The adapter supports speeds of up to 12 Mbps for high-speed industrial communication.

Can the adapter be used with all Momentum I/O bases?

Yes, the 170DNT11000C is designed to work with all Schneider Momentum I/O bases.

What LED indicators are available on the module?

There is a Bus Fault (BF) LED, which lights up red to indicate bus communication errors.

Is the adapter isolated from the fieldbus?

Yes, it features electrical isolation between the RS485 PROFIBUS DP interface and internal logic.

What are the main diagnostic capabilities?

The module provides standard and extended diagnostics, including I/O errors, parameter faults, and firmware identification.

What are the recommended applications for this adapter?

The 170DNT11000C is best suited for factory automation, process control, power plants, and building management.
