Product Details

Schneider aims to bring Sustainability and Efficiency for all. Modicon Quantum system is the advanced PLC system.

Product Introduction

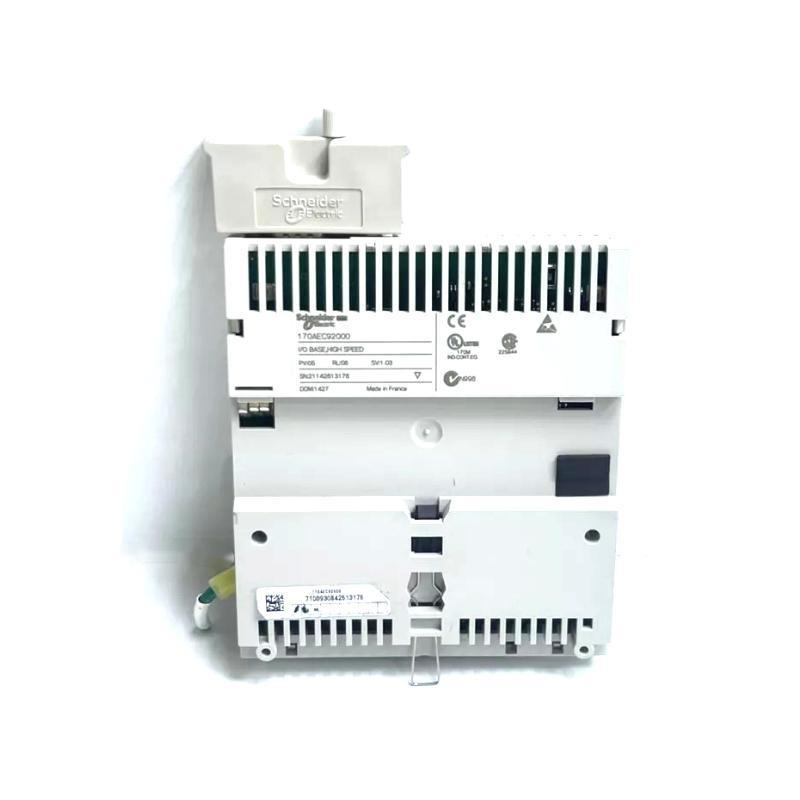

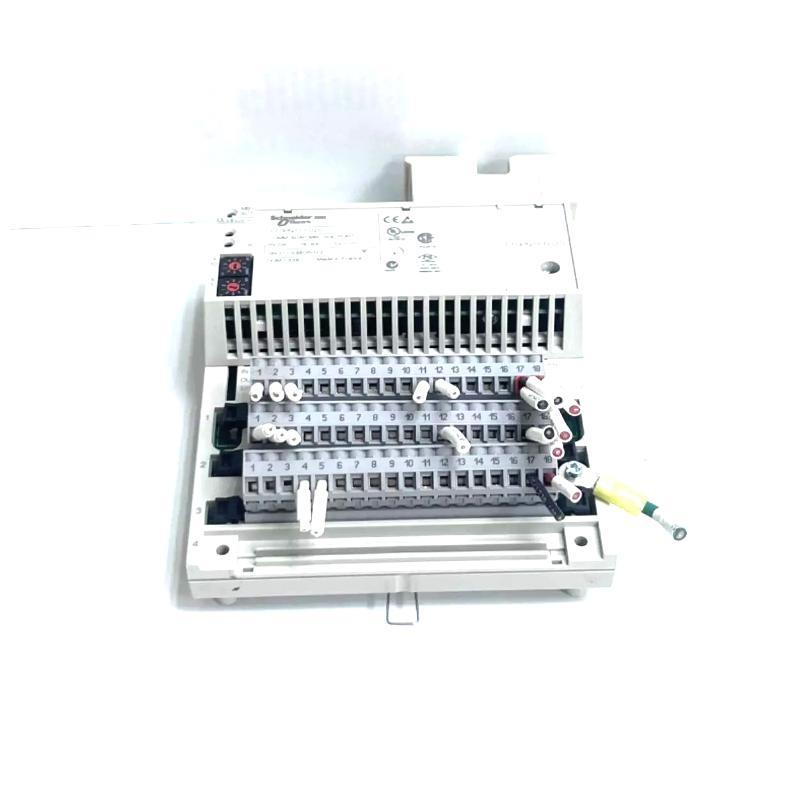

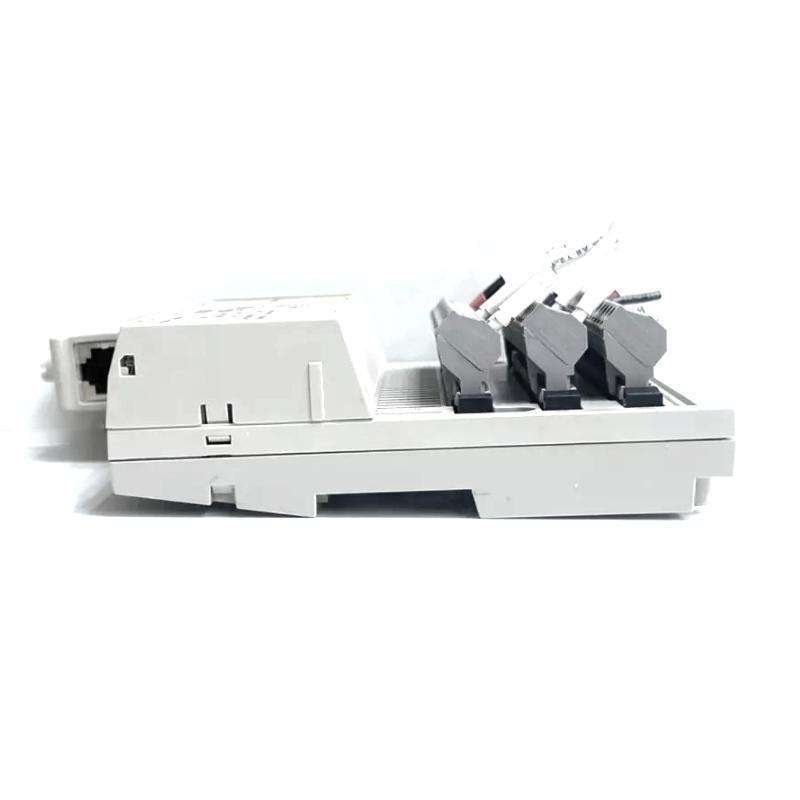

Schneider 170AEC92000 High Speed Counter Module Base Trusted supplier

Brand：Schneider

Item No.：170AEC92000

Product Type：High Speed Counter Module Base

Product Origin：France

Dimensions：47.5 × 125 × 141.5 mm

Weight：0.21 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original overseas introduction, testing assistance and explanation support, stable and reliable service

Flexible stocking of various models, support for quick response, welcome to cooperate and communicate!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ (Frequently Asked Questions)

What is the maximum counting frequency for the 170AEC92000 module?
The module supports a maximum counting frequency of 10 kHz for single-ended inputs and 200 kHz for differential inputs.

What is the response time for the output circuit?
The response time for the output circuit is less than 0.1 ms from state 0 to state 1, and also less than 0.1 ms from state 1 to state 0.

How many discrete inputs does the module have?
The 170AEC92000 module has 6 discrete inputs, arranged in two groups of three.

Can this module be used in extreme temperatures?
Yes, the module operates in temperatures ranging from 0°C to 60°C (32°F to 140°F) and can be stored in temperatures from -40°C to 85°C (-40°F to 185°F).

What certifications does the 170AEC92000 module have?
The module is certified by CE, CSA, and UL for safety and quality compliance.

How is the module connected electrically?
The module is equipped with two removable terminal blocks for easy electrical connection.

What is the operating altitude for the module?
The module can operate at altitudes up to 5000 meters (16404.2 feet).

What is the typical use case for this module?
The 170AEC92000 is typically used in material handling, simple machine control, and energy infrastructure applications where high-speed counting is required.
