ICS Triplex is a brand of Rockwell Automation Allen Bradley. Its Main modules are T8431, T8461, T3401, T8310, T8151B

Product Introduction

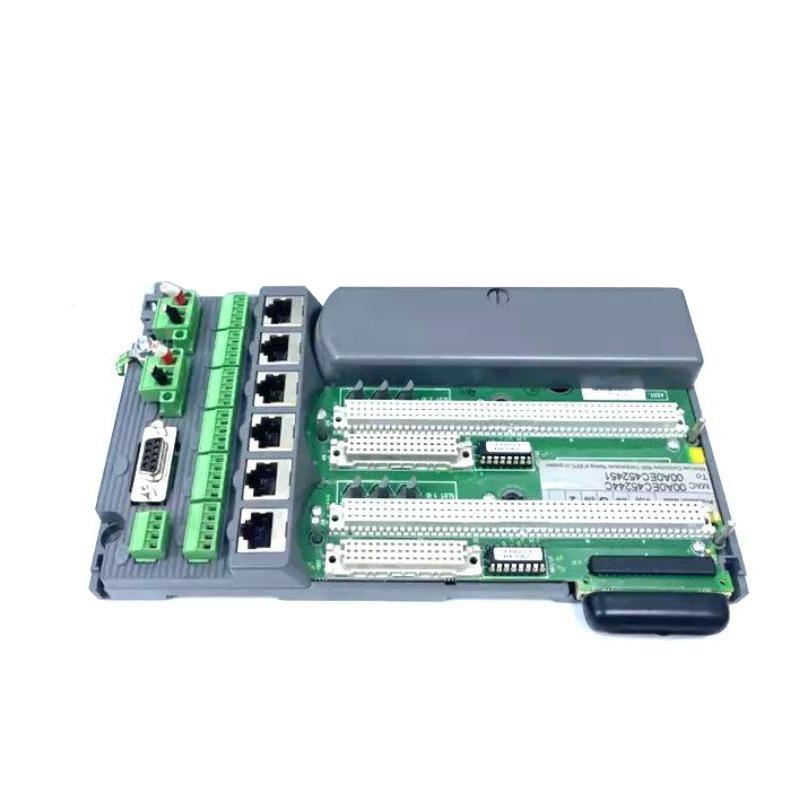

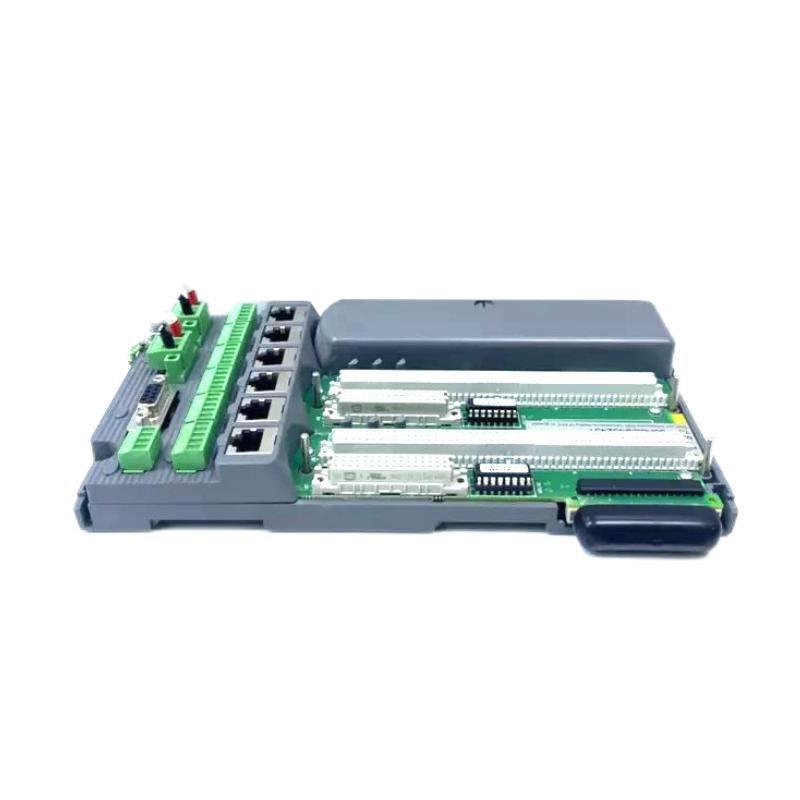

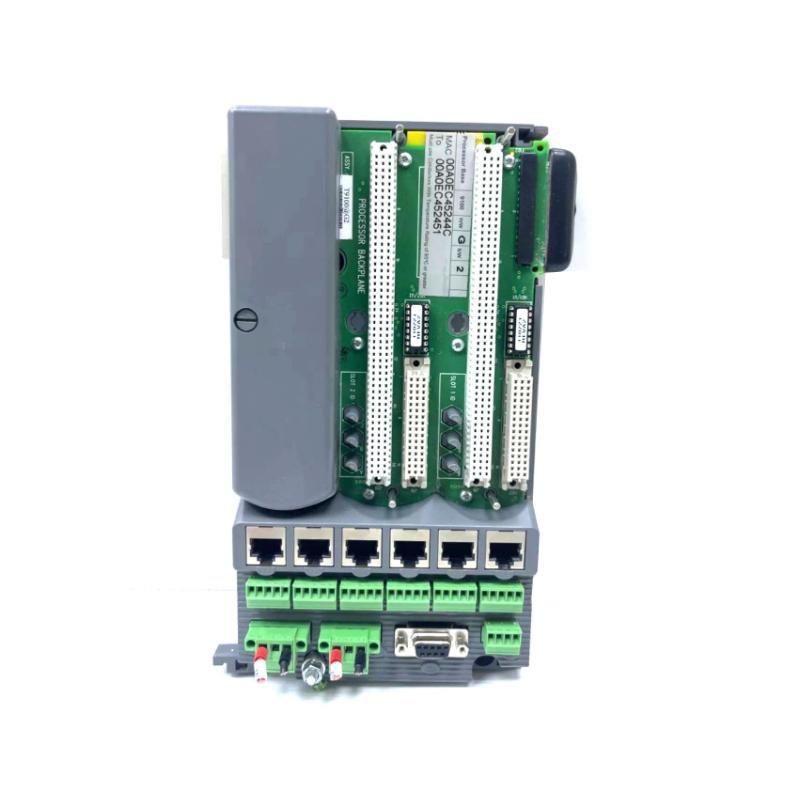

ICS Triplex T9100 Processor Backplane 12-Month Warranty

Brand：ICS Triplex

Item No.：T9100

Product Type：Processor Backplane

Product Origin：USA

Dimensions：233 × 126 × 18 mm

Weight：0.46 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Formal channels, complete test instructions, responsive service

Sufficient inventory of tens of thousands of models, fast delivery from stock, welcome to consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQs (Frequently Asked Questions)

What is the power requirement for the T9100 Processor Backplane?
The T9100 requires a 24Vdc power supply with a current rating of up to 10.4A depending on the module configuration.

How many modules can the T9100 Processor Backplane support?
The T9100 can support up to three I/O modules per base unit.

Can I expand my system using additional I/O units?
Yes, the T9100 supports expansion via the T9310 expansion cables, allowing the addition of more I/O base units.

Is the T9100 Processor Backplane suitable for hazardous environments?
Yes, the T9100 is certified for use in hazardous environments when properly installed and configured.

How can I replace a faulty processor module?
The processor module can be replaced without powering down the entire system. Simply unlock the module and insert the new one into the T9100 base unit.

Does the T9100 support redundant processors?
Yes, the T9100 supports dual or triple processor configurations for redundancy.

What is the maximum expansion length of the I/O buses?
The maximum length for the I/O buses is 8 meters when using expansion cables like the T9310.

How do I perform a firmware upgrade on the processor?
Firmware upgrades can be performed using the ControlFLASH software and require a connection to the processor module via Ethernet.
