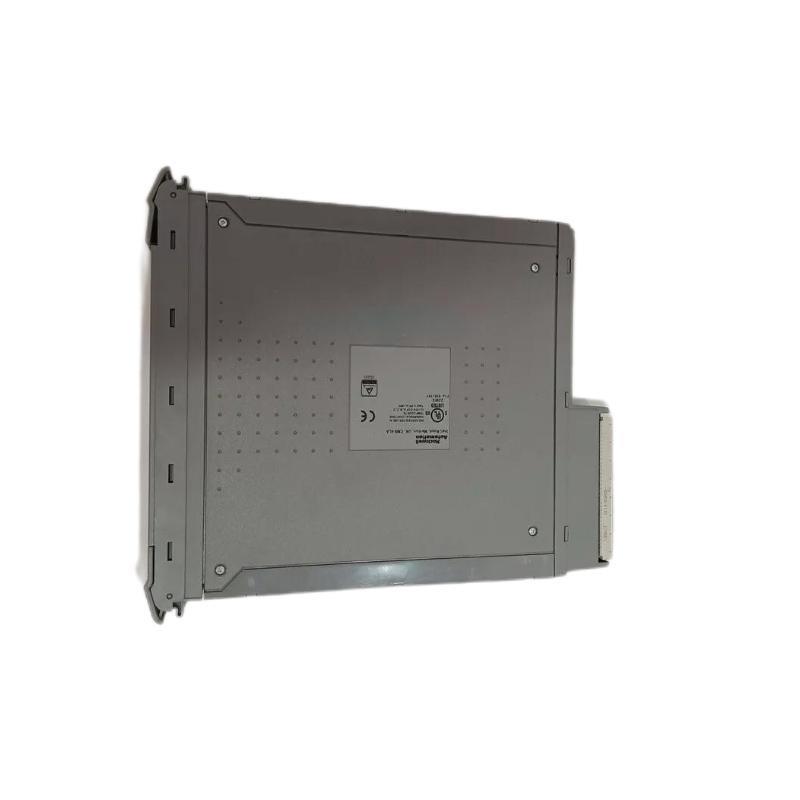

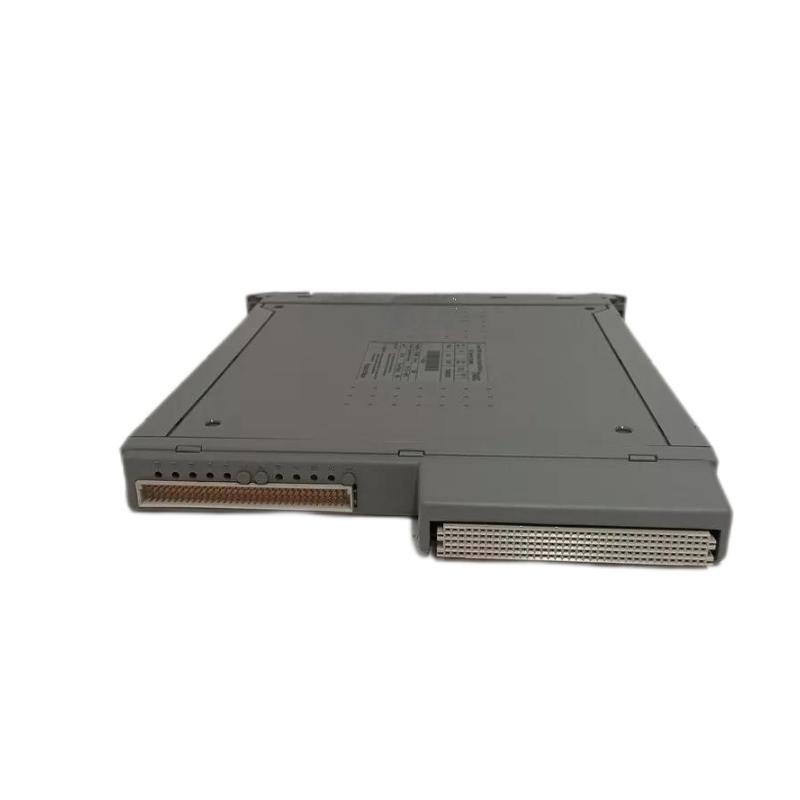

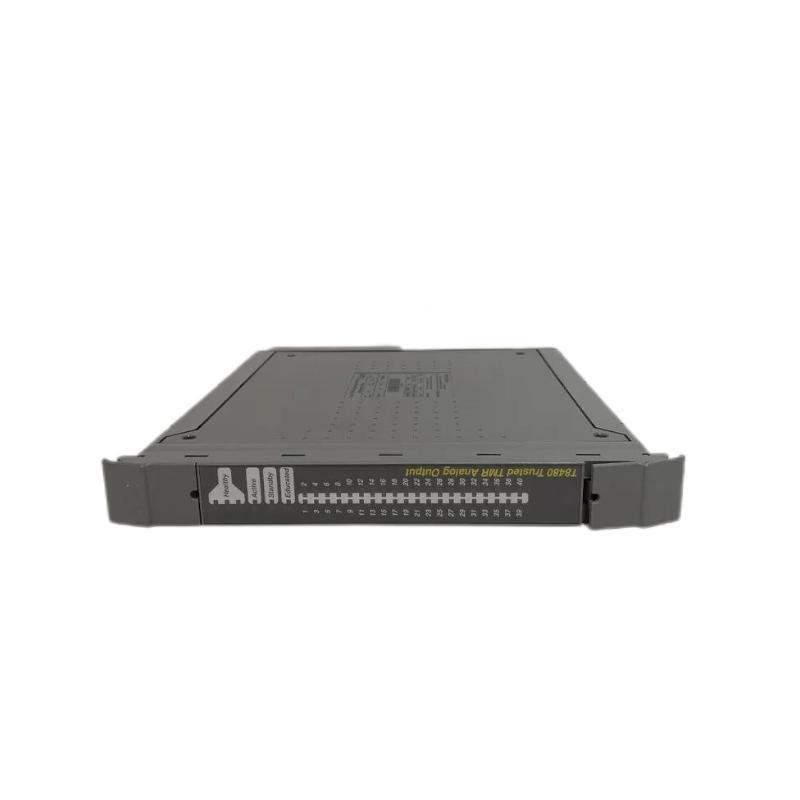

ICS Triplex T8480C Trusted TMR Analog Output Module Trusted supplier

Frequently Asked Questions (FAQ)

What is the maximum number of output channels supported by the T8480C module?
The T8480C module supports up to 40 output channels, each capable of delivering a 4-20 mA current signal.

Can the T8480C module be replaced while the system is running?
Yes, the T8480C module is hot-replaceable and can be replaced online using either the Companion Slot or SmartSlot configuration.

What is the isolation rating of the T8480C module?
The T8480C module features a 2500V impulse withstand opto-galvanic isolation barrier, ensuring safe operation in harsh environments.

How does the T8480C module detect field wiring faults?
The module automatically monitors the output channel current and voltage to detect open circuits, short circuits, and field wiring faults.

What is the calibration accuracy of the T8480C module?
The calibration accuracy is ±0.1% of full scale at +25°C, with an overall accuracy of ±0.25% of full scale from 0°C to +60°C.

Is the T8480C module TÜV certified?
Yes, the T8480C module is TÜV certified for non-interfering applications, ensuring compliance with safety standards.

What is the operating temperature range of the T8480C module?
The module operates reliably in temperatures ranging from 0°C to +60°C.

Can the T8480C module be used in safety-critical systems?
Yes, the T8480C module is designed for use in safety-critical systems, such as emergency shutdown (ESD) systems and fire and gas detection systems.

What is the weight of the T8480C module?
The T8480C module weighs 1.3 kg.

Does the T8480C module support Sequence of Events (SOE) reporting?
Yes, the module provides onboard SOE reporting with a resolution of 1 ms, allowing for detailed event logging and fault diagnosis.
