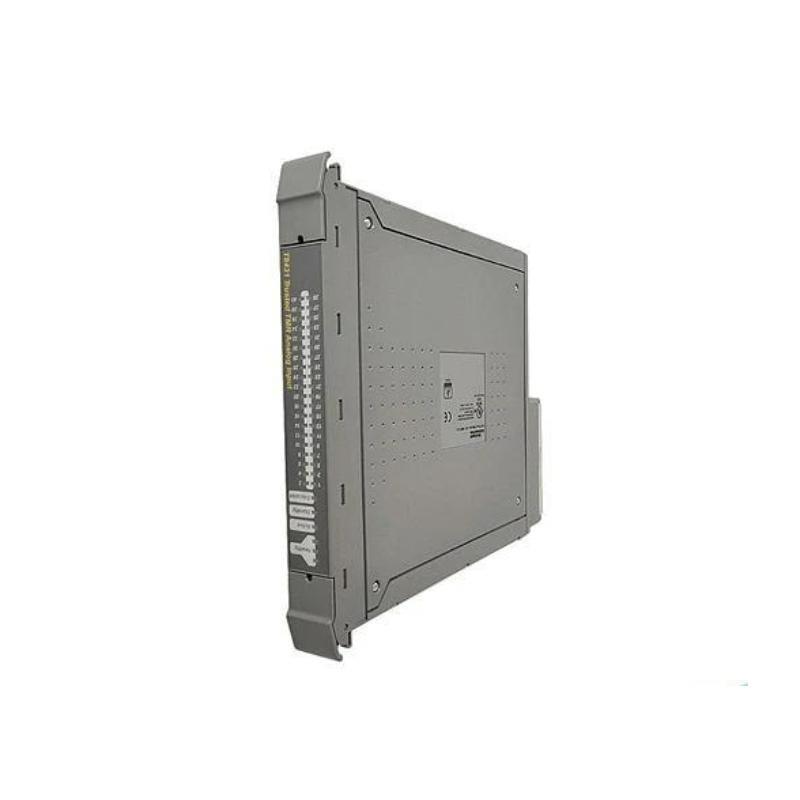

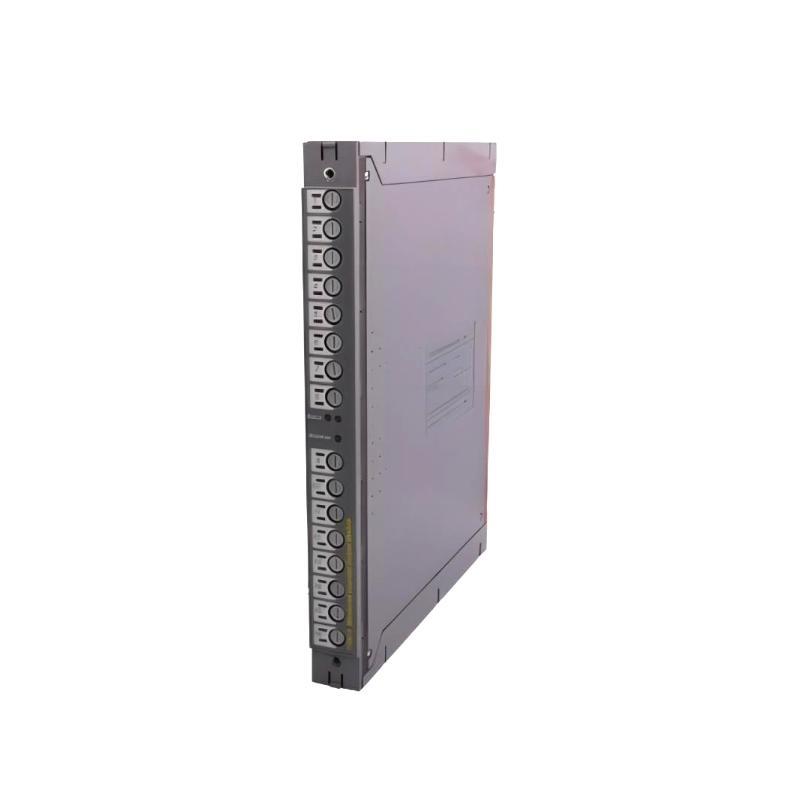

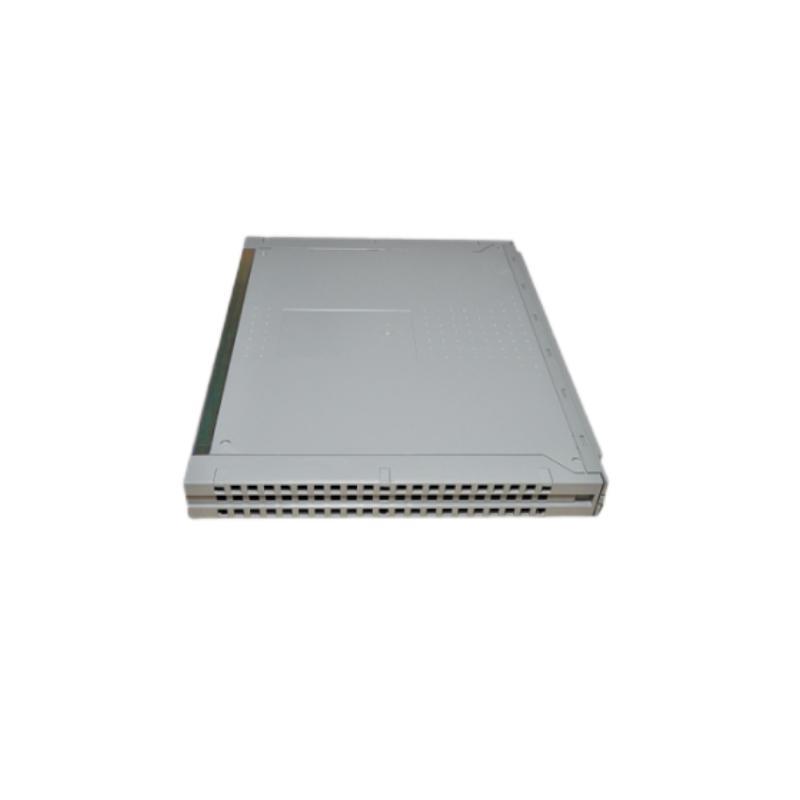

ICS Triplex T8431 Trusted TMR Analog Output Module 12-Month Warranty

Frequently Asked Questions (FAQ)

What is the purpose of the T8431 module?

The T8431 is a 40-channel Trusted TMR Analog Output Module, designed for high-integrity safety applications requiring fault tolerance and redundancy.

How does the T8431 module ensure fault tolerance?

It uses Triple Modular Redundancy (TMR), allowing it to continue functioning even if one part of the module fails.

Can the T8431 module be hot-swapped?

Yes, the module supports hot-swapping using the Companion Slot or SmartSlot, minimizing system downtime.

What type of signals does the T8431 module output?

It outputs 4-20mA analog signals, typically used for industrial control applications.

What industries commonly use the T8431 module?

It is widely used in oil & gas, power generation, pharmaceuticals, and aerospace for safety-critical control.

Does the module have built-in diagnostics?

Yes, it includes automatic line monitoring, fault detection, and onboard Sequence of Events (SOE) logging.

What are the power requirements for the T8431?

It requires 20V-32V DC backplane power and 18V-32V DC field supply power.

What is the accuracy of the analog output?

It has ±0.1% calibration accuracy at 25°C and ±0.25% accuracy over the full temperature range.

How is isolation handled in the module?

The module features 2500V impulse withstand isolation and is designed to separate power groups for enhanced safety.

What should I do if a fault occurs in the module?

The front panel LEDs will indicate a fault. The module can be replaced live using the SmartSlot or Companion Slot configuration.
