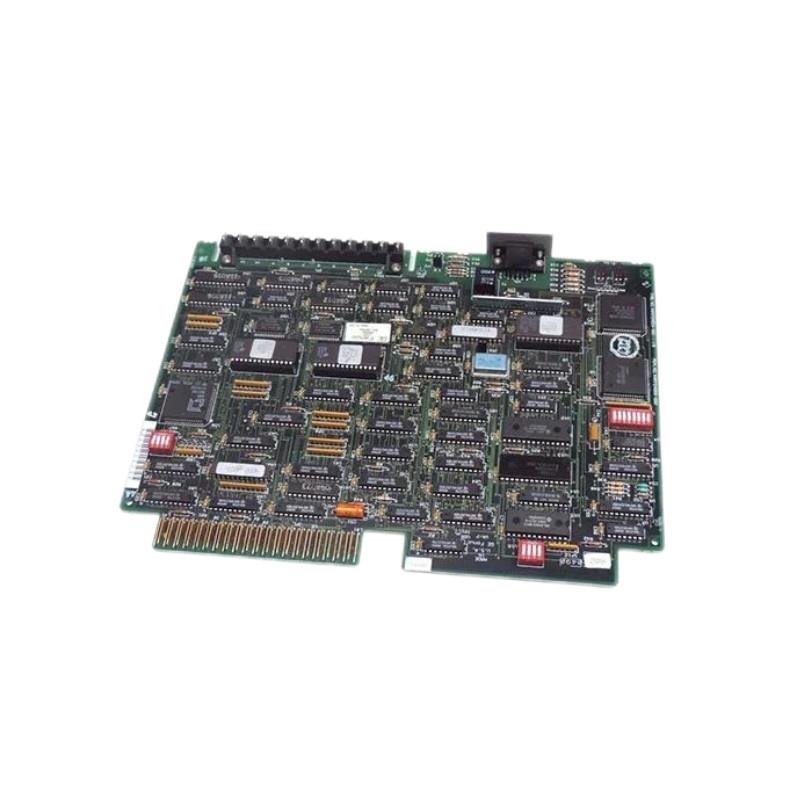

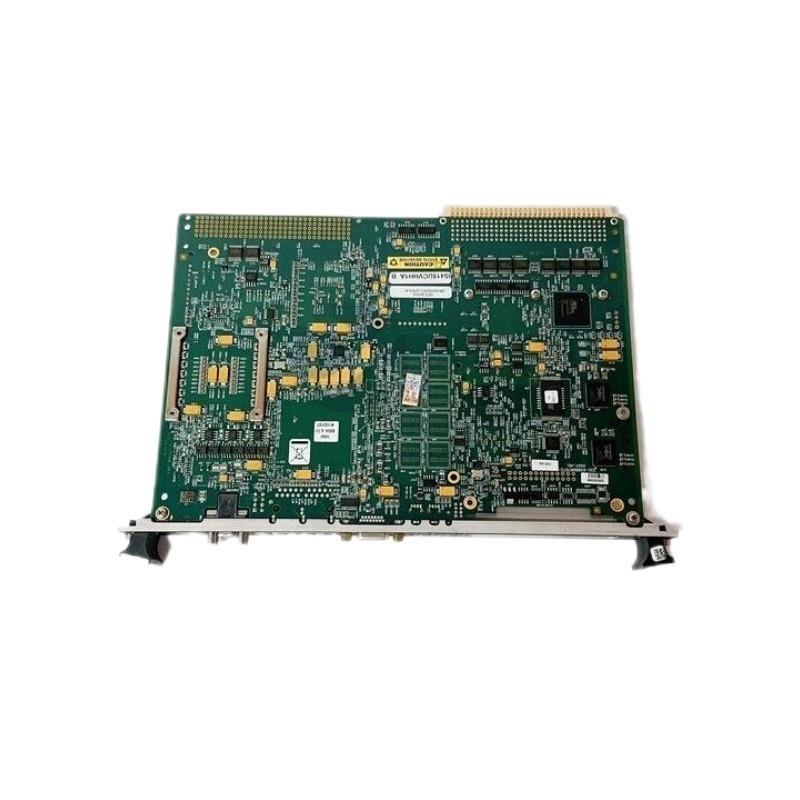

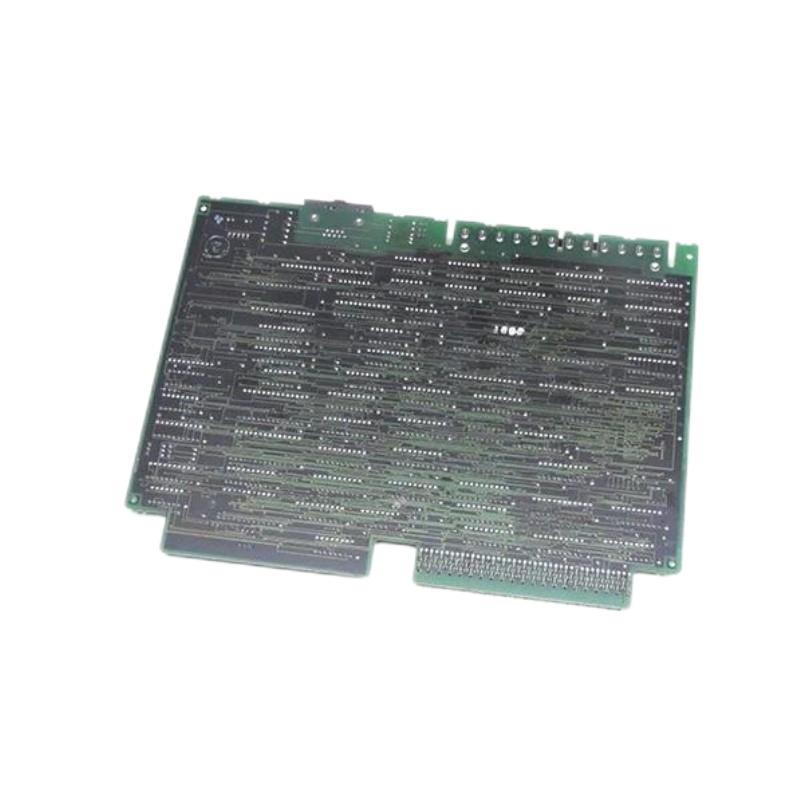

Name: GE IS415UCVHH1A Mark VIe Series Controller Board 30-Day Returns！
Brand: GE Fanuc PLC
SKU: 7923
Availability: InStock
Rating: 5.0 (1 reviews)

Product Details

GE Fanuc PLC system includes IC200, IC693, IC694, IC695, IC697, IC698, and Cards series IS200, IS215, DS200,DS3000/3800 and more.

Product Introduction

GE IS415UCVHH1A Mark VIe Series Controller Board 30-Day Returns！

Brand：GE Fanuc

Item No.：IS415UCVHH1A

Product Type：Controller Board

Product Origin：USA

Dimensions：86.36 x 161.8 mm

Weight：0.907 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Formal channels, complete testing instructions, and responsive services

Large stock, diverse series, and adaptable to different working conditions, welcome to consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What is the operating temperature range for the IS415UCVHH1A?
The IS415UCVHH1A operates within a temperature range of 0°C to 70°C.

What type of operating system does the IS415UCVHH1A use?
The IS415UCVHH1A uses the QNX operating system, which is a real-time, multitasking OS designed for industrial applications.

How many communication ports does the IS415UCVHH1A have?
The IS415UCVHH1A has three communication ports: two RS-232C ports (COM1 and COM2) and one Ethernet port.

What is the power supply requirement for the IS415UCVHH1A?
The IS415UCVHH1A requires a power supply of 200-250Vac.

What is the memory capacity of the IS415UCVHH1A?
The IS415UCVHH1A has a memory capacity of 128 MB SDRAM.

Can the IS415UCVHH1A be used in TMR systems?
Yes, the IS415UCVHH1A can be used in TMR (Triple Modular Redundancy) systems, where it handles inputs from input boards, singular inputs from simplex boards, computed outputs, and internal state values.

What is the clock synchronization capability of the IS415UCVHH1A?
The IS415UCVHH1A can synchronize to the VCMI communication board’s clock within 100 microseconds using an external clock interrupt.

What are the dimensions and weight of the IS415UCVHH1A?
The IS415UCVHH1A has dimensions of 86.36 x 161.8 mm and weighs 0.907 kg.

What type of microprocessor does the IS415UCVHH1A use?
The IS415UCVHH1A uses an Intel Ultra Low Voltage Celeron 650 MHz microprocessor.

What is the manual reference for the IS415UCVHH1A?
The manual reference for the IS415UCVHH1A is GEH-6421 M.
