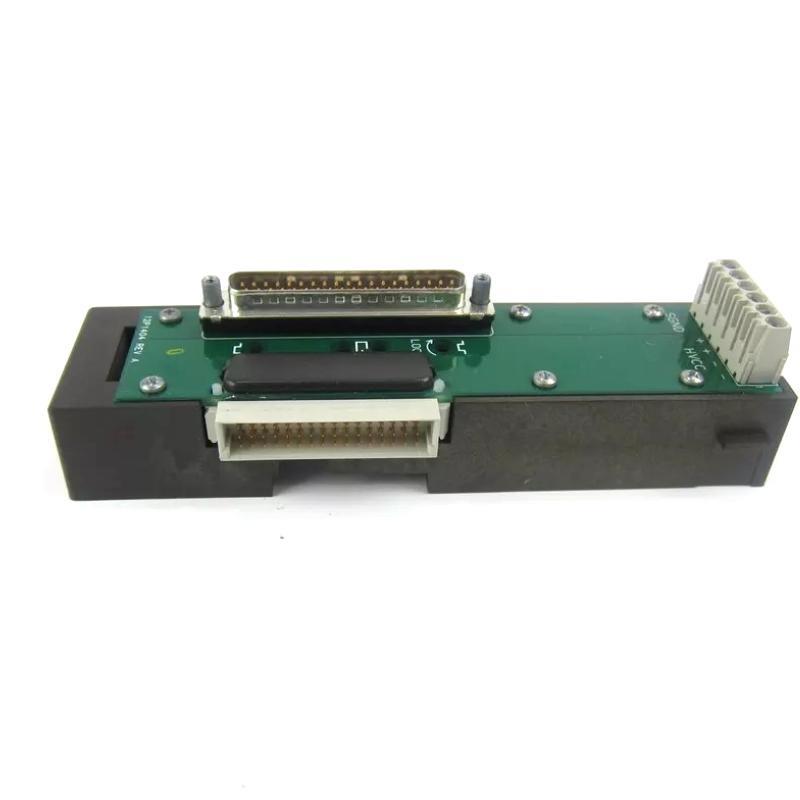

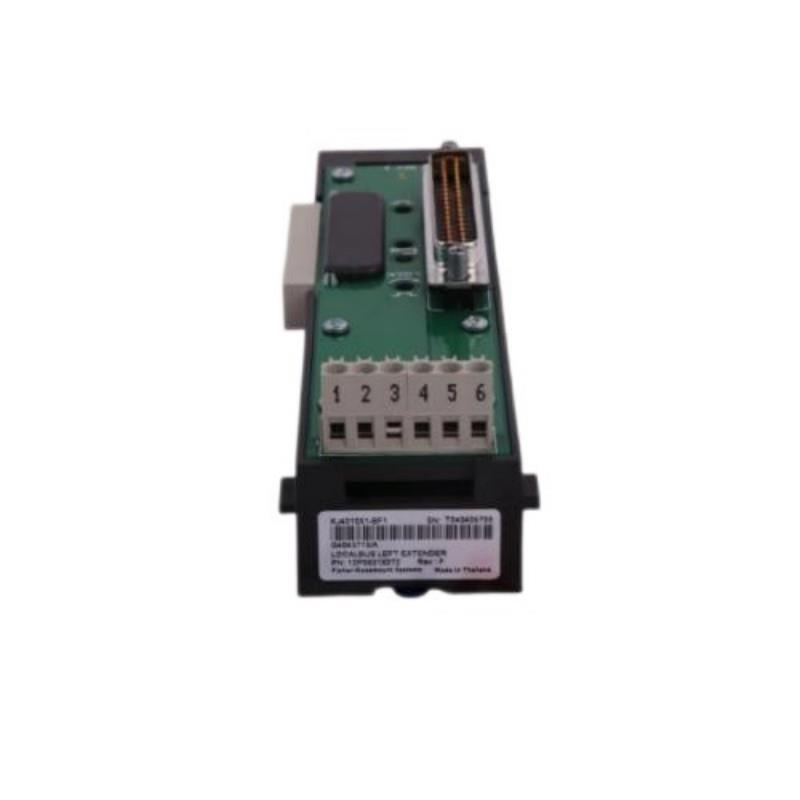

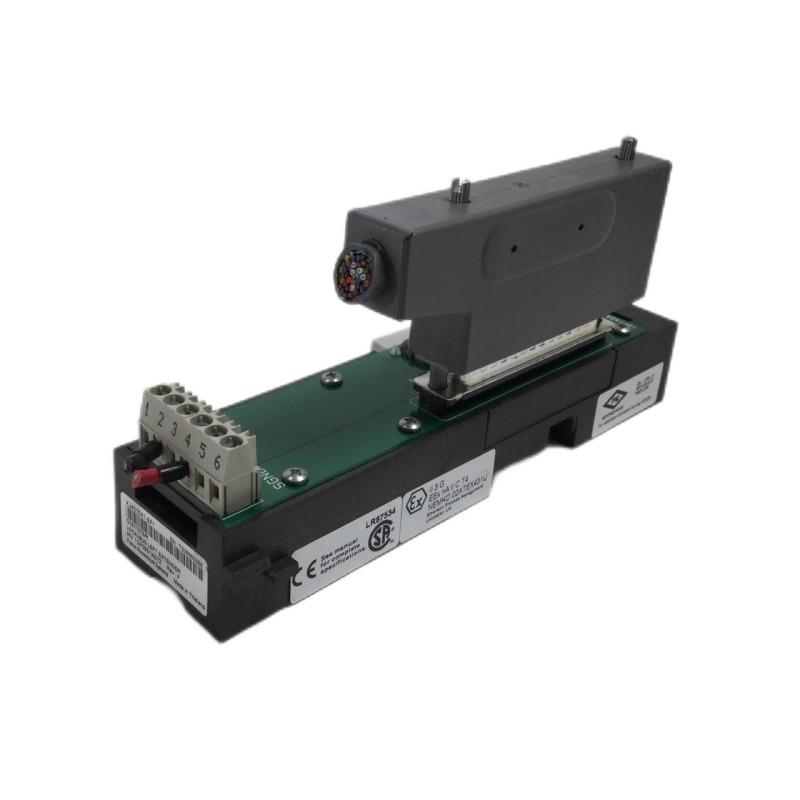

Emerson KJ4010X1-BF1 12P0831X072 DeltaV systems Left LocalBus Extender Cable Assembly Original

Frequently Asked Questions (FAQ)

What is the primary function of the KJ4010X1-BF1 Left LocalBus Extender Cable Assembly?
The primary function is to extend the LocalBus in DeltaV systems, ensuring reliable communication and power distribution in hazardous environments.

Can the KJ4010X1-BF1 be used in non-hazardous areas?
Yes, it can be used in non-hazardous areas, but it is specifically designed for hazardous environments.

What are the environmental specifications for the KJ4010X1-BF1?
It operates in ambient temperatures from -40 to 70°C, with resistance to shock, vibration, and airborne contaminants.

Is the KJ4010X1-BF1 compliant with ATEX standards?
Yes, it is certified as EEx nA IIC T4, making it suitable for use in explosive atmospheres.

What is the maximum length for interconnecting cables?
No combination of I/O carriers and LocalBus Extenders must exceed a length of 6.5 meters.

Can the KJ4010X1-BF1 be disassembled for maintenance?
No, it contains no user-serviceable parts and should not be disassembled.

What is the IP rating of the KJ4010X1-BF1?
It has an IP 20 rating, providing basic protection against solid objects.

What is the power specification for the LocalBus?
The LocalBus power is 12 VDC at 8 A.

Can the KJ4010X1-BF1 be used in high-humidity environments?
Yes, it can operate in relative humidity levels from 5 to 95% non-condensing.

What are the dimensions and weight of the KJ4010X1-BF1?
The dimensions are 145 x 105 x 60 mm, and it weighs 0.5 kg.
