Honeywell Experion PKS ( C200, C300 ) is one of the most important DCS system. Original New Control processor, Control Interface, Redundancy Module, I/O Link Interface Module, PM I/O, FTA, FSC Module, UCN Board are provided

Product Introduction

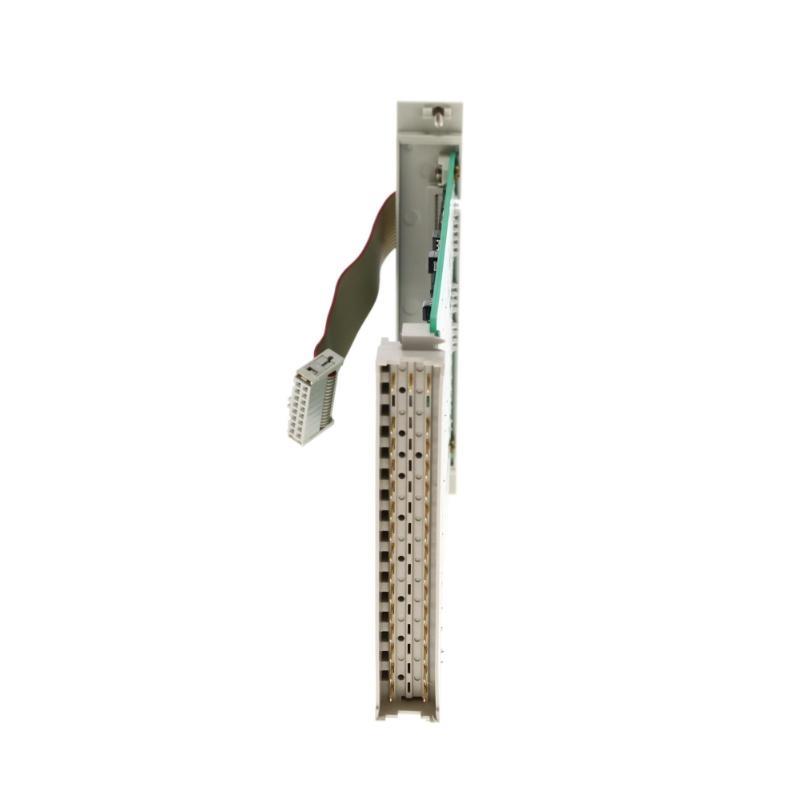

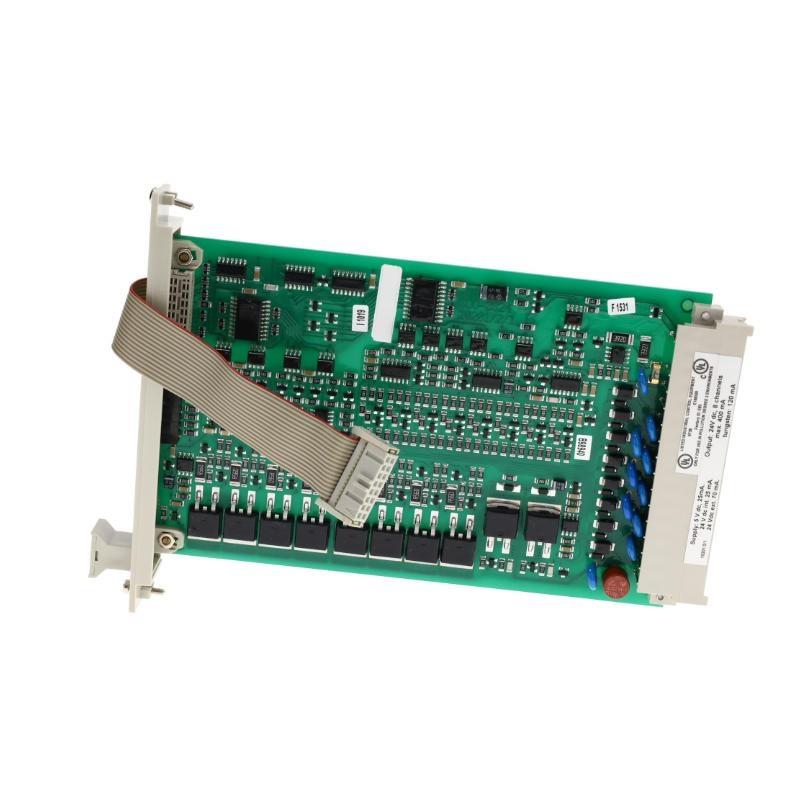

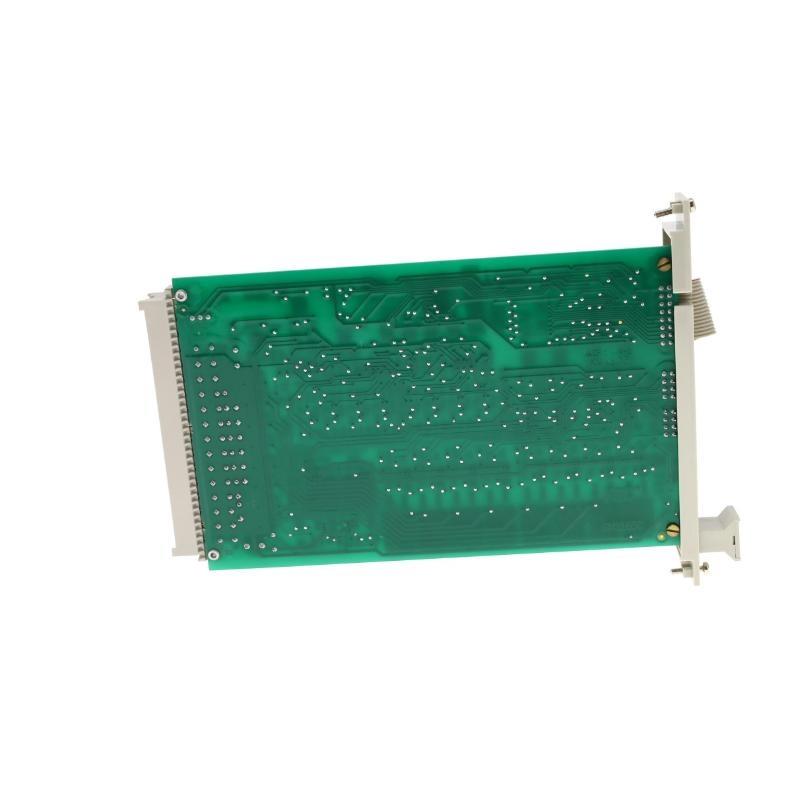

Honeywell 10201/2/1 9910150087 Fail-safe Digital Output Module 30-Day Returns！

Brand：Honeywell

Item No.：10201/2/1 9910150087

Product Type：Fail-safe Digital Output Module

Product Origin：USA

Dimensions：30 x 200 x 150 mm

Weight：0.15 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original import channel source, support for testing instructions, worry-free after-sales

A wide range of spot models supports fast docking of procurement needs, welcome to inquire for details!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Product FAQs (Presented in QA Format)

What is the maximum current for each output channel on the 10201/2/1 module?

The maximum current for each output channel is 550 mA.

Can this module handle inductive loads like solenoids?

Yes, the module can handle inductive loads like solenoids, and it includes suppression diodes on each output to protect against voltage spikes.

What is the maximum lamp load the module can support?

The maximum lamp load the module can support is 120 mA (2.9 W).

Is this module tested for fail-safe applications?

Yes, the module is fully tested for fail-safe applications, including the ability to de-energize and handle cross-talk between outputs.

What is the voltage drop at 500 mA for this module?

The voltage drop at 500 mA is less than 2.0 Vdc.

What certifications does the Honeywell 10201/2/1 module have?

The module is certified with CE, TüV, and UL approvals.

What are the power requirements for this module?

The power requirements are 5 Vdc 25 mA, 24 Vdc internal 25 mA, and 24 Vdc external 70 mA (without output load).

What is the space requirement for mounting this module?

The module requires 4 TE, 3 HE, or 4 HP, 3U of space.

How is this module protected from inductive load spikes?

Each output channel has an integrated suppression diode to protect the module from voltage spikes caused by inductive loads.

What are the dimensions and weight of this module?

The module’s dimensions are 30 x 200 x 150 mm, and it weighs 0.15 kg.
