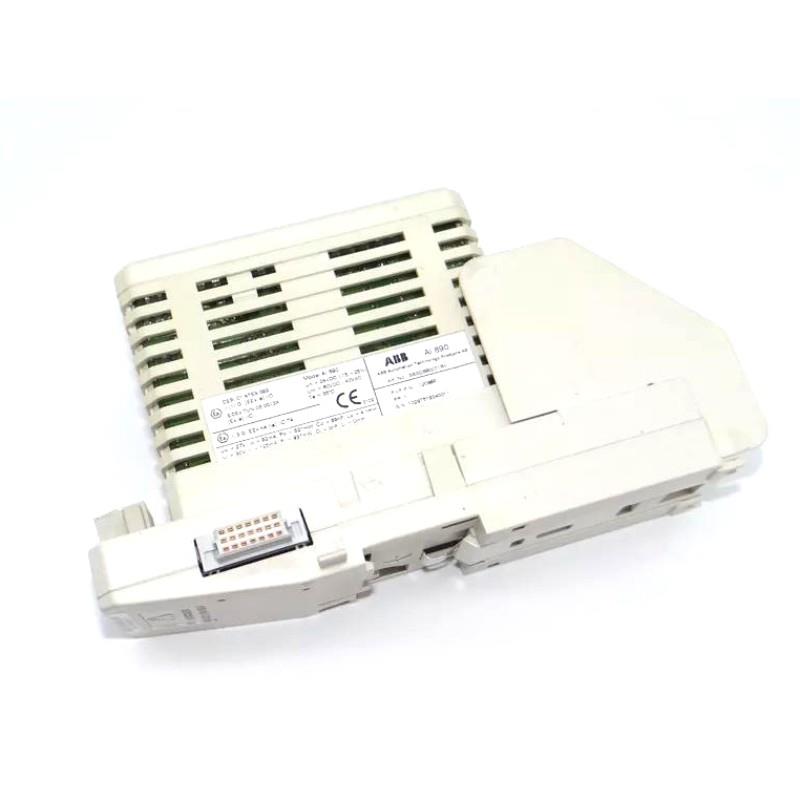

Name: ABB AI890 3BSC690071R1 S800 I/O Systems Analog Input Module 30-Day Returns！
Brand: ABB PLC
SKU: 7968
Availability: InStock
Rating: 5.0 (1 reviews)

Product Details

ABB PLC provide various solution for industries and applications, include water, building infrastructure, renewable energy, machinery automation, data centers, marine and more.

ABB DCS 800xA System/S800

ABB DCS 800xA System/S900

ABB Advant OCS/800XA

ABB H&B Freelance 2000

ABB BAILEY-INFI90/Bailey Net 90

ABB DSQC Robot Parts

ABB PLC Cards and Boards

Product Introduction

ABB AI890 3BSC690071R1 S800 I/O Systems Analog Input Module 30-Day Returns！

Brand：ABB

Item No.：AI890 3BSC690071R1

Product Type：Analog Input Module

Product Origin：Sweden (SE)

Dimensions：45 x 102 x 119 mm

Weight：0.2 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Formal channels, complete testing instructions, and responsive services

Large stock, diverse series, and adaptable to different working conditions, welcome to consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQs (QA Format):

What is the input range of the AI890 module?

The AI890 module supports 0…20 mA and 4…20 mA unipolar, single-ended inputs.

How many channels does the AI890 module have?

The AI890 module has 8 input channels.

Does the AI890 module provide intrinsic safety protection?

Yes, the AI890 module includes intrinsic safety protection for each channel, ensuring it can be safely used in hazardous areas.

What is the voltage drop per channel for current input?

The typical voltage drop for current input is 3 V, including PTC.

What is the overload protection for the AI890 module?

The module is limited to 23 mA in overload conditions.

What power supply does the AI890 module require?

The module requires a 24 V power supply.

Can the AI890 module be used with Ex-certified transmitters?

Yes, the module can power and monitor Ex-certified two-wire process transmitters.

What are the dimensions and weight of the AI890 module?

The AI890 module measures 45 x 102 x 119 mm and weighs 0.2 kg.

Is the AI890 module compatible with TU890 and TU891 Compact MTU?

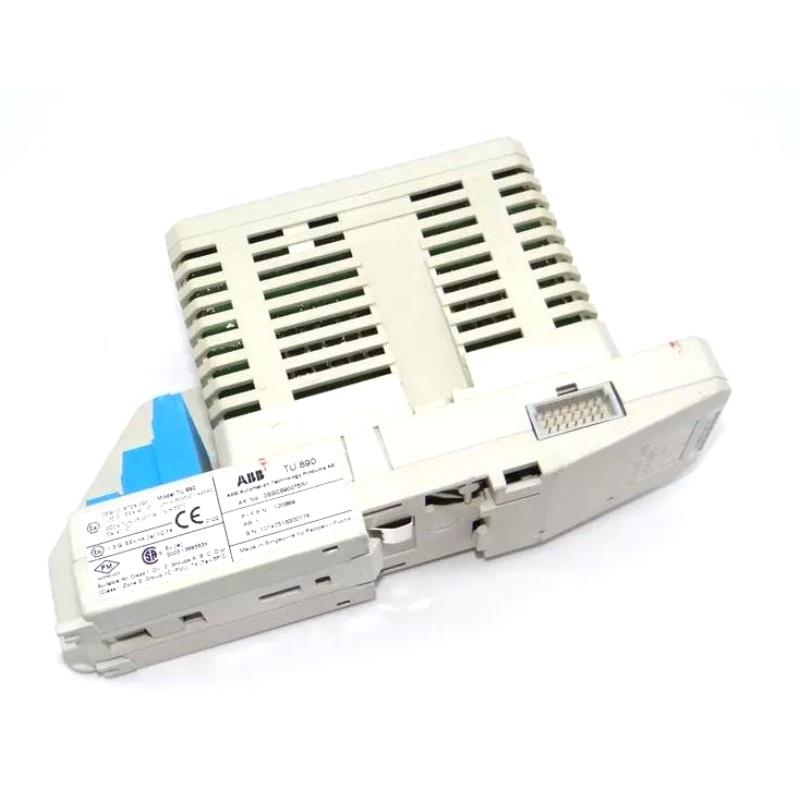

Yes, the AI890 module is compatible with TU890 (for Ex applications) and TU891 (for non-Ex applications).

How does the AI890 provide isolation between channels?

The AI890 module isolates the 8 channels from each other and from the ModuleBus and power supply, ensuring reliable operation and preventing interference.
