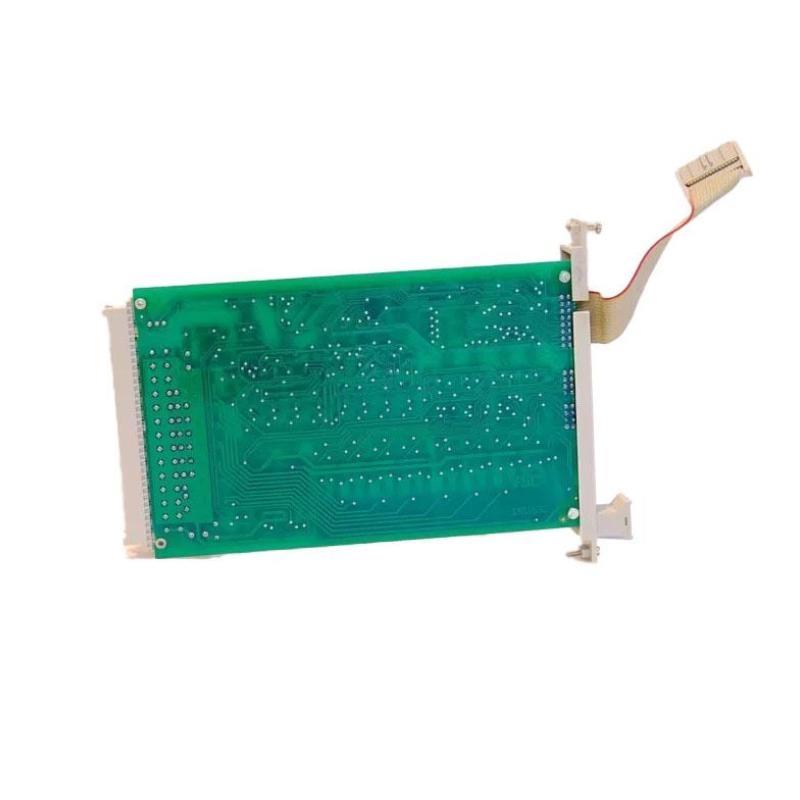

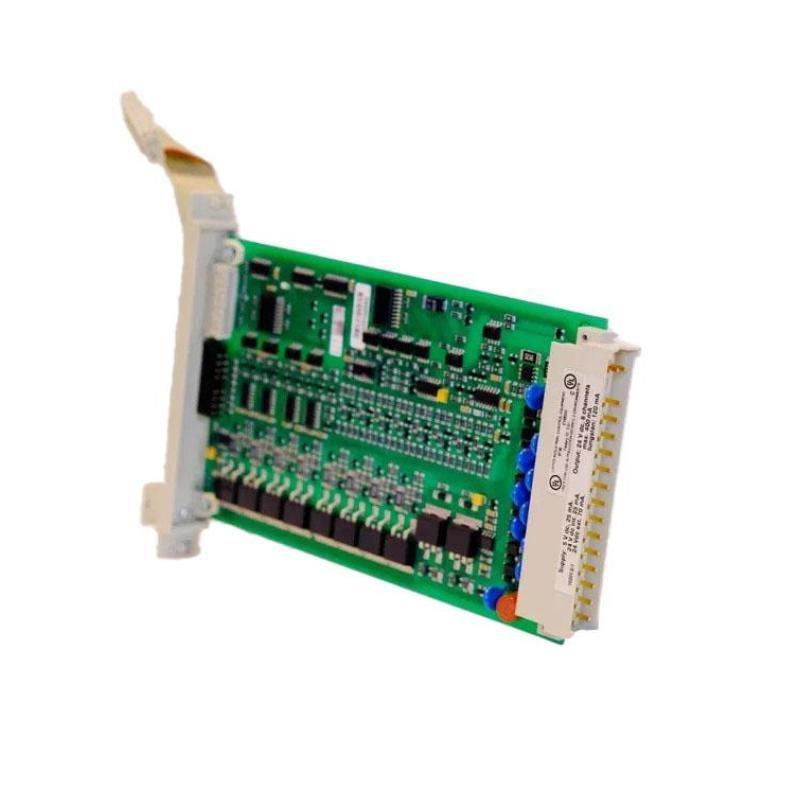

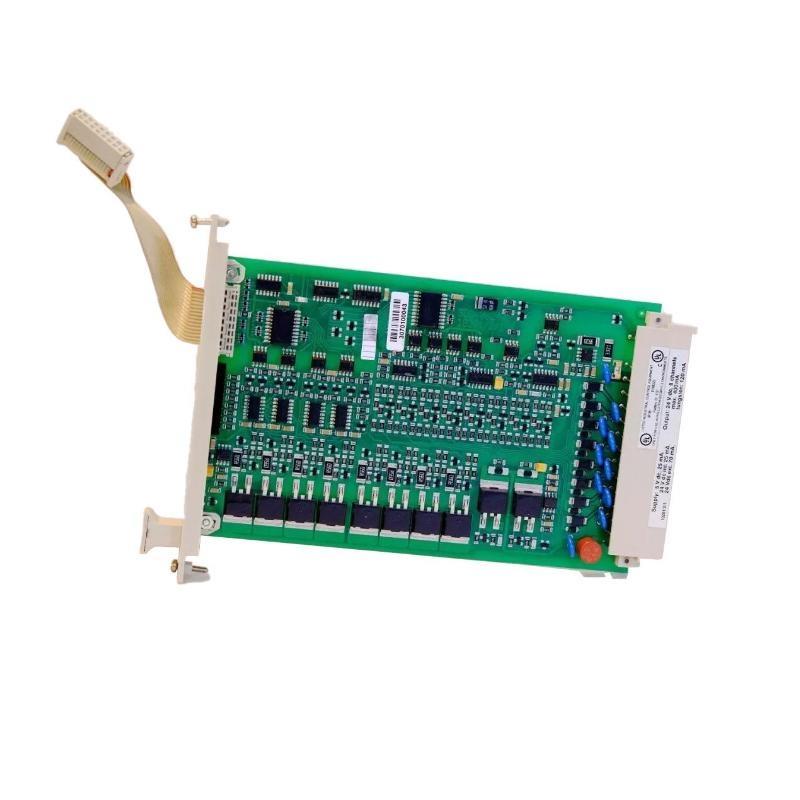

Honeywell 10201/2/1 9910160020 Fail-safe Digital Output Module Unbelievable Prices!

FAQs (Frequently Asked Questions)

What is the primary application of the Honeywell 10201/2/1 Fail-safe Digital Output Module?
This module is primarily used in industrial automation and process control systems where fail-safe functionality is critical for safety and reliability.

How does the 10201/2/1 module ensure safe operation for inductive loads?
The module includes suppression diodes on each output, which protect the system from voltage spikes caused by inductive loads like solenoids.

What is the maximum current that can be drawn by the outputs?
Each output channel can supply a maximum current of 550 mA.

What is the typical voltage drop at the maximum current?
The voltage drop is less than 2.0 Vdc at 500 mA.

Can this module be used in safety-critical environments?
Yes, the Honeywell 10201/2/1 module is designed and tested for fail-safe applications, making it suitable for safety-critical environments.

What types of loads can be controlled with this module?
It can control both resistive loads (e.g., lamps) and inductive loads (e.g., solenoids).

What are the space requirements for installing this module?
The module requires 4 TE and 3 HE space in the rack, which equals 4 HP and 3U.

What are the module’s power consumption requirements?
The module requires 5 Vdc (25 mA), 24 Vdc internal (25 mA), and 24 Vdc external (70 mA, without output load).

Is this module UL approved?
Yes, it has UL approval, along with CE and TüV certifications.

What are the dimensions and weight of this module?
The module measures 30 x 200 x 150 mm and weighs 0.15 kg.
