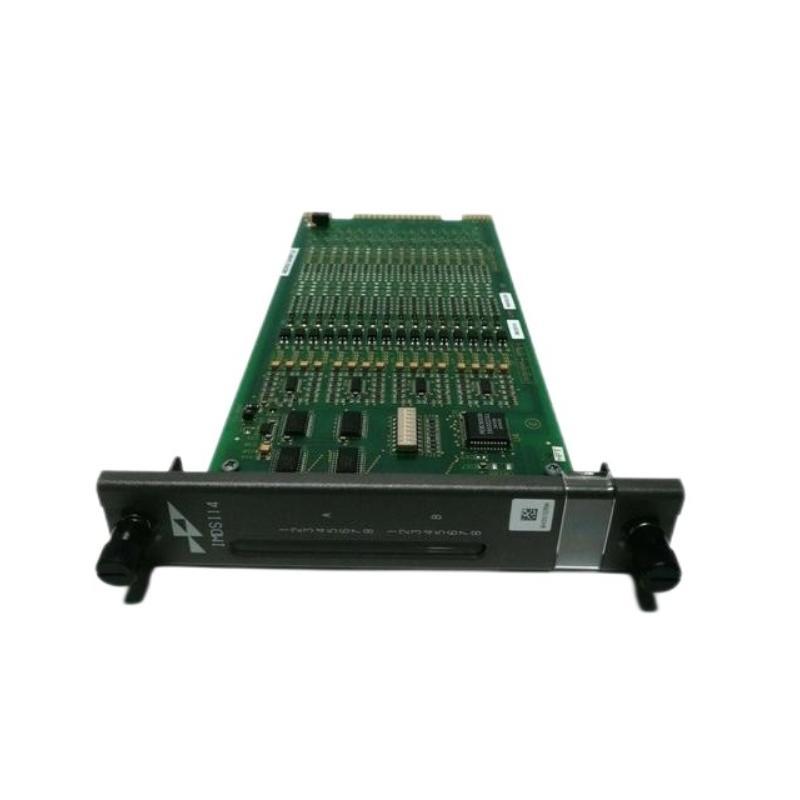

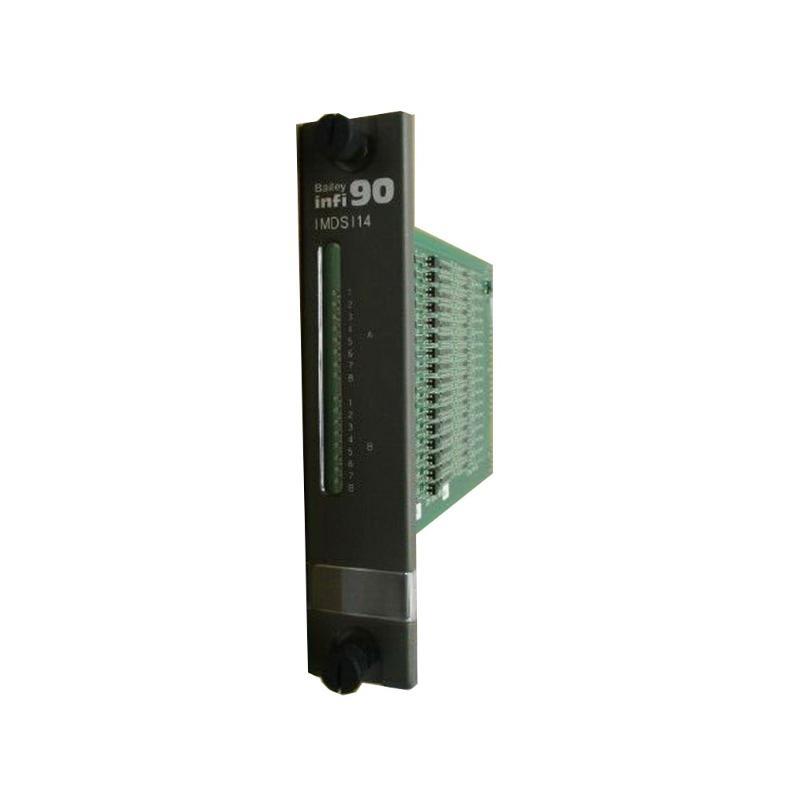

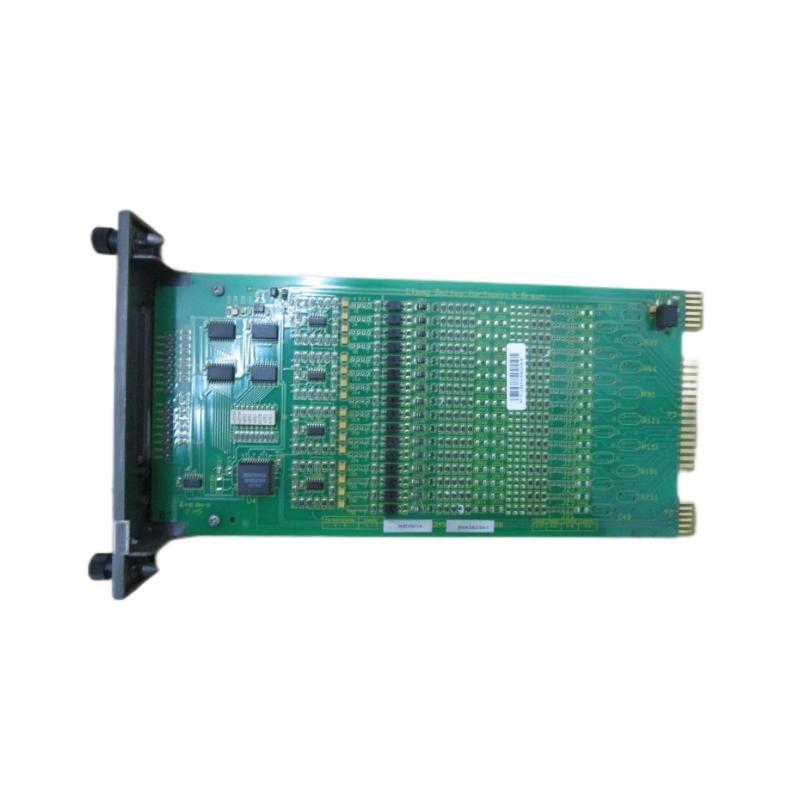

ABB Bailey IMDSI14 Infi 90 Digital Input Module Original

Frequently Asked Questions (FAQ)

What is the primary function of the ABB Bailey IMDSI14 module?
The IMDSI14 is a digital input module designed to acquire and process signals from field devices in an ABB Bailey Infi 90 Distributed Control System (DCS).

How many input channels does the IMDSI14 module have?
The module has 16 digital input channels, allowing it to monitor multiple field signals simultaneously.

What is the input voltage range supported by the IMDSI14?
The module supports 24V DC and 120V AC digital input signals.

Does the IMDSI14 module support redundant configurations?
Yes, it supports redundant setups to enhance system reliability and minimize downtime in critical applications.

What is the typical response time of the IMDSI14?
The response time of the IMDSI14 is less than 5 milliseconds, ensuring fast data acquisition.

Can the IMDSI14 operate in extreme environmental conditions?
Yes, the module operates within a temperature range of -20°C to +70°C and a humidity range of 5% to 95% (non-condensing), making it suitable for harsh industrial environments.

Does the IMDSI14 module have built-in diagnostics?
Yes, it features self-diagnostic capabilities to monitor its operational status and detect potential faults.

What communication protocol does the IMDSI14 use?
The module communicates via the Infi 90 network, ensuring seamless integration with ABB Bailey DCS.

What is the physical size and weight of the IMDSI14 module?
The dimensions of the module are 120 x 80 x 40 mm, and it weighs 0.5 kg.

How does the IMDSI14 enhance system reliability?
The module enhances reliability through redundancy support, fast response time, built-in diagnostics, and robust design, ensuring stable operation in industrial automation systems.
