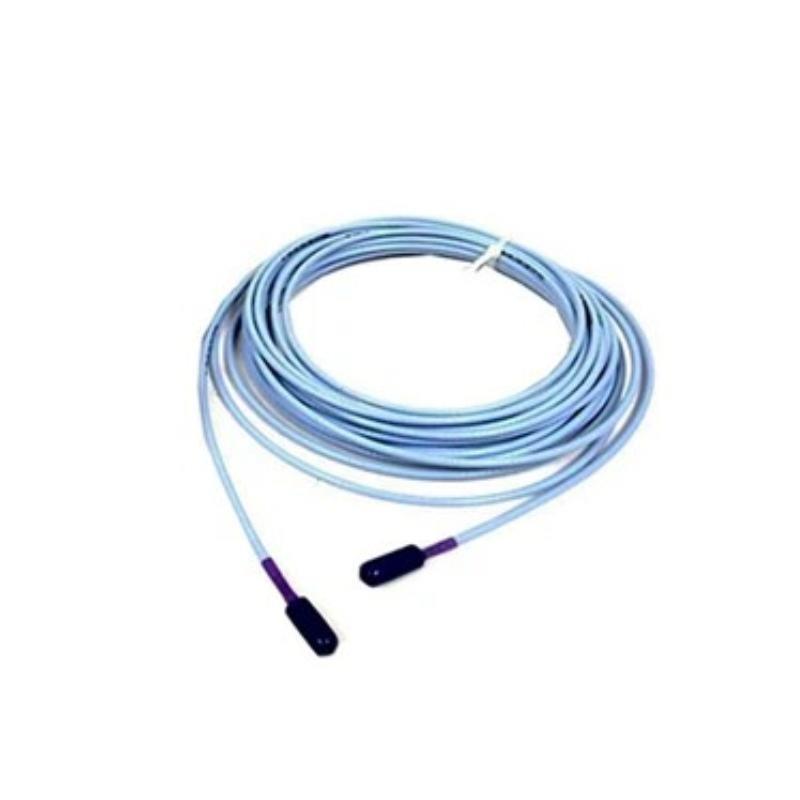

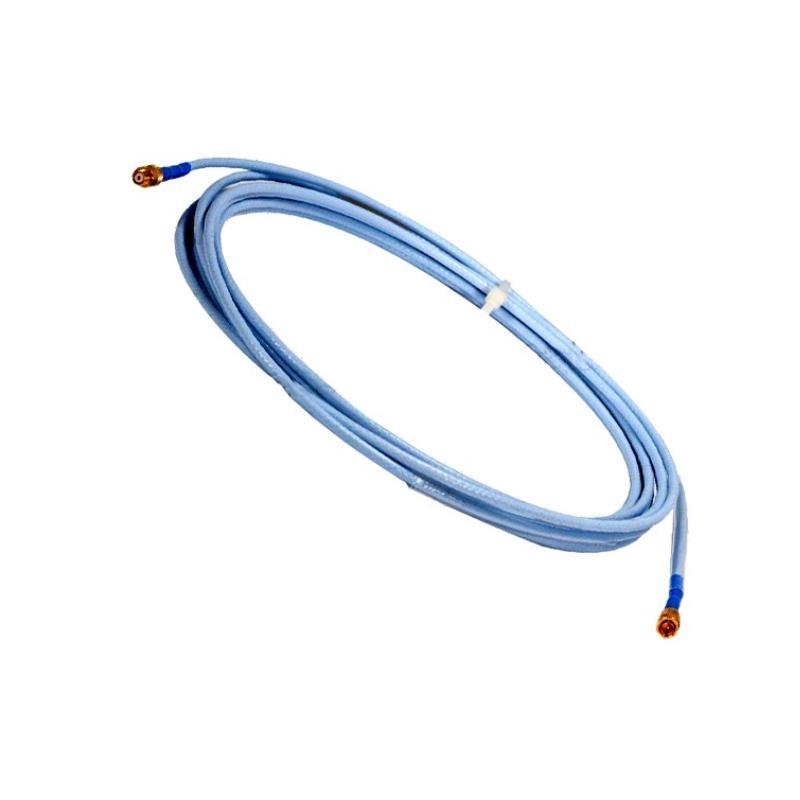

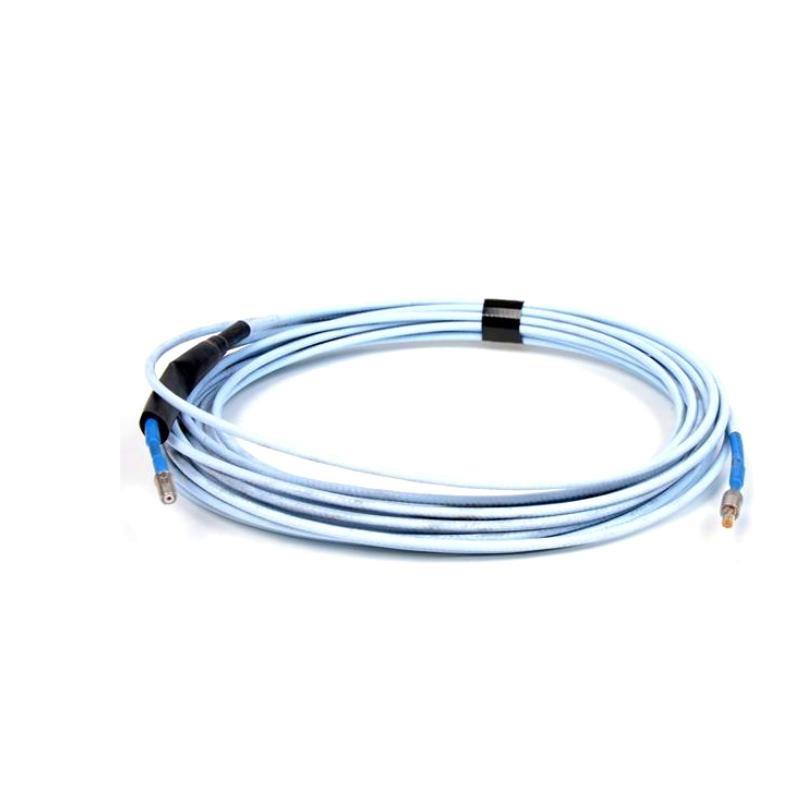

Bently Nevada 330130-085-02-CN 3300 XL Standard Extension Cable Trusted supplier

FAQ

What is the purpose of the 330130‑085‑02‑CN extension cable?
It extends the connection between a 3300 XL proximity sensor or Proximitor probe and the monitoring system, allowing flexible placement in industrial machinery monitoring.

What does “330130‑085‑02‑CN” mean?
“085” indicates the cable length of 8.5 meters, “02” denotes a standard extension cable with connector protectors, and “CN” signifies country‑specific certifications, typically for hazardous areas.

What type of cable construction does this model use?
It uses a 75 Ω triaxial cable with FEP insulation and connector protectors to maintain signal quality and protect the connection points.

What electrical performance can be expected from this cable?
The cable has a typical capacitance of around 69.9 pF per meter and an output resistance of 50 Ω, supporting accurate and reliable signal transmission.

What voltage range does this cable support?
It is designed to operate with a DC supply in the range of approximately -17.5 Vdc to -26 Vdc in non‑incendive industrial systems.

Is this cable suitable for use in hazardous environments?
Yes, with the “CN” designation it includes country‑specific hazardous area certifications that make it appropriate for use where such approvals are required.

What should installers know about the physical size and weight?
The cable is 8.5 meters long and weighs approximately 0.4 kg. Installers should plan routing and support accordingly.

What temperature conditions can this cable withstand?
It can operate in typical industrial temperature ranges from about -40 °C up to +125 °C.
