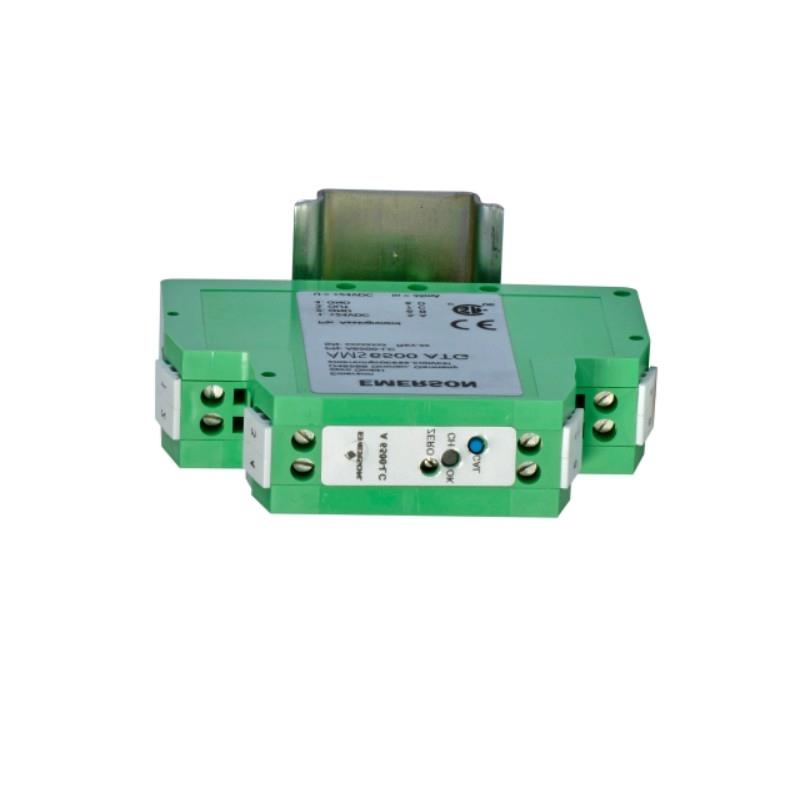

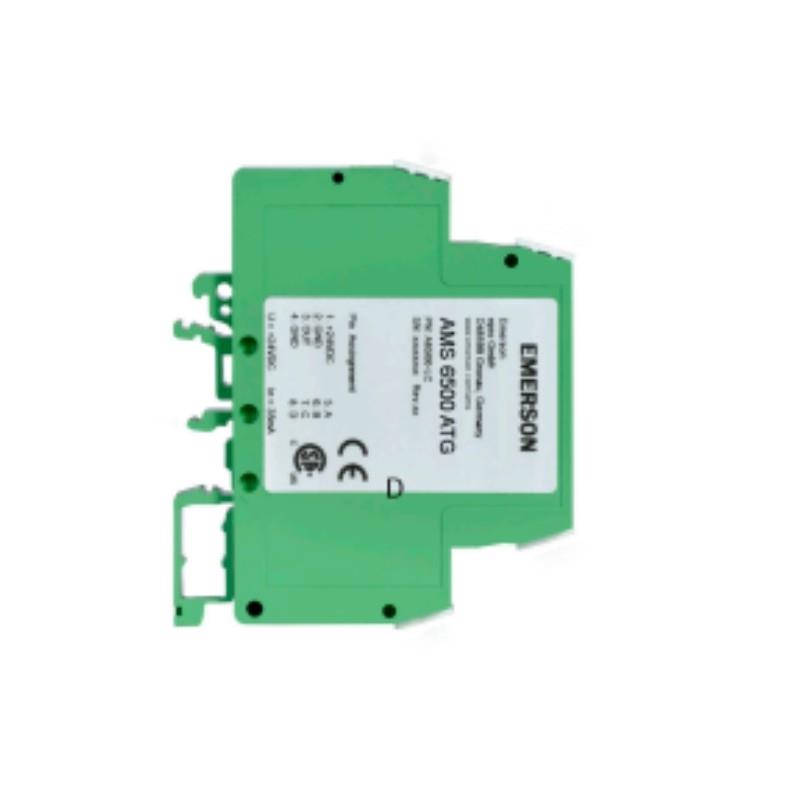

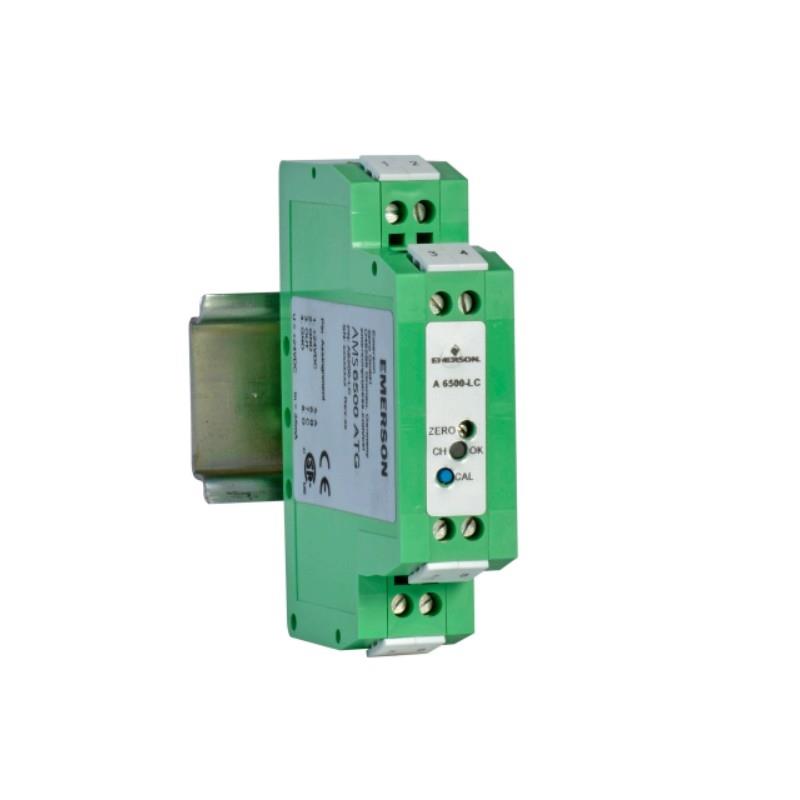

Emerson A6500-LC Machinery Health Sensor LVDT Converter 30-Day Returns！

Frequently Asked Questions (FAQ)

What type of sensors can be connected to the A6500-LC?
The A6500-LC supports inductive half-bridge sensors and LVDT sensors, including the PR 9350/xx series and PR 9314/41.

Can the A6500-LC operate in extreme temperatures?
Yes, it is designed to function in temperatures ranging from -35°C to +75°C.

Is factory calibration required for every installation?
No, factory calibration is optional. Fixed sensitivity models can be used without recalibration.

What is the power supply requirement for A6500-LC?
It requires a +24V DC power supply, with an acceptable range of 22.5V to 32V DC.

How is the A6500-LC mounted?
It is DIN rail mountable using a standard NS 35/7.5 rail.

What is the accuracy of the A6500-LC?
In fixed sensitivity mode, accuracy is ±2%, while factory calibrated units have <±1% deviation.

Can the A6500-LC be used in hazardous environments?
The A6500-LC is IP20 rated, so additional protection may be required in hazardous areas.

What is the typical response time for the Channel OK supervision?
The CNOK (Channel Not OK) response time is 10ms, and the COK (Channel OK) response time is 100ms.

How does the A6500-LC handle signal output?
It provides a standard signal output range of 2V to 18V, suitable for integration with monitoring systems.

Is the A6500-LC compatible with third-party sensors?
Yes, but compatibility must be verified, especially for sensor supply voltage and signal range requirements.
