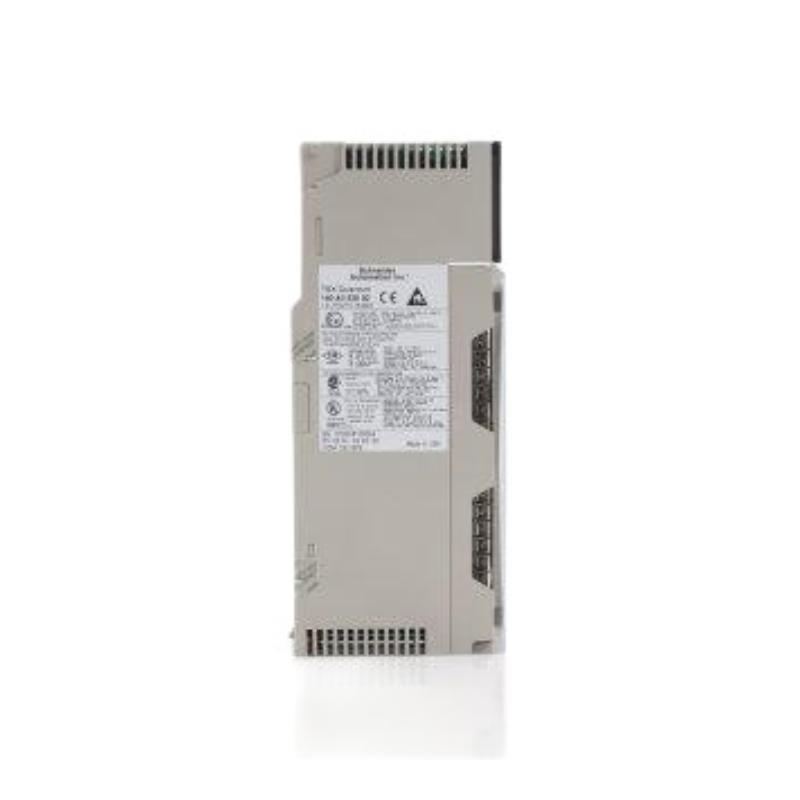

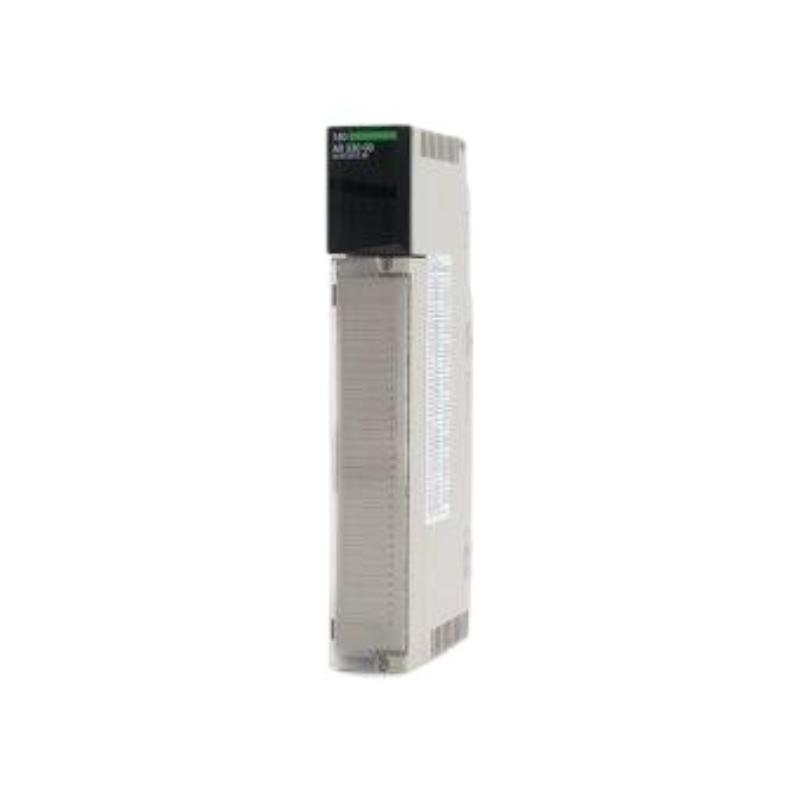

Schneider 140AII33000 Intrinsically Safe Temperature Input Module Trusted supplier

FAQs (Frequently Asked Questions)

What is the main function of the Schneider 140AII33000 module?
It is an intrinsically safe temperature input module designed to acquire temperature data in hazardous areas.

What temperature sensors does it support?
It supports multiple thermocouple types (J, K, E, T, R, S, B) and RTDs (Pt 100, Pt 200, Pt 500, Pt 1000, Ni 100, Ni 200, Ni 500, Ni 1000).

Is it compatible with Modicon Quantum controllers?
Yes, it is specifically designed for the Modicon Quantum automation platform.

Can the module be hot-swapped?
No, hot-swapping is not allowed due to intrinsic safety regulations.

What kind of filtering options does it have?
It features plus notch input filtering (50/60 Hz) and single low pass filtering (20 Hz).

What is the resolution of this module?
It provides a 16-bit resolution with 0.76 µV precision for millivolt signals.

Does it offer protection against faults?
Yes, it has broken wire detection and out-of-range fault detection.

What is the module’s power consumption?
It consumes 2W of power.

What is the isolation voltage?
The module provides 1780V AC isolation between channels and the bus.

What is the size and weight of the module?
The dimensions are 120 x 90 x 75 mm, and it weighs 0.3 kg.
