Honeywell Experion PKS ( C200, C300 ) is one of the most important DCS system. Original New Control processor, Control Interface, Redundancy Module, I/O Link Interface Module, PM I/O, FTA, FSC Module, UCN Board are provided

Product Introduction

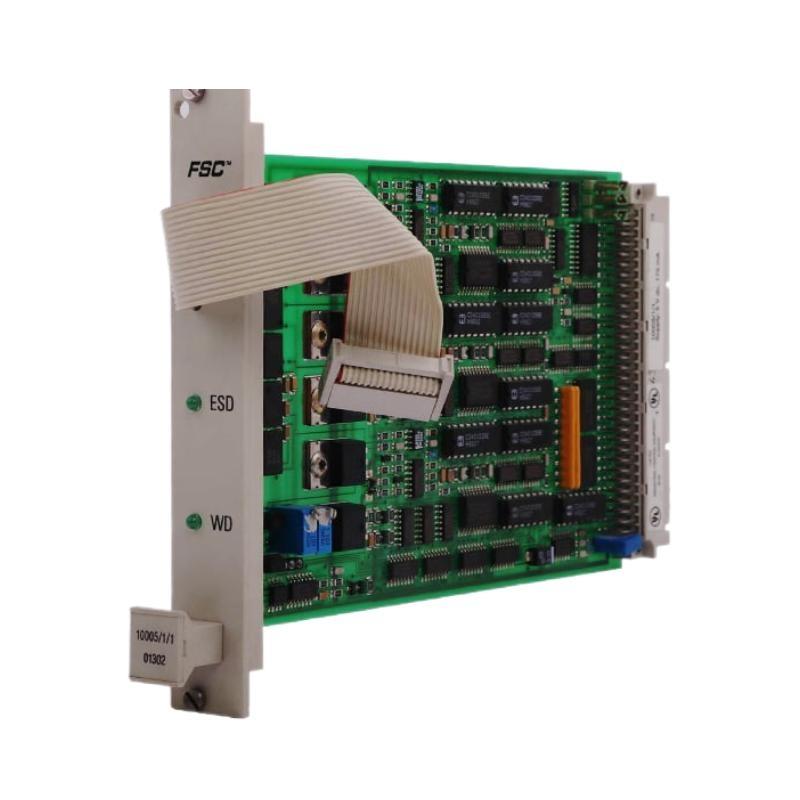

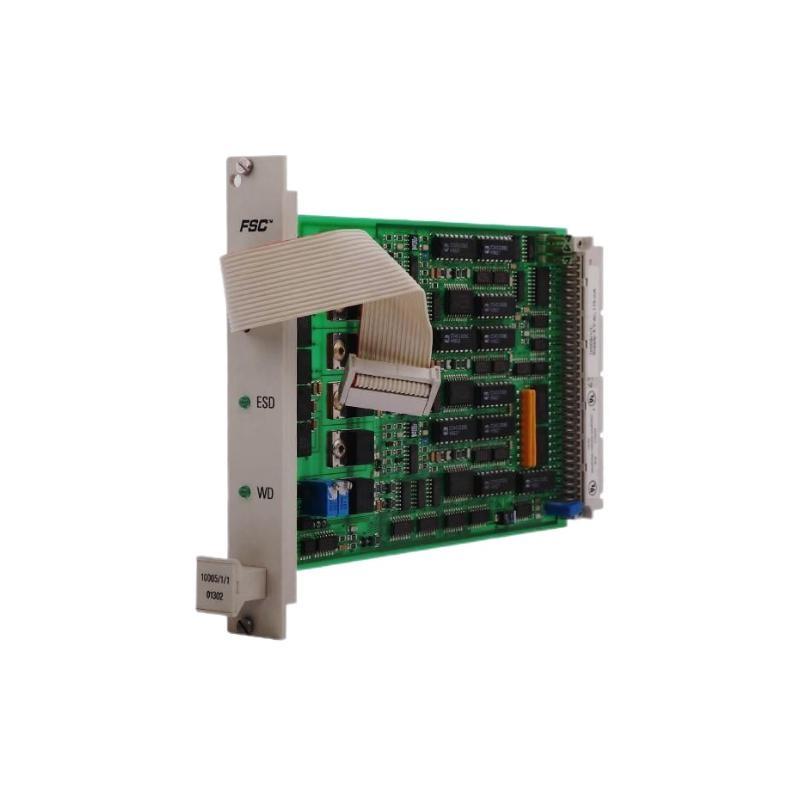

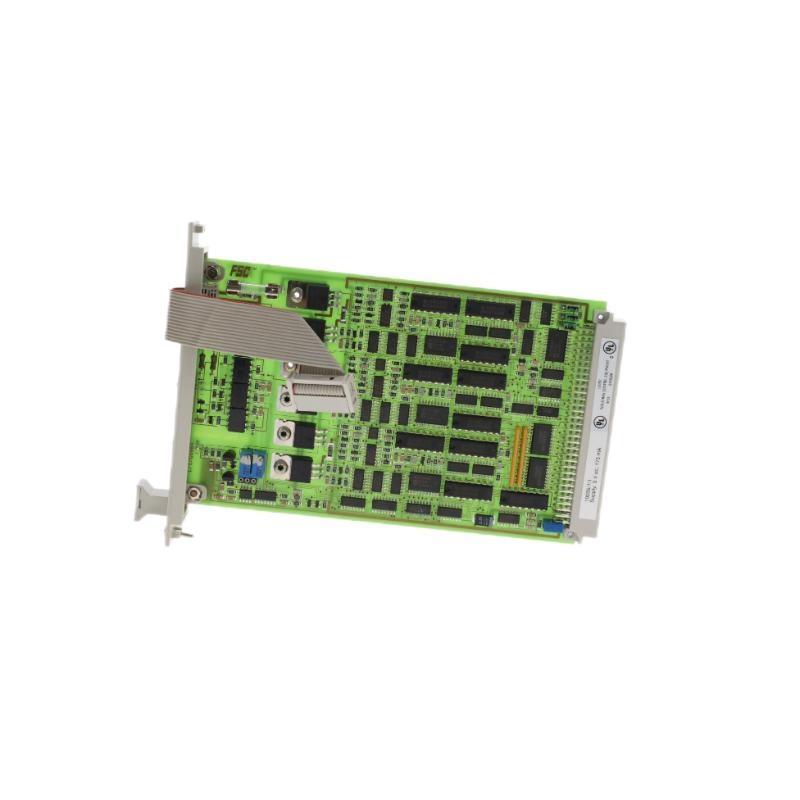

Honeywell 10005/1/1 Watch Dog Module Fail Safe Control System 100% New

Brand：Honeywell

Item No.：10005/1/1

Product Type：Watchdog Module

Product Origin：USA

Dimensions：20.32 × 128.4 × 160 mm

Weight：0.45 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Regular source, test instructions can be coordinated, and after-sales service continues to follow up

Regular models are in stock for a long time, and the inventory is stable. Welcome to inquire about the price!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQs)

What is the purpose of the Honeywell 10005/1/1 Watchdog Module?
This module monitors control systems for operational failures and takes predefined actions, such as triggering system resets or alarms, to maintain system reliability.

How does the watchdog function work in this module?
It continuously checks system activity and expects periodic “heartbeat” signals. If no signal is received within a set timeframe, it assumes a failure has occurred and initiates a corrective response.

What kind of control systems is this module compatible with?
It is primarily designed for Honeywell’s industrial automation and process control systems, but it can be integrated into other compatible systems depending on configuration.

What is the power consumption of the 10005/1/1 Watchdog Module?
It requires a 5 Vdc power supply with a current consumption of 175 mA (excluding any output load from WDGOUT).

What are the physical dimensions and weight of the module?
The module has dimensions of 20.32 × 128.4 × 160 mm and a weight of 0.45 kg, making it suitable for compact control panel installations.

What is the ripple content specification for the power input?
The ripple content should be less than 50 mV peak-to-peak (p-p) to ensure stable operation.

Does the module have self-diagnostic capabilities?
Yes, it includes built-in diagnostic functions that help detect internal faults and provide status feedback to the system.

What are the mounting requirements for this module?
The module requires 4 TE (4 HP) and 3 HE (3U) of rack space, following standard industrial rack-mounting guidelines.

What kind of output signals does the module provide?
The module provides a WDGOUT signal that can be used to trigger external alarms, resets, or other corrective actions.

What industrial safety certifications does this module meet?
It complies with CE, TÜV, and UL certifications, ensuring it meets international safety and quality standards for industrial applications.
