Product Details

Schneider aims to bring Sustainability and Efficiency for all. Modicon Quantum system is the advanced PLC system.

Product Introduction

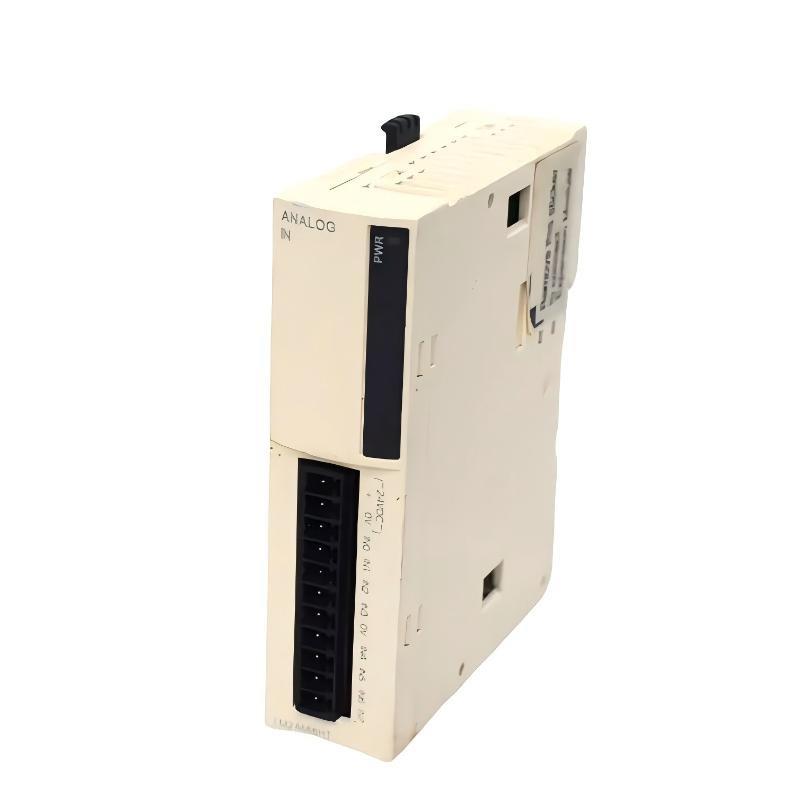

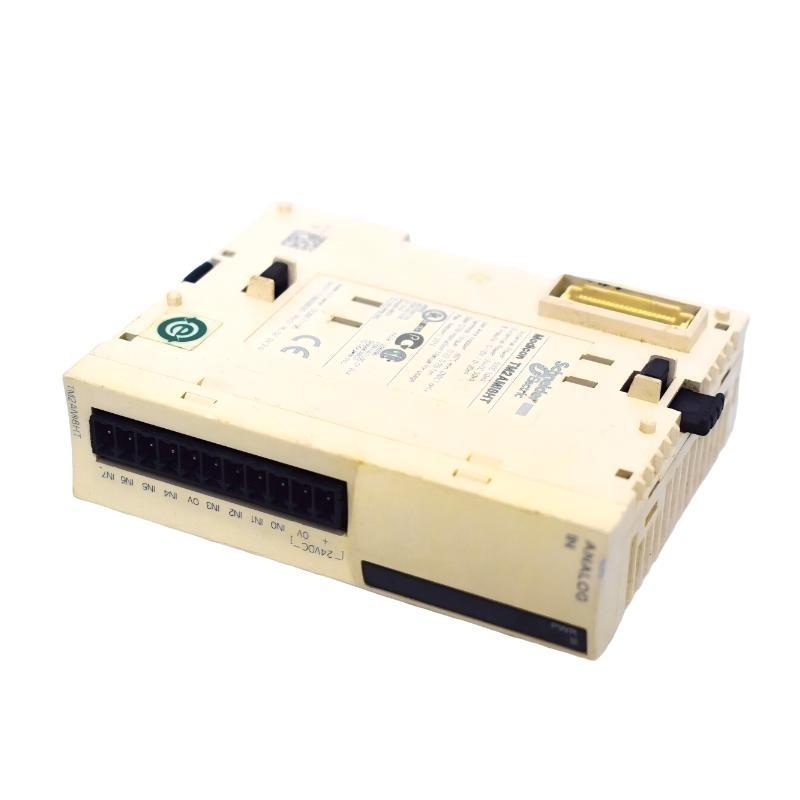

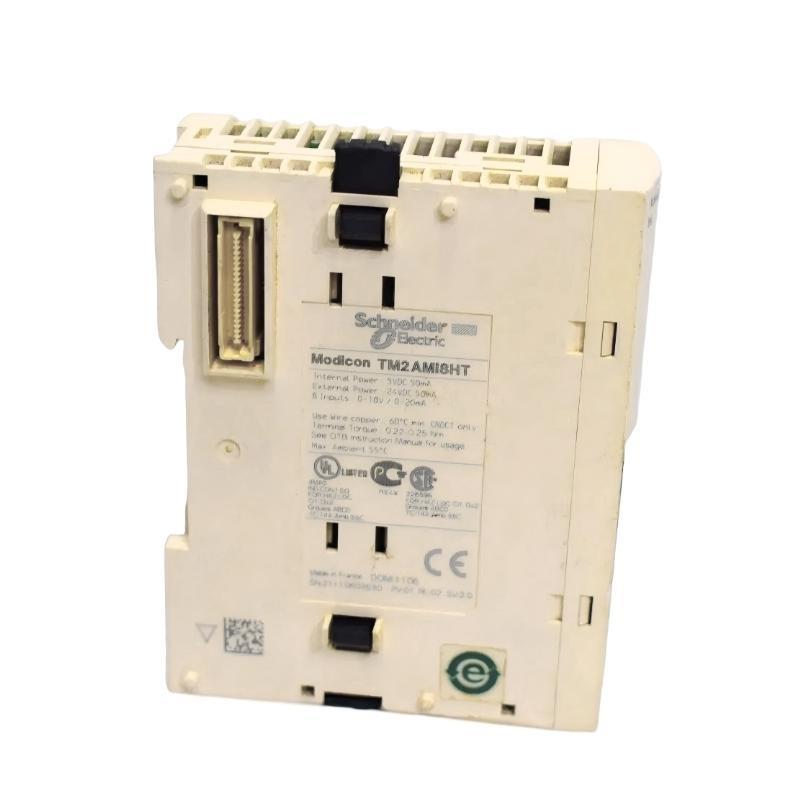

Schneider TM2AMI8HT Analog Input Module New In Stock

Brand：Schneider

Item No.：TM2AMI8HT

Product Type：Analog Input Module

Product Origin：France

Dimensions：23.5 x 70 x 90 mm

Weight：0.085 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Compliant import, support for testing, and fast response to after-sales service

Product inventory is continuously updated, and order needs are quickly responded to. Welcome to call for consultation!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What types of analog signals are supported by this module?
The module accepts both voltage signals (0–10 VDC) and current signals (4–20 mA).

How many analog input channels are available?
The module provides 8 independent analog input channels.

Is electrical isolation provided between the inputs and the logic circuit?
Yes, galvanic isolation protects the control system from electrical interference and field-side faults.

What is the typical conversion speed of the module?
The conversion cycle is under 10 ms, allowing fast and stable signal updates.

How accurate are the measurements?
The module delivers ±0.2% full-scale accuracy with 12-bit resolution.

Can different signal types be mixed across channels?
Yes, each channel may be configured independently for voltage or current input.

What communication protocol does the module use?
It communicates through the TM2 bus to exchange data with the main controller.

Does the module require on-site calibration?
No calibration is required during installation; all configuration is handled through the control system software.
