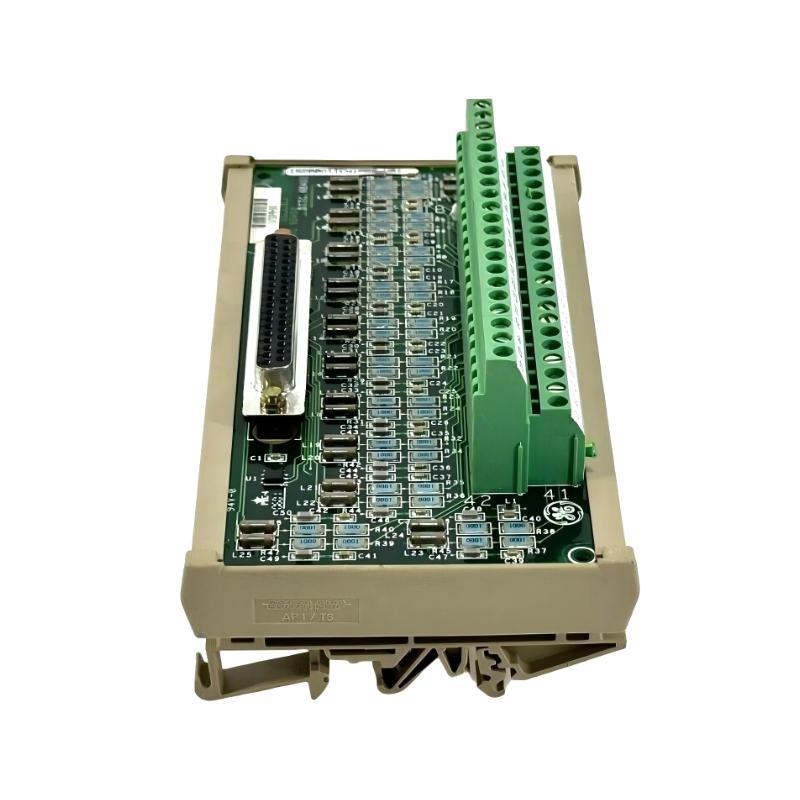

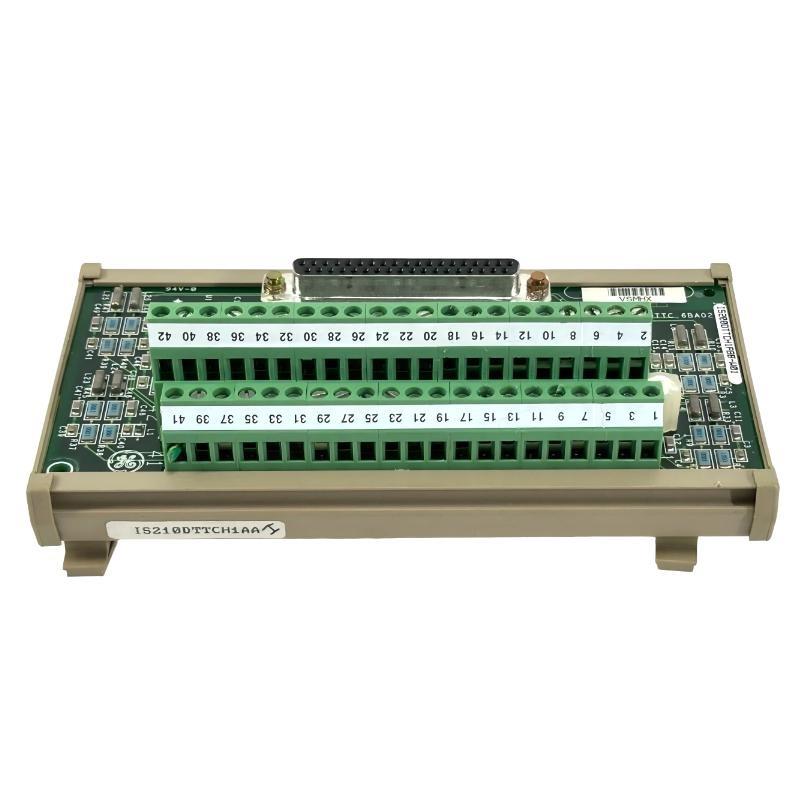

GE IS210DTTCH1A IS200DTTCH1A Simplex Thermocouple Input Board 12-Month Warranty

FAQ

1. What is the main purpose of the DTTCH1A board?
It collects thermocouple signals and converts them into digital temperature values for the Mark VI and Mark VIe control system.

2. What thermocouple types can be connected?
The board supports J, K, T, E, R, S, and B thermocouple types.

3. Does the board handle cold junction compensation automatically?
Yes. Cold junction reference is built into the board and compensated automatically.

4. How many input channels are available?
The board provides 24 independent simplex thermocouple input channels.

5. How does the system detect open thermocouples?
The board continuously monitors for open-circuit conditions and triggers system diagnostics when detected.

6. Is the board suitable for high-noise environments?
Yes. Digital filtering and input conditioning reduce the impact of electrical noise in industrial installations.

7. How are measured values transferred to the controller?
All data is transmitted through the Mark VI backplane bus for real-time processing.

8. Can the board operate in redundant systems?
It is designed for simplex operation but can coexist within redundant I/O system configurations.

9. What level of measurement accuracy can be expected?
Typical system accuracy is within ±0.5% of full scale, depending on thermocouple type and environmental conditions.

10. What diagnostics are provided by the board?
Internal diagnostics include channel faults, open-loop detection, over-range indication, and board health monitoring.
