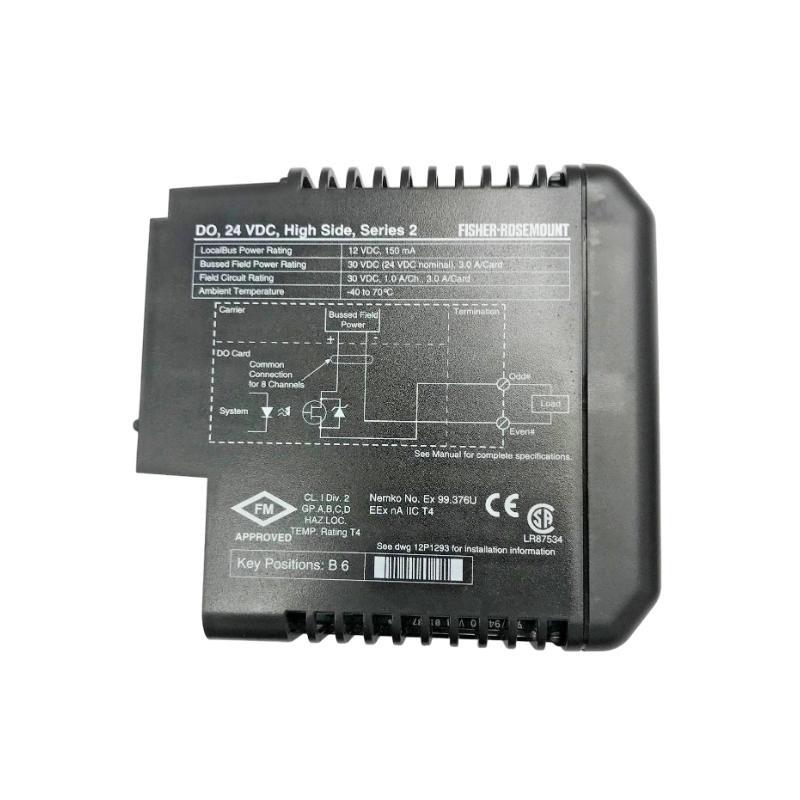

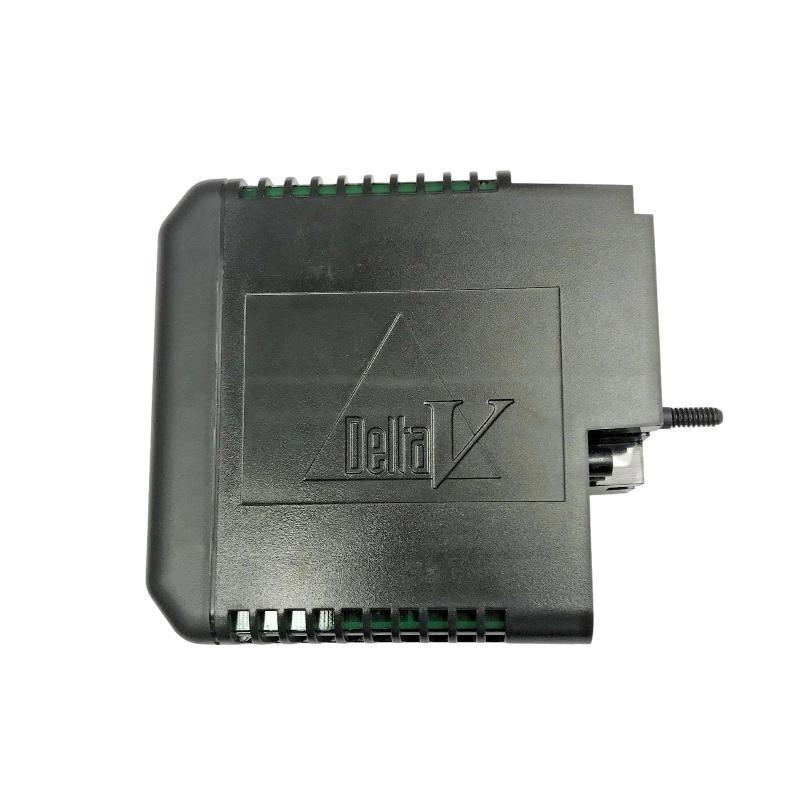

Emerson VE4002S1T2B Discrete Output Card Original

FAQ

What is the main function of the Emerson VE4002S1T2B module?
The VE4002S1T2B provides 16 discrete output channels to control field devices such as actuators, solenoids, and indicator lights, enabling automated process control via the DeltaV system.

How many discrete channels does this module support?
The module supports 16 independent digital output channels, each capable of controlling devices separately or in coordinated sequences.

What type of signals are output from this card?
Each channel delivers a sourcing discrete output signal, typically at 24 VDC, suitable for standard industrial automation applications.

Is there electrical isolation on the output channels?
Yes, each output channel is isolated up to 250 V RMS from the system bus and ground, which provides safety and minimizes electrical interference.

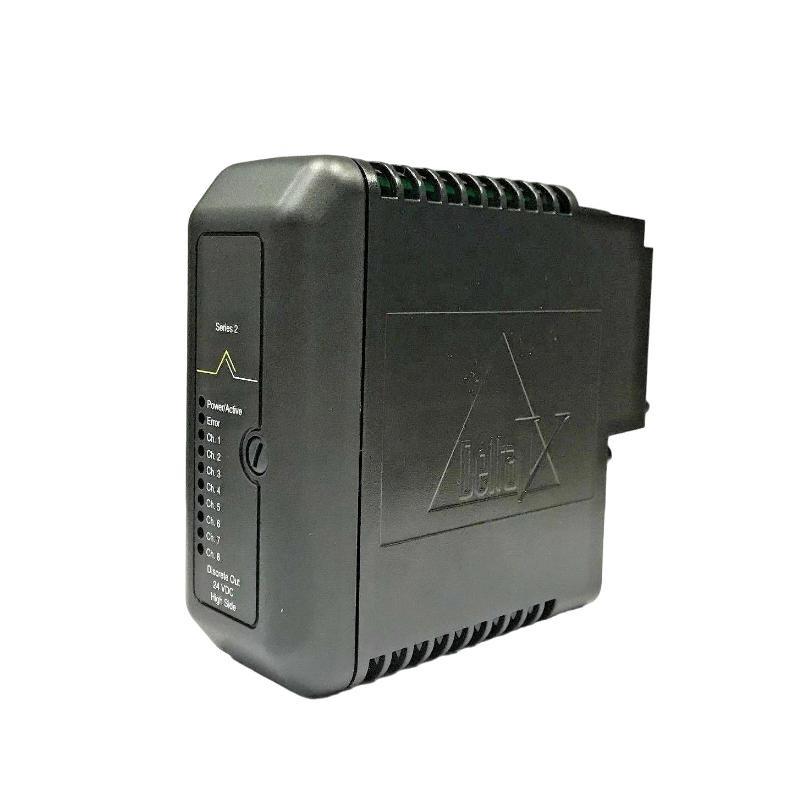

How can I monitor the status of each output channel?
Each channel includes an LED indicator that displays the output state in real time, making diagnostics and troubleshooting straightforward.

Does the VE4002S1T2B offer fault detection?
Yes, the module includes built-in diagnostics for overcurrent and channel faults, allowing the DeltaV system to detect and report abnormal conditions automatically.

How is the module configured and monitored?
Configuration is performed using DeltaV Explorer software, which allows channel mapping, status monitoring, and integration of fault management within the control system.

What types of devices are commonly controlled by this module?
It is typically used to control solenoid valves, relays, motor starters, indicator lights, and other discrete actuators in process automation systems.
