Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

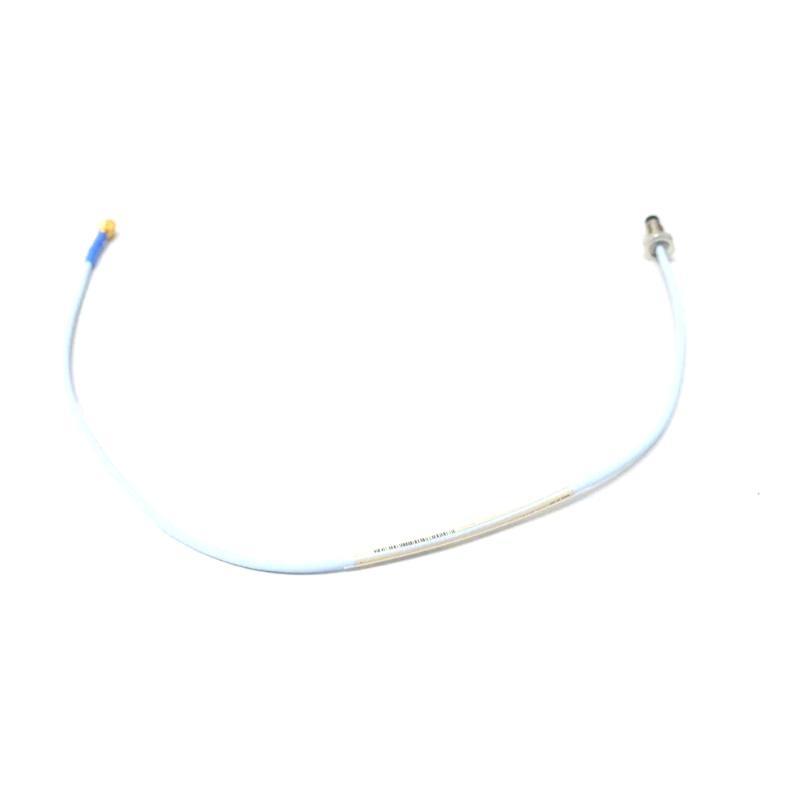

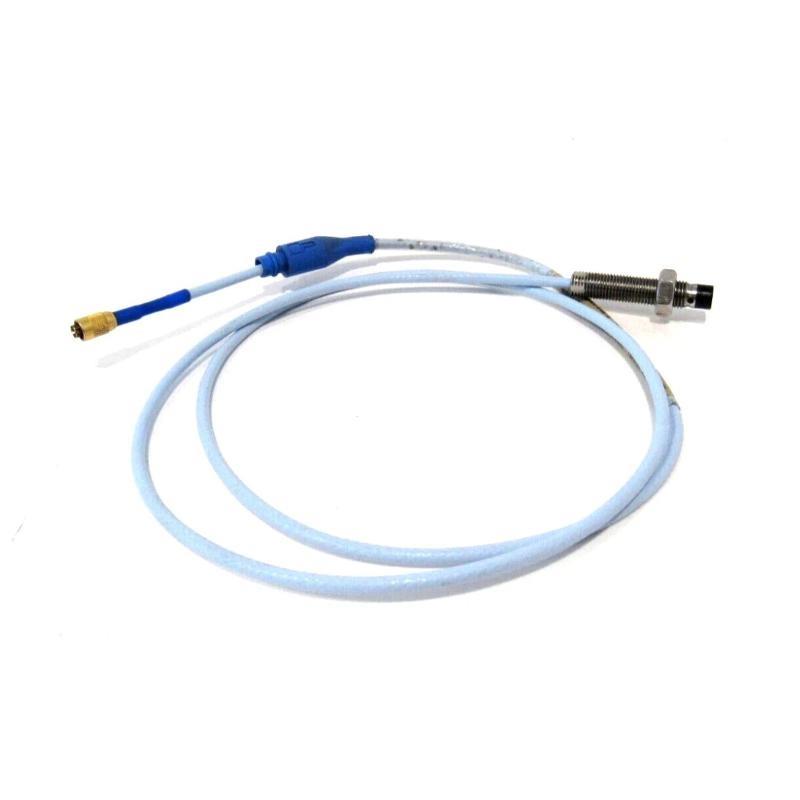

Bently Nevada 330101-00-25-10-02-00 8 mm Eddy-Current Proximity Probe 12-Month Warranty

Brand：Bently Nevada

Item No.：330101-00-25-10-02-00

Product Type：8 mm Eddy-Current Proximity Probe

Product Origin：USA

Dimensions：Probe tip diameter 8 mm; body length 2.5 in; cable length 1.0 m

Weight：Approx. 0.34 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

This product is imported from overseas, supports test report assistance, and smooth after-sales docking

A wide range of models in stock, supports quick docking of procurement needs, welcome to inquire for details!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the main function of the 330101-00-25-10-02-00 probe?
It measures shaft vibration, radial displacement, and position in rotating machinery using non-contact eddy-current technology.

What does “25-10-02-00” indicate in the model number?
“25” specifies the body length (2.5 in), “10” indicates the cable length (1.0 m), “02” is the connector type (ClickLoc), and “00” indicates standard approvals with no special certification.

Is this probe compatible with 3300 XL proximitor sensors?
Yes, it is fully compatible with 3300 XL Proximitor systems.

Can it operate in harsh industrial environments?
Yes, the stainless-steel housing and PPS tip allow operation in high-vibration, oil-exposed, and high-temperature conditions.

What is the linear measurement range?
Approximately 0.25 mm to 2.3 mm.

What supply voltage does this probe require?
A negative DC supply between –17.5 Vdc and –26 Vdc.

Can it monitor high-speed rotating machinery?
Yes, its frequency response supports high-speed equipment monitoring.

What are the physical dimensions and weight of the probe?
Probe tip diameter 8 mm, body length 2.5 inches, cable length 1.0 m, weight approximately 0.34 kg.
