Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

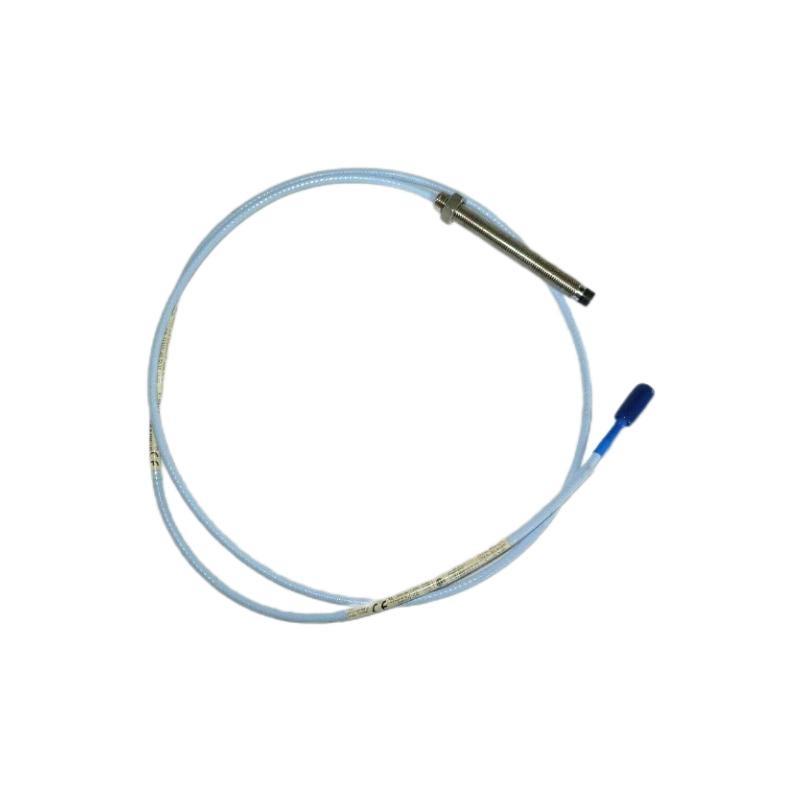

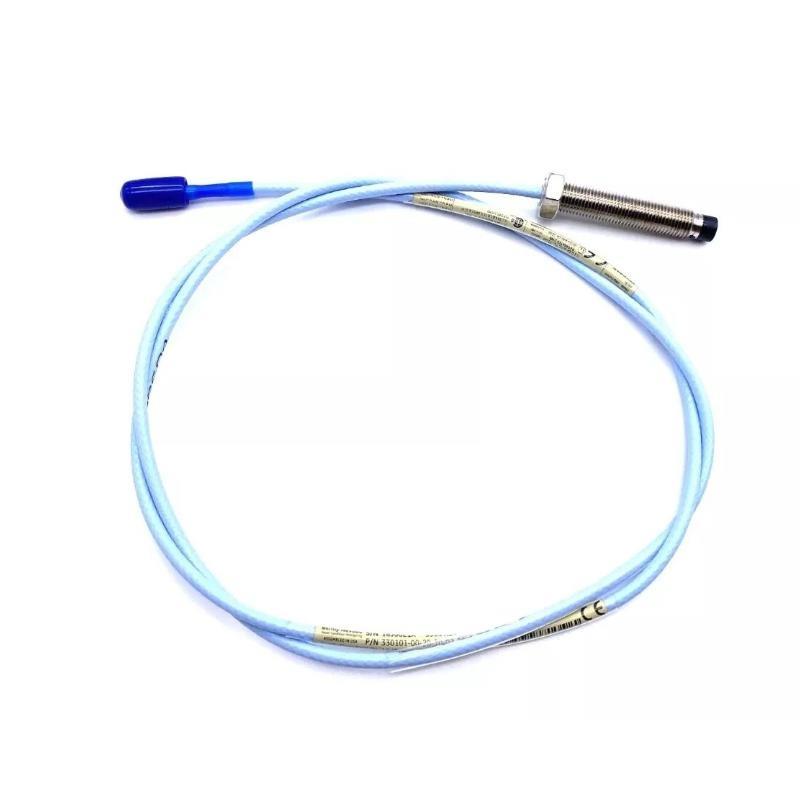

Bently Nevada 330101-00-20-90-02-05 8 mm Eddy-Current Proximity Probe Unbelievable Prices!

Brand：Bently Nevada

Item No.：330101-00-20-90-02-05

Product Type：8 mm Eddy-Current Proximity Probe

Product Origin：USA

Dimensions：Probe tip diameter 8 mm; body length 2 in; cable length per special configuration

Weight：Approx. 0.32 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Compliant import, support for testing, and fast response to after-sales service

Product inventory is continuously updated, and order needs are quickly responded to. Welcome to call for consultation!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the main function of the 330101-00-20-90-02-05 probe?
It measures shaft vibration, radial displacement, and position in rotating machinery using non-contact eddy-current technology.

What does “90-02-05” indicate in the model number?
“90” specifies a special or custom configuration, “02” indicates the miniature coaxial ClickLoc connector, and “05” denotes certifications including CSA, ATEX, and IECEx.

Is this probe compatible with 3300 XL proximitor sensors?
Yes, it is fully compatible with 3300 XL Proximitor systems.

Can this probe operate in harsh industrial conditions?
Yes, the stainless-steel housing, PPS tip, and certified design allow it to function in high-vibration, oil-rich, and hazardous environments.

What is the measurement range of the probe?
The linear measurement range is approximately 0.25 mm to 2.3 mm.

What supply voltage does this probe require?
It requires a negative DC supply, typically between –17.5 Vdc and –26 Vdc.

Can it be used with high-speed rotating machinery?
Yes, the frequency response is suitable for high-speed machinery monitoring.

What are the physical dimensions and weight of the probe?
Probe tip diameter 8 mm, body length 2 inches, cable length per special configuration, weight approximately 0.32 kg.
