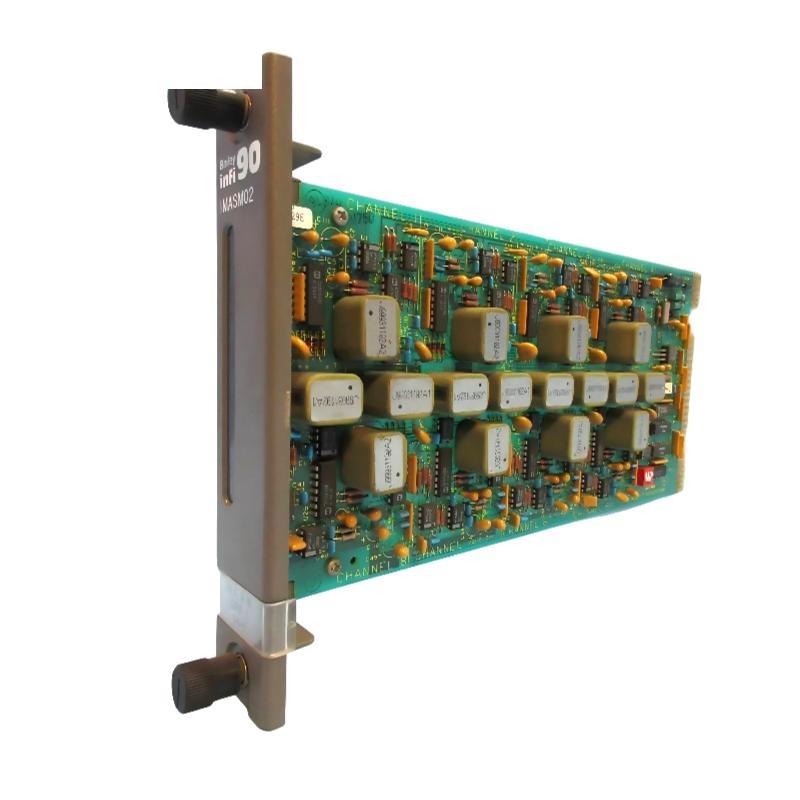

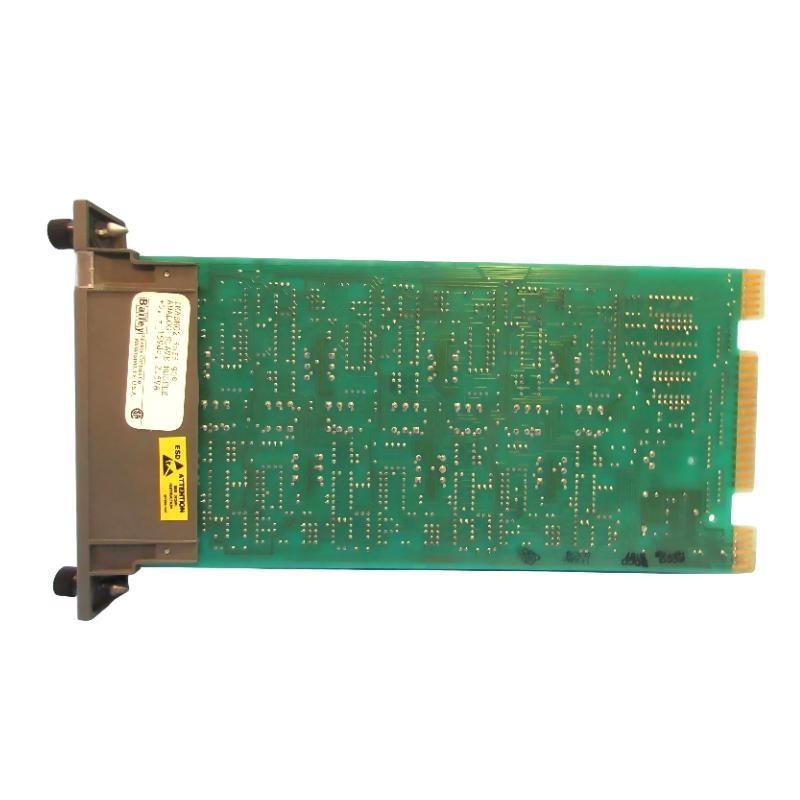

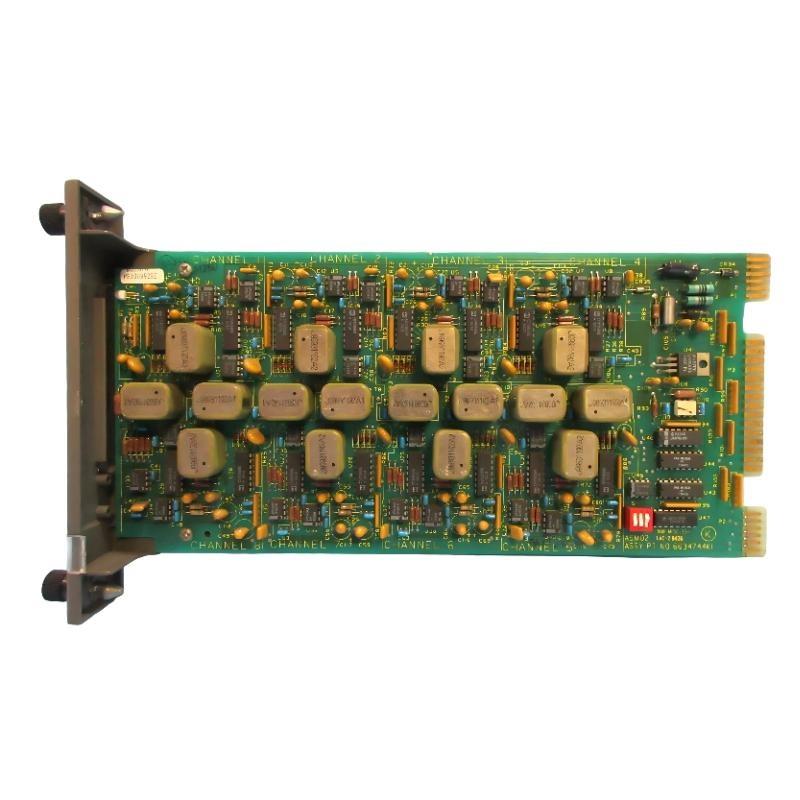

ABB Bailey IMASM02S Analog Input Slave Module Trusted supplier

FAQ

What is the main function of the ABB Bailey IMASM02S module?
The IMASM02S serves as an analog input slave module that acquires voltage and current signals from field devices for processing in the INFI-90 control system.

How many analog input channels does the IMASM02S provide?
The module provides 8 analog input channels for flexible signal monitoring.

What types of analog signals can the IMASM02S handle?
It supports 0–10 V, 0–20 mA, and 4–20 mA analog signals.

Does the IMASM02S provide galvanic isolation?
Yes, it offers galvanic isolation between input channels and the system bus for signal integrity and protection.

What diagnostic functions are included in the IMASM02S?
The module includes channel monitoring, fault detection, and signal validation to ensure accurate measurements.

Can the IMASM02S be used in redundant system configurations?
Yes, it supports redundancy through the INFI-90 system setup for increased reliability.

What communication interface does the IMASM02S use?
It communicates via the INFI-90 system bus for seamless integration with other modules.

What are the operating environmental conditions for the IMASM02S?
The module operates effectively between 0°C and +60°C with 5%–95% relative humidity, non-condensing.
