Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

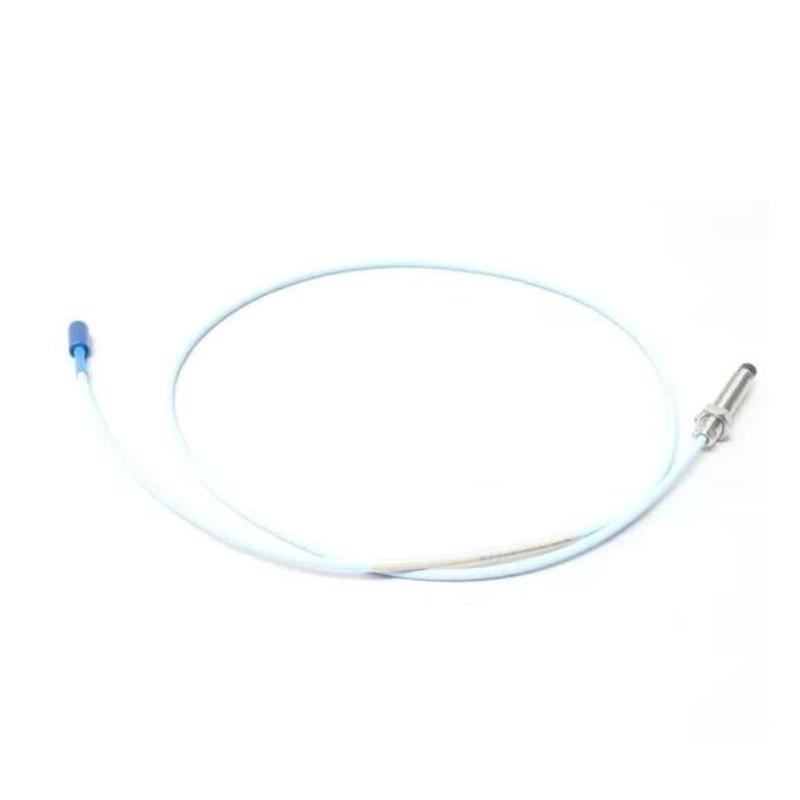

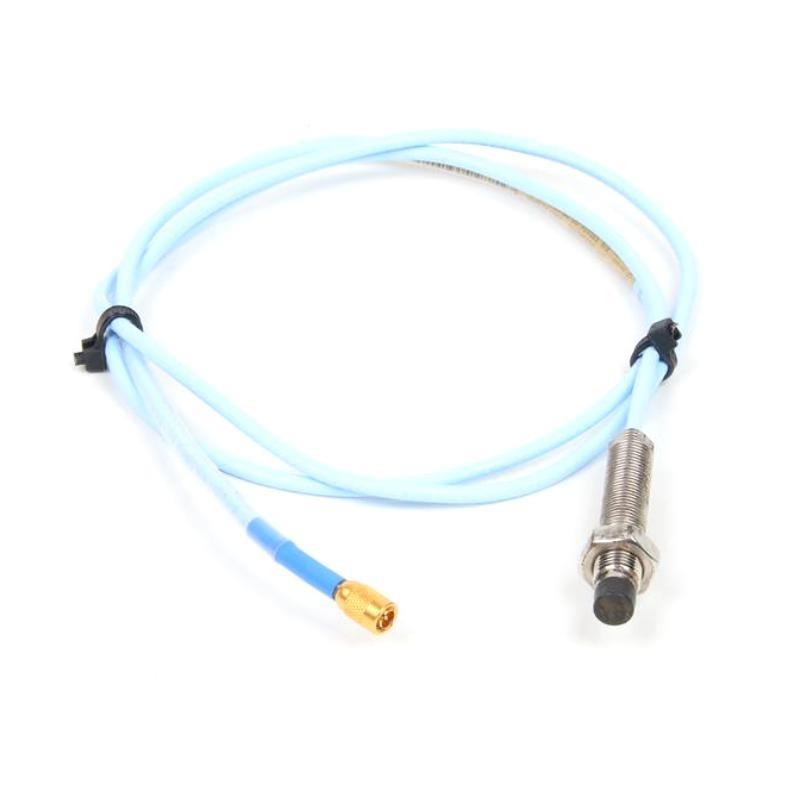

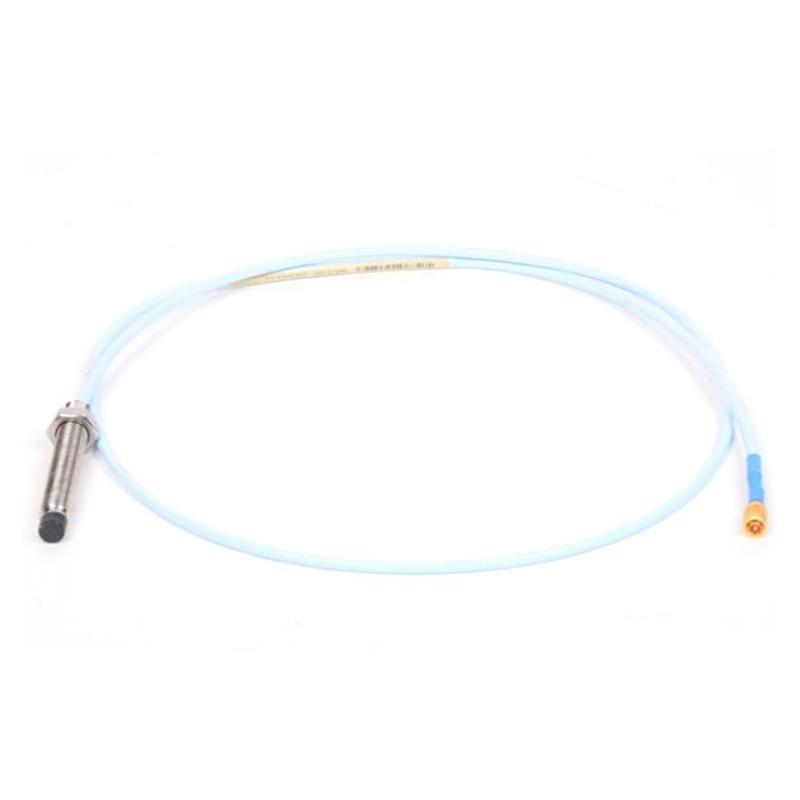

Bently Nevada 330101-00-20-20-90-02-05 8 mm Eddy-Current Proximity Probe Original

Brand：Bently Nevada

Item No.：330101-00-20-20-90-02-05

Product Type：8 mm Eddy-Current Proximity Probe

Product Origin：USA

Dimensions：Probe tip diameter 8 mm; body length 2 in; cable length 2 m

Weight：Approx. 0.32 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Clear and reliable product sources, support for third-party testing, complete after-sales support

Product inventory is continuously updated, and order needs are responded to quickly. Welcome to call for consultation!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the main function of the 330101-00-20-20-90-02-05 probe?
It is a non-contact eddy-current proximity probe used to measure shaft vibration, radial position, and displacement in rotating machinery.

What does the “90-02-05” segment of the model number mean?
“90” indicates a special configuration or custom feature, “02” is the connector type (miniature coaxial ClickLoc), and “05” indicates certification approvals (CSA, ATEX, IECEx).

Is this probe compatible with the 3300 XL proximitor system?
Yes, it is fully compatible with 3300 XL Proximitor sensors for accurate displacement and vibration monitoring.

Can this probe be used in harsh industrial conditions?
Yes, its stainless-steel body, PPS tip, and certified design make it suitable for high-vibration, oil-contaminated, and hazardous areas.

What is the measurement range of the probe?
The linear measurement range is approximately 0.25 mm to 2.3 mm.

What supply voltage is required for operation?
The system requires a negative DC supply, typically between –17.5 Vdc and –26 Vdc.

Can it handle high-speed rotating machinery?
Yes, the probe’s frequency response supports high-speed equipment monitoring.

What are the physical dimensions and weight of the probe?
The probe tip diameter is 8 mm, body length 2 inches, cable length 2 m, and weight is approximately 0.32 kg.
