Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

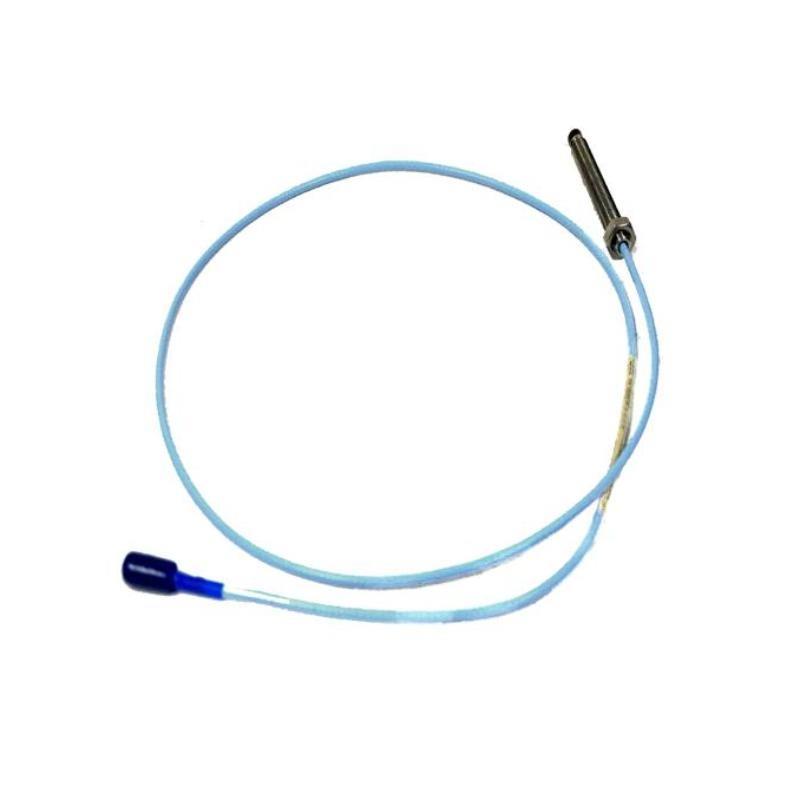

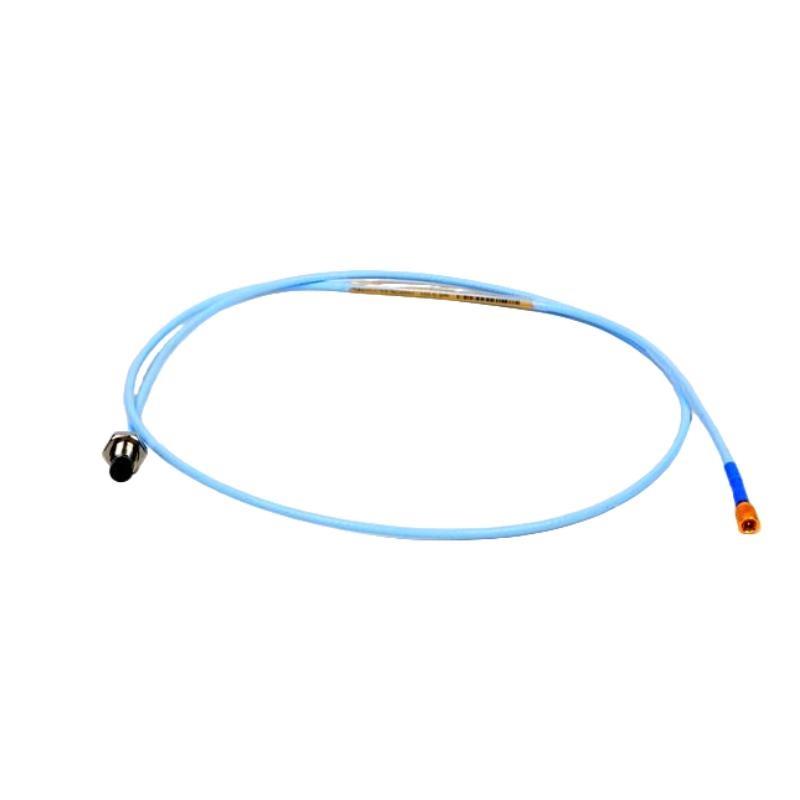

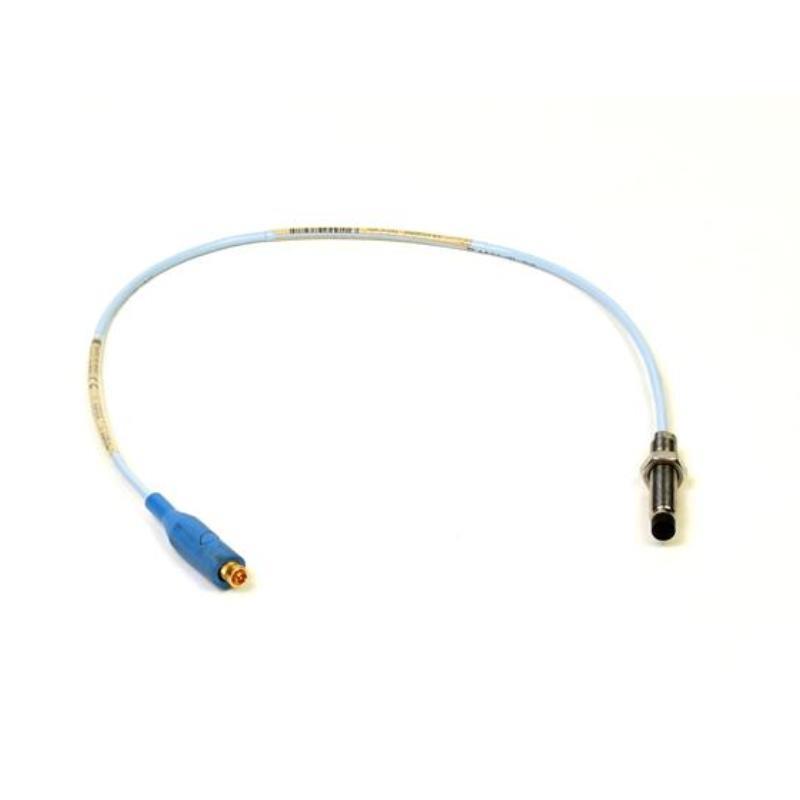

Bently Nevada 330101-00-20-20-02-05 8 mm Eddy-Current Proximity Probe Fast Shipping!

Brand：Bently Nevada

Item No.：330101-00-20-20-02-05

Product Type：8 mm Eddy-Current Proximity Probe

Product Origin：USA

Dimensions：Probe tip diameter 8 mm; overall assembly length varies by installation

Weight：Approx. 0.32 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

The product source is clear and reliable, supports third-party testing, and has complete after-sales support

The model is complete, and the inventory is updated in real time. Welcome to get the latest list!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the main function of the 330101-00-20-20-02-05 probe?
It measures shaft vibration, position, and displacement in rotating machinery using non-contact eddy-current technology.

How should the model code “00-20-20-02-05” be interpreted?
It indicates unthreaded length (00), body length (20), cable length (20), connector style (02), and certification/approval group (05).

What proximitor driver is this probe compatible with?
It is designed to be used with the 3300 XL Proximitor Sensor for calibrated system performance.

Can this probe operate in harsh industrial environments?
Yes. Its stainless-steel body, rugged PPS tip, and certified construction make it suitable for oil-rich, high-vibration, and hazardous-area environments.

What supply voltage does the system require?
The probe operates as part of a system that uses a negative DC supply, typically within –17.5 Vdc to –26 Vdc.

What is the typical sensitivity of this probe?
The standard incremental scale factor is about 7.87 V/mm (≈200 mV/mil).

Is it suitable for high-temperature applications?
Yes. The standard probe handles up to +177 °C, and an extended-temperature version supports higher limits at the probe tip and cable.

What are the physical size and weight of the probe?
The probe features an 8 mm tip diameter, a 2-inch body length, a 2-meter cable, and weighs roughly 0.32 kg.
