Product Introduction

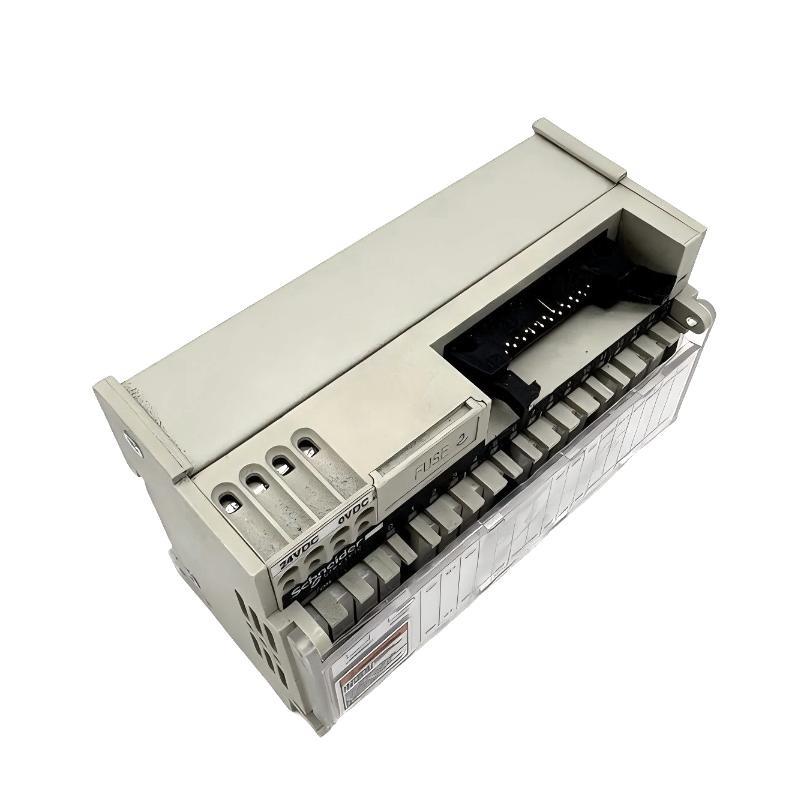

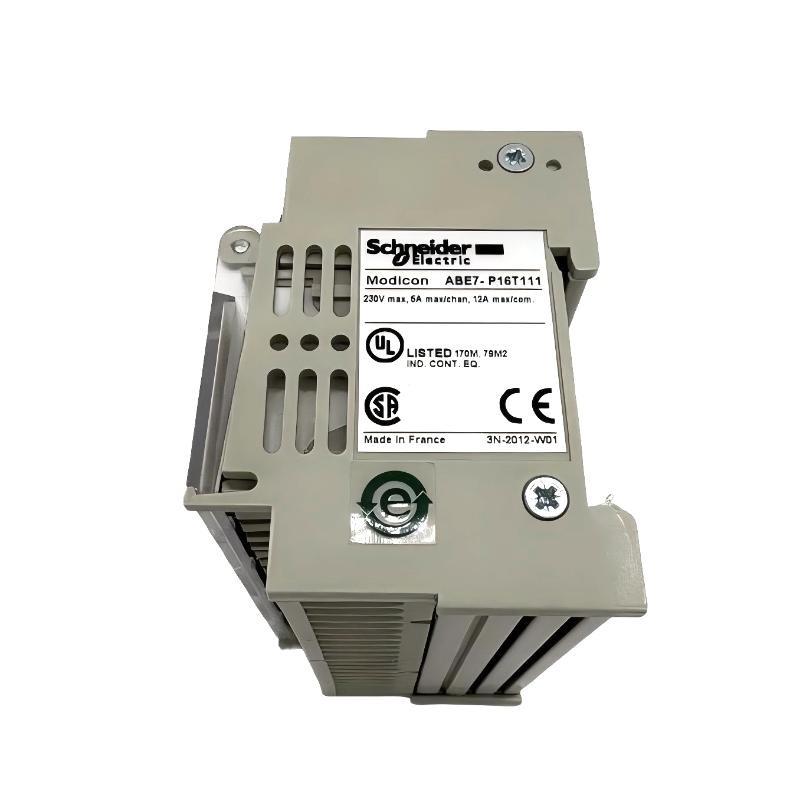

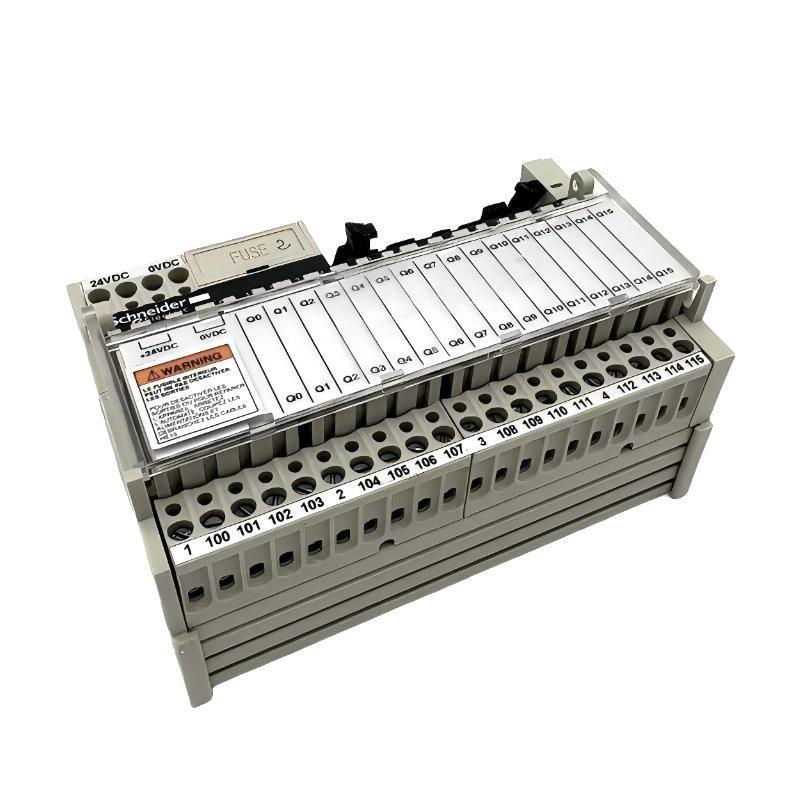

Schneider ABE7P16T111 Sub-Base For Plug-In Relay Trusted supplier

Brand：Schneider

Item No.：ABE7P16T111

Product Type：Sub-Base For Plug-In Relay

Product Origin：France

Dimensions：110 x 89 x 63 mm

Weight：0.55 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original source, data support test content, efficient after-sales processing

Regular models are in stock for a long time, inventory is stable, welcome to inquire about prices!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the main purpose of the ABE7P16T111 sub-base?
The ABE7P16T111 sub-base is designed to serve as a secure interface for wiring field devices such as sensors and actuators to Schneider ABE7 plug-in relay modules, helping maintain organized connections and reliable signal transfer in industrial automation systems.

Does the sub-base contain any active electronics?
No, this sub-base is completely passive. It contains only mechanical terminals for wiring and does not include any active electronic components or signal conditioning circuitry.

How many channels does the sub-base support, and can multiple devices be connected?
The sub-base provides 16 independent channels, allowing multiple field devices to be connected simultaneously while keeping each signal separate for easy maintenance and troubleshooting.

What type of terminals are used, and are they suitable for industrial applications?
Screw-type terminals are used, providing secure, vibration-resistant connections suitable for harsh industrial environments and high-reliability applications.

Is the sub-base compatible with all Schneider ABE7 plug-in relay modules?
Yes, it is designed to fit the full range of Schneider ABE7 plug-in relay modules, ensuring correct mechanical alignment and electrical connection.

Can the sub-base be mounted on standard DIN rails?
Yes, it is fully compatible with standard DIN rails commonly used in industrial control cabinets, allowing for easy and secure installation.

Does the sub-base require any configuration after installation?
No configuration is required. Once the sub-base is mounted, field wiring can be connected immediately, simplifying installation and saving setup time.

How does the ABE7P16T111 sub-base help improve wiring organization in control panels?
By centralizing and structuring all field connections into a single interface, the sub-base reduces wiring clutter, improves accessibility for maintenance, and ensures a clean layout for better signal management and troubleshooting.
