Product Details

Schneider aims to bring Sustainability and Efficiency for all. Modicon Quantum system is the advanced PLC system.

Product Introduction

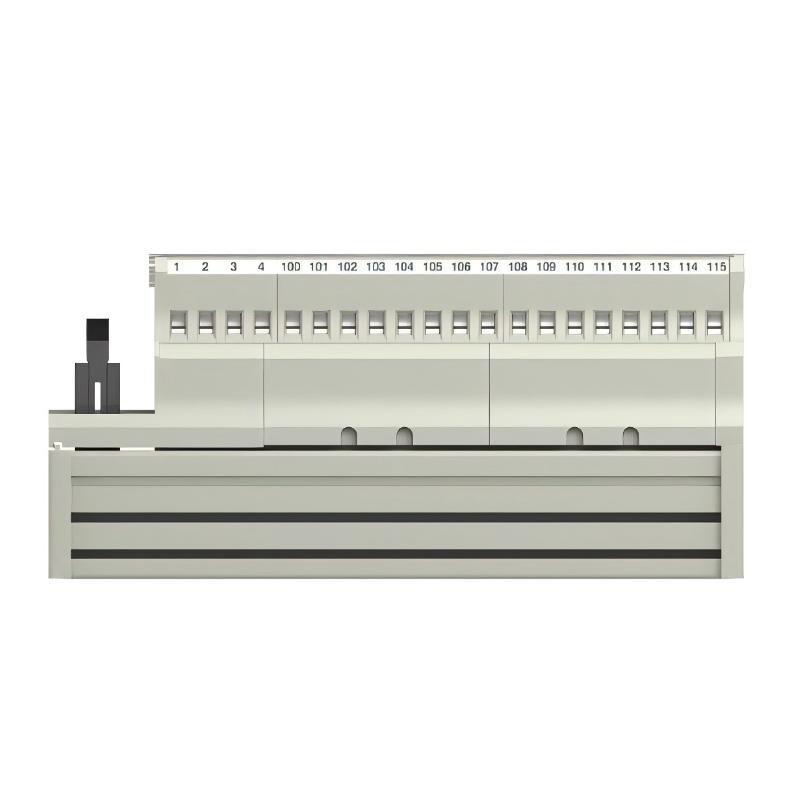

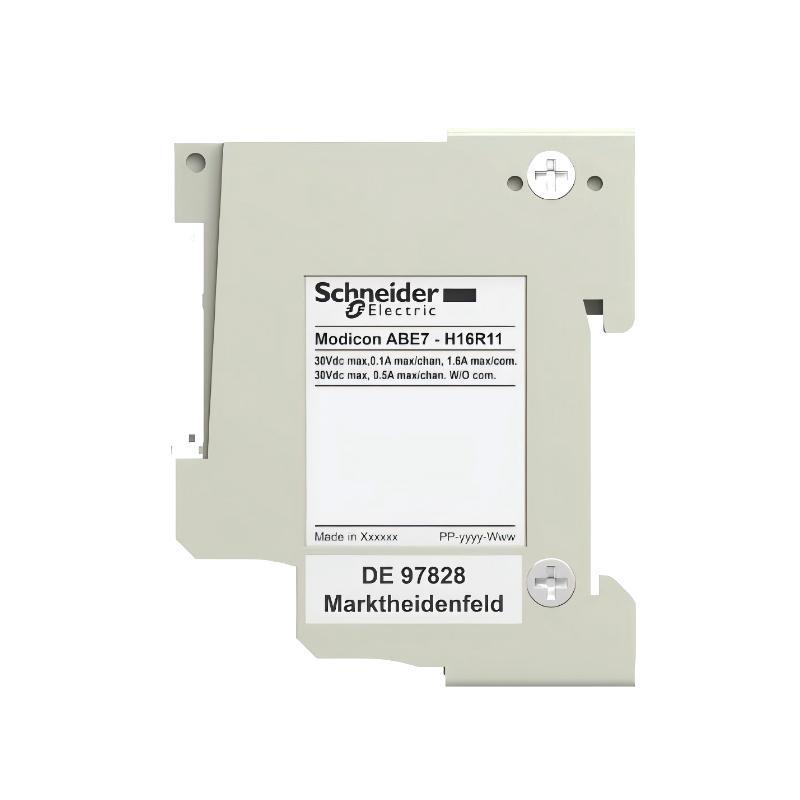

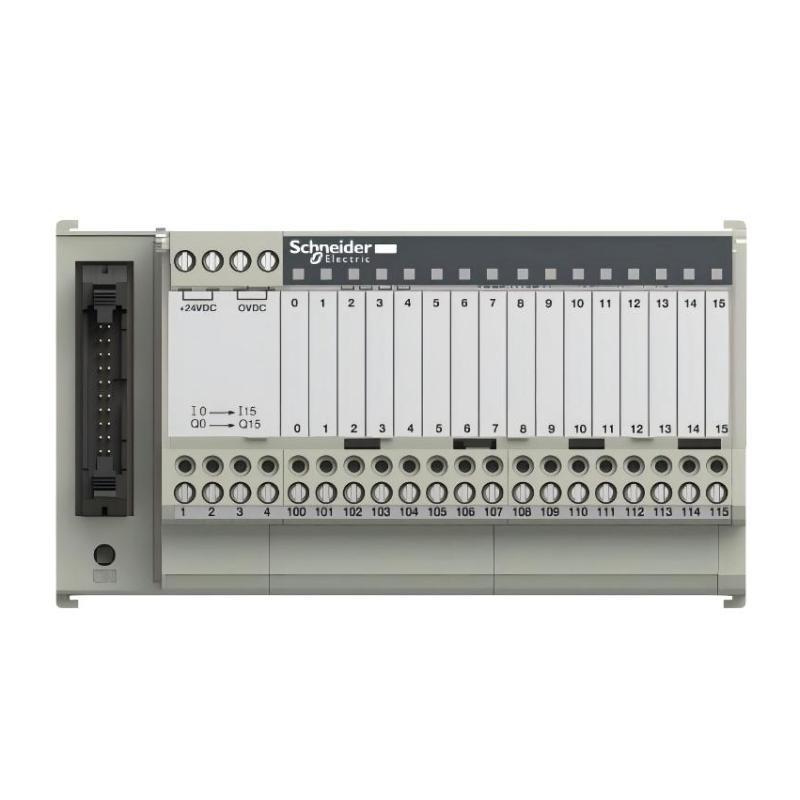

Schneider ABE7H16R11 Passive Connection Sub-Base 100% New

Brand：Schneider

Item No.：ABE7H16R1

Product Type：Passive Connection Sub-Base

Product Origin：France

Dimensions：125 x 70 x 67 mm

Weight：0.274 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original source, data support testing content, efficient after-sales processing

Flexible stocking of multiple models, support for quick response, welcome to cooperate and communicate!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the main purpose of the ABE7H16R11 sub-base?
The ABE7H16R11 sub-base provides a reliable interface for connecting field devices such as sensors and actuators to Schneider ABE7 relay or interface modules, ensuring organized wiring and maintaining signal integrity across industrial control systems.

Does this sub-base contain any active circuitry or electronics?
No, the sub-base is completely passive. It does not contain any active electronic components, relays, or signal processing; its sole function is to provide secure terminal connections for field wiring.

How many wiring channels are available on the sub-base?
The sub-base offers 16 independent channels, allowing multiple field devices to be connected simultaneously while keeping signals separated for easier maintenance and troubleshooting.

What type of terminals does the ABE7H16R11 use, and are they suitable for industrial applications?
The sub-base uses screw-type terminals, which provide strong, vibration-resistant connections suitable for harsh industrial environments and high-reliability applications.

Is the sub-base compatible with all ABE7 series modules?
Yes, it is designed to work with the complete range of ABE7 plug-in interface and relay modules, ensuring consistent mechanical and electrical integration within the control panel.

Can this sub-base be mounted on standard DIN rails?
Yes, it is fully compatible with standard industrial DIN rails, allowing for easy installation in existing control cabinets without the need for special mounting hardware.

Does the sub-base require any configuration or setup after installation?
No configuration is needed. Once the sub-base is mounted, field wiring can be immediately connected, streamlining installation and reducing setup time.

How does the ABE7H16R11 sub-base help simplify wiring in complex automation systems?
By centralizing all field connections into a single, organized interface, the sub-base reduces wiring clutter, improves accessibility for maintenance, and ensures a clean and structured layout for both signal management and troubleshooting.
