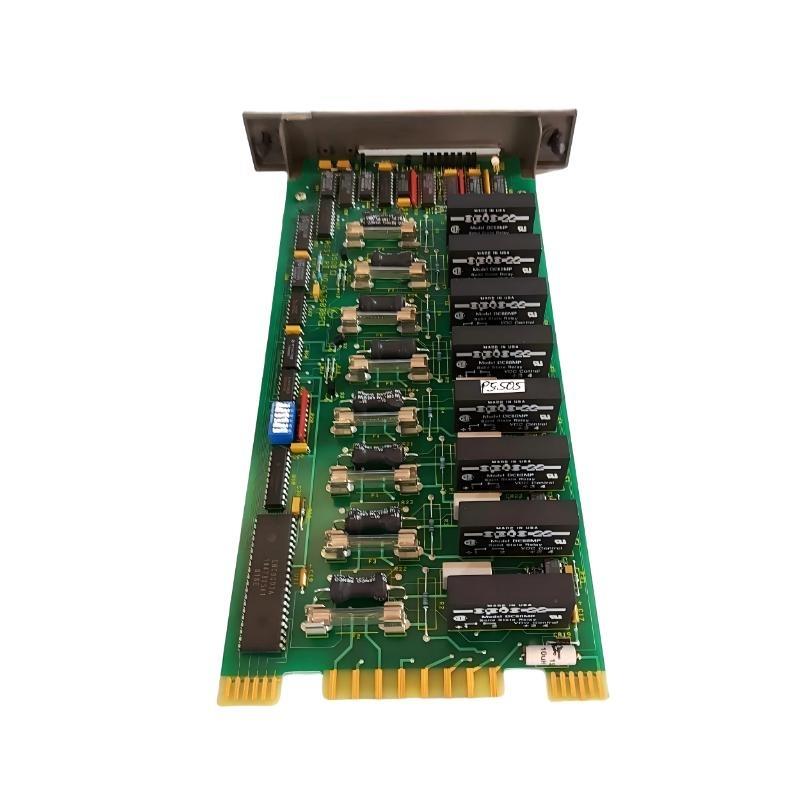

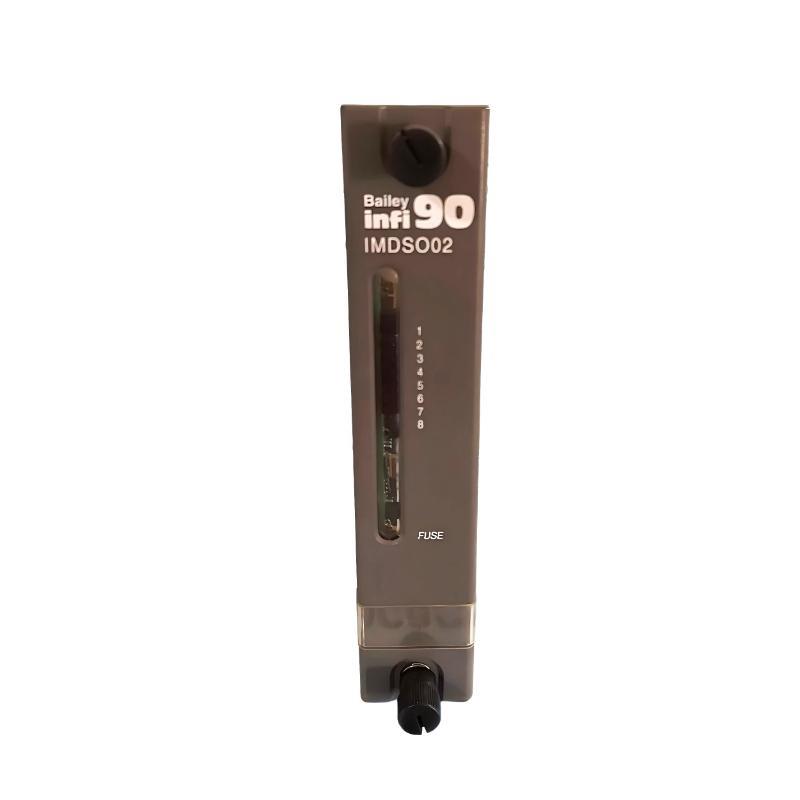

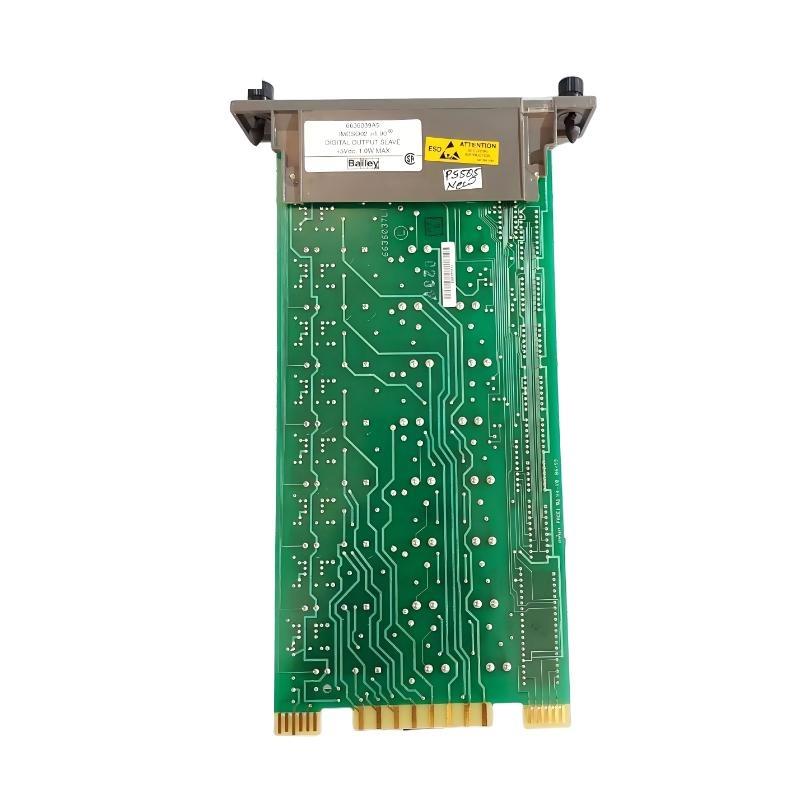

ABB Bailey IMDSO02 6636038F2 Digital Output Slave Module Trusted supplier

FAQ

What is the main role of the ABB Bailey IMDSO02 module?
The IMDSO02 serves as a digital output slave module that transmits control signals from the INFI-90 system to external field devices such as actuators and relays.

How many output channels does the IMDSO02 provide?
It features 16 isolated digital output channels designed for precise control of connected equipment.

What type of outputs are available in this module?
The module supports solid-state or relay-based outputs depending on configuration requirements.

What is the nominal operating voltage of the IMDSO02?
The module operates with a nominal voltage of 24 V DC for its output circuits and 15 V DC for system operation.

Does the IMDSO02 support channel fault detection?
Yes, it includes built-in diagnostic features to monitor output status and detect any channel or communication faults.

Can the IMDSO02 module be used in redundant configurations?
Yes, it supports redundancy to enhance reliability in critical industrial applications.

What communication interface does the IMDSO02 use?
It communicates through the INFI-90 system bus, ensuring compatibility with ABB Bailey control architectures.

Under what environmental conditions can the IMDSO02 operate?
The module functions effectively within a temperature range of 0°C to +60°C and humidity up to 95% RH, non-condensing.
