Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

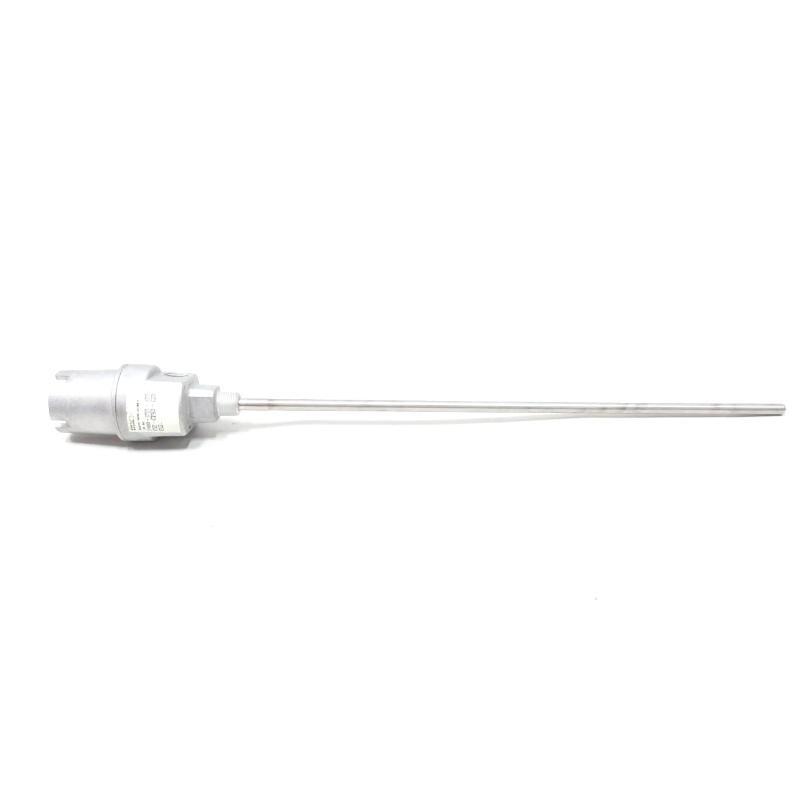

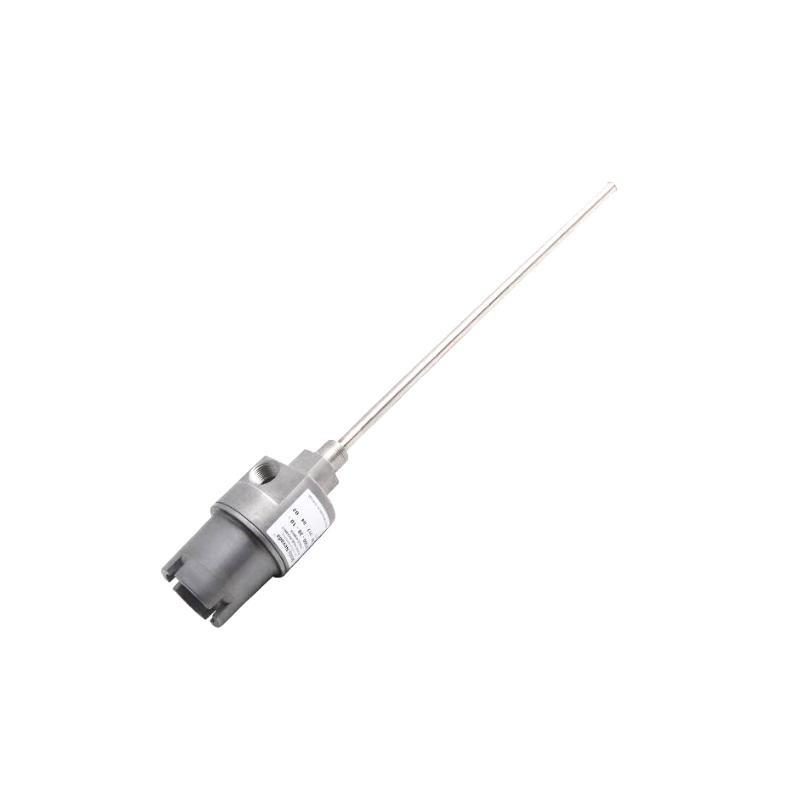

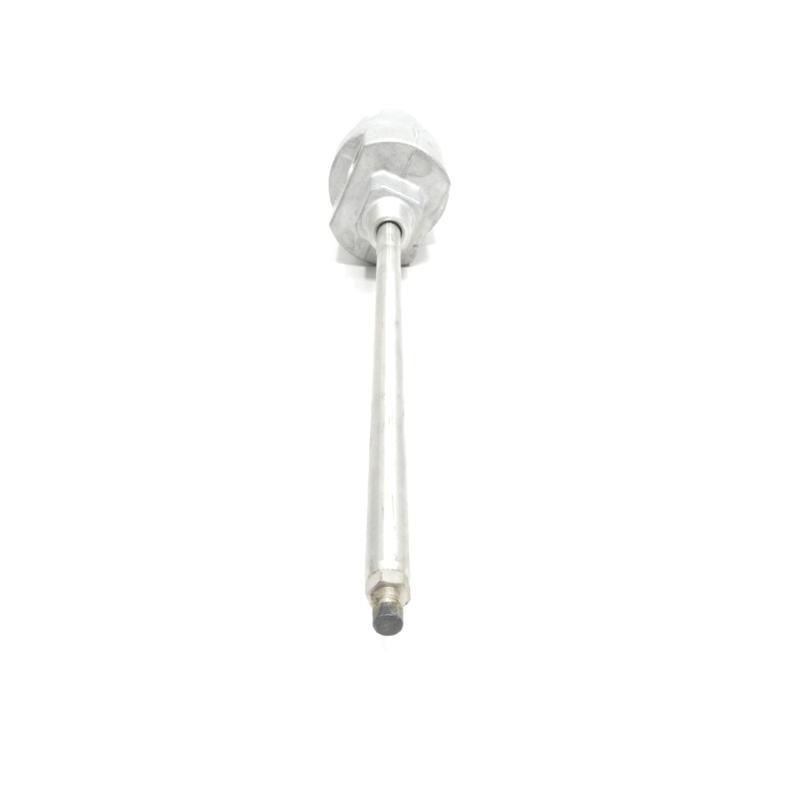

Bently Nevada 21000-28-05-20-051-04-02 Proximity probe housing assembly Unbelievable Prices!

Brand：Bently Nevada

Item No.：21000-28-05-20-051-04-02

Product Type：Proximity probe housing assembly

Product Origin：USA

Dimensions：50 mm × ~180 mm

Weight：1.1 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

This product is imported from overseas, supports test report assistance, and smooth after-sales docking

A wide range of models in stock, supports quick docking of procurement needs, welcome to inquire for details!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What does the suffix “-28-05-20-051-04-02” in the model number indicate?
“28” = 3300 XL 8 mm probe with selectable approvals; “05” = 0.5 m cable; “20” = 2.0 in standoff adapter; “051” = 5.1 in probe penetration; “04” = one 3/4-14 NPT plug; “02” = 3/4-14 NPT mounting thread.

Is the proximity probe included with this housing assembly?
Yes, the assembly comes with the 3300 XL 8 mm probe and the 0.5 m cable preinstalled.

What are the approximate dimensions and weight of this unit?
Approximately Ø50 mm diameter and ~180 mm length; weight ~1.1 kg without extra fittings.

What materials are used for the housing and sleeve?
The body is aluminum, and the sleeve (probe support) is 304 stainless steel for durability and corrosion resistance.

What is the temperature rating for this assembly?
It operates and stores reliably between –51 °C and +177 °C.

What does the “04” fitting option denote?
It includes a single 3/4-14 NPT plug only, with no reducer or cable seal grip.

Can this model be used in hazardous or explosive environments?
Yes, it is designed for explosion-proof applications, compliant with CSA and API 670 standards.

Can the standoff adapter or probe penetration length be changed later?
This variant includes a 2.0 in standoff adapter and 5.1 in penetration. Changing these requires a different model suffix or a compatible external adapter.
