Product Details

Schneider aims to bring Sustainability and Efficiency for all. Modicon Quantum system is the advanced PLC system.

Product Introduction

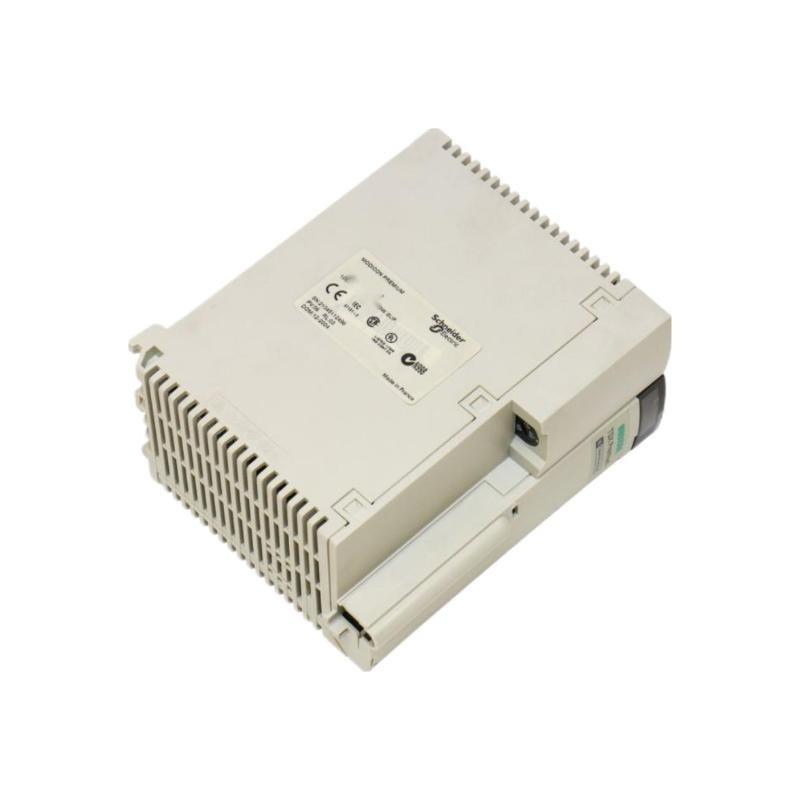

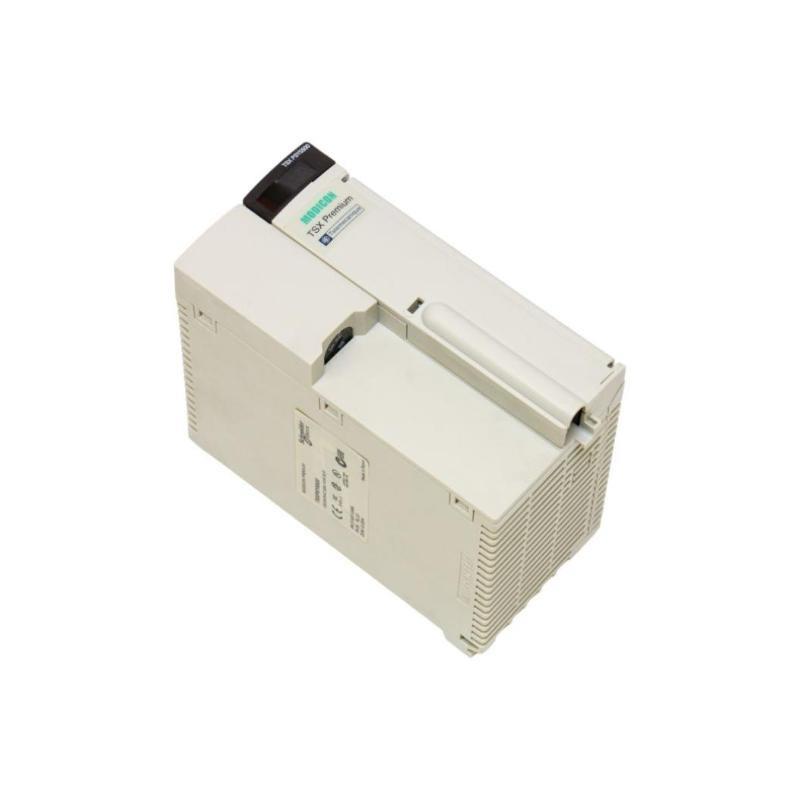

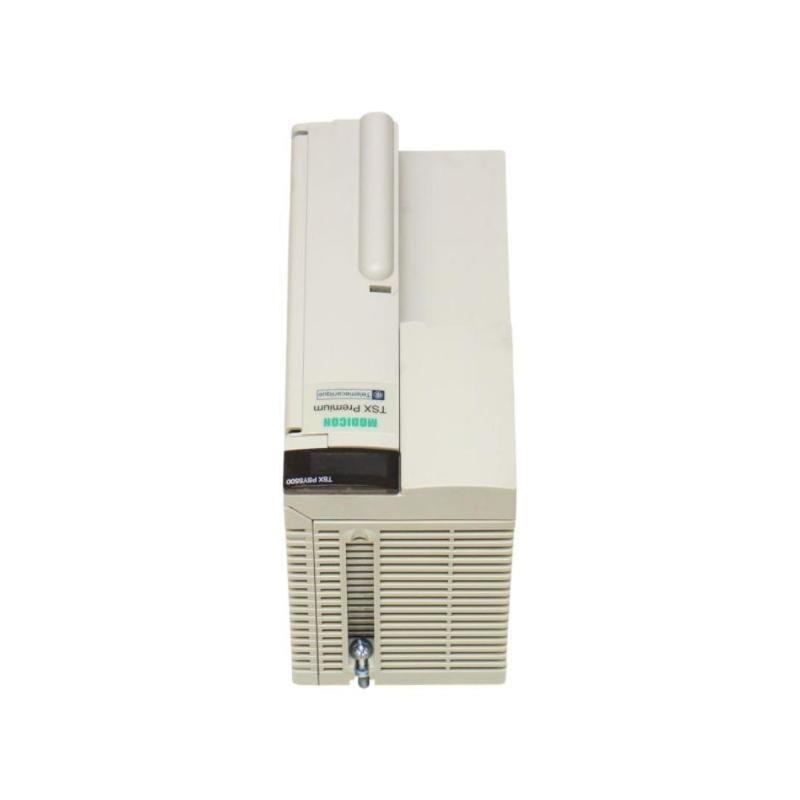

Schneider TSXPSY5500M Power Module 12-Month Warranty

Brand：Schneider

Item No.：TSXPSY5500M

Product Type：Power Module

Product Origin：France

Dimensions：95 x 180 x 260 mm

Weight：0.62kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original imported channel supply, support for testing instructions, worry-free after-sales

Large stock, diverse series, adapt to different working conditions, welcome to consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the purpose of the TSXPSY5500M module?
It is used to supply the necessary low‑voltage DC rails (5 V and 24 V) for a Modicon Premium PLC system, converting mains AC power into usable DC for the processor and I/O modules.

What input voltages does it support?
It supports both 100‑120 V AC and 200‑240 V AC input ranges.

What are the available secondary outputs and their capacities?
5 V DC at up to ~7 A (35 W) and 24 V DC at ~0.8 A (19 W), total up to 50 W.

What kind of protection does the module provide?
The module includes a time‑delayed primary fuse and secondary protections for overload, short‑circuit and over‑voltage.

What is the operating temperature range?
0 °C to +60 °C, and for storage ‑25 °C to +70 °C.

What is the module format and protection class?
It is in the “Double” module format (wider than standard single) and has an IP20 protection rating.

What is the weight and approximate dimensions?
Weight is 0.62 kg. Dimensions are 95 x 180 x 260 mm.

If one of the DC outputs fails, what happens?
If the secondary output is overloaded or short‑circuited, the built‑in protection will interrupt that output. The mains side is also protected. The system may lose some DC rail power and this must be investigated and corrected.
