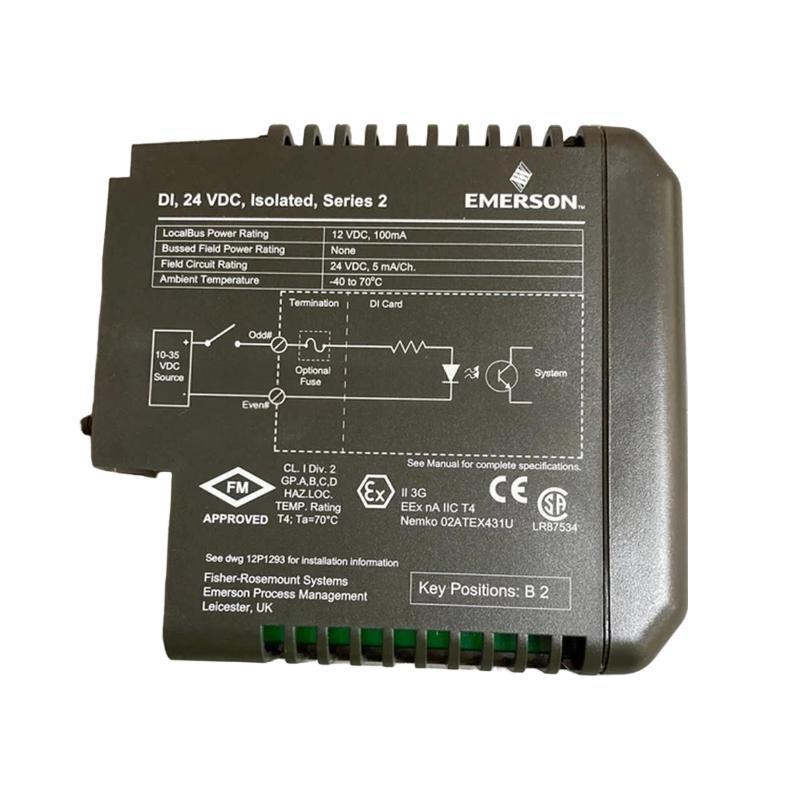

Emerson VE4001S3T1B2 Discrete Input Card Original

FAQ

What is the primary function of the VE4001S2T1B2 discrete input card?
This module captures signals from field devices using dry contacts and transmits the information to the control system, enabling accurate monitoring and control of industrial processes.

How many input channels does the module support, and are they isolated?
The card provides 8 fully isolated input channels, ensuring that any fault in one channel does not affect the remaining channels or the system.

Which types of input signals can be connected to this card?
The module supports potential-free dry contact signals, including normally open (NO) and normally closed (NC) contacts, suitable for various industrial applications.

Does the module provide protection against electrical interference or surges?
Yes, the module offers 2500 V RMS isolation between channels and between channels and the system, protecting the control system from electrical noise and faults.

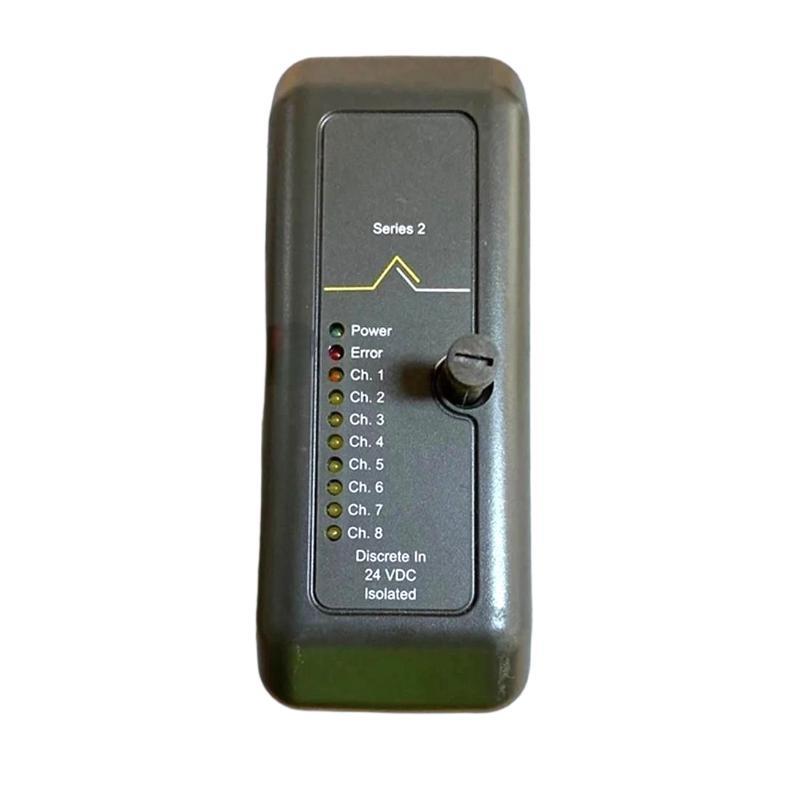

How can I visually check the status of each input channel?
Each channel has an LED indicator showing the current contact state, allowing operators to quickly verify operation without additional testing equipment.

Is this input card compatible with Emerson control systems?
Yes, it is compatible with DeltaV and Ovation control systems, providing seamless integration into existing automation networks.

What diagnostic features are included with this card?
The module includes built-in diagnostics that detect open circuits, short circuits, and channel faults, helping maintain reliable operation and reduce downtime.

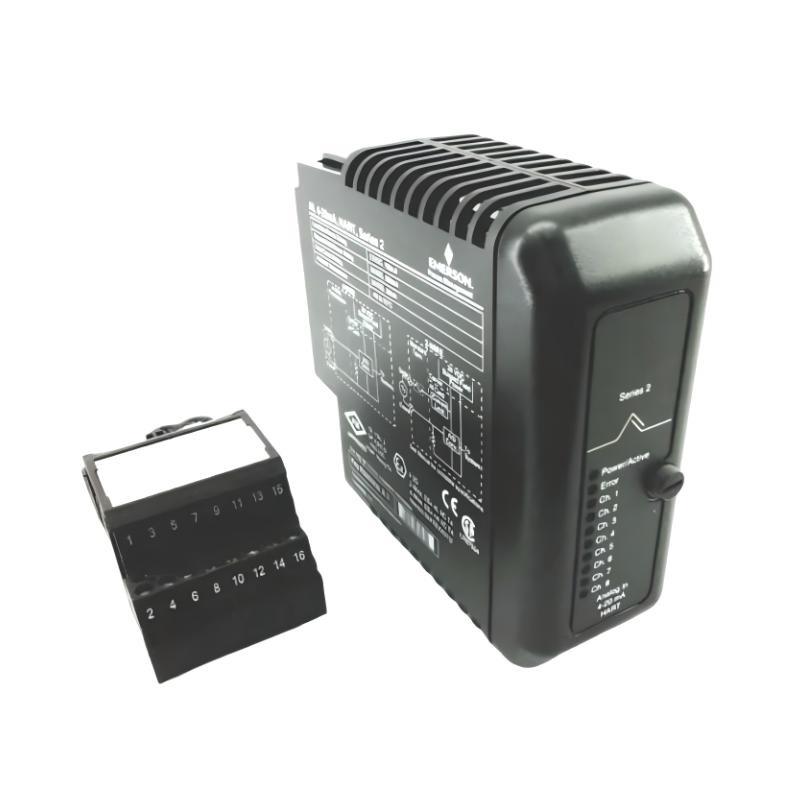

How is field wiring connected to the VE4001S2T1B2 card?
Field devices connect via removable terminal blocks, which simplify wiring, replacement, and maintenance without disturbing adjacent modules.
