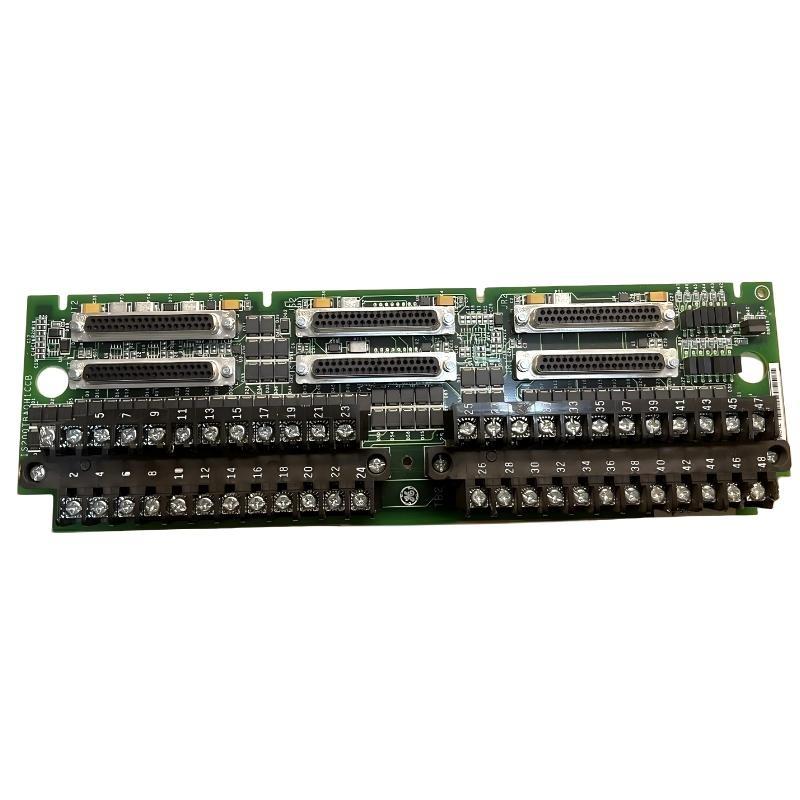

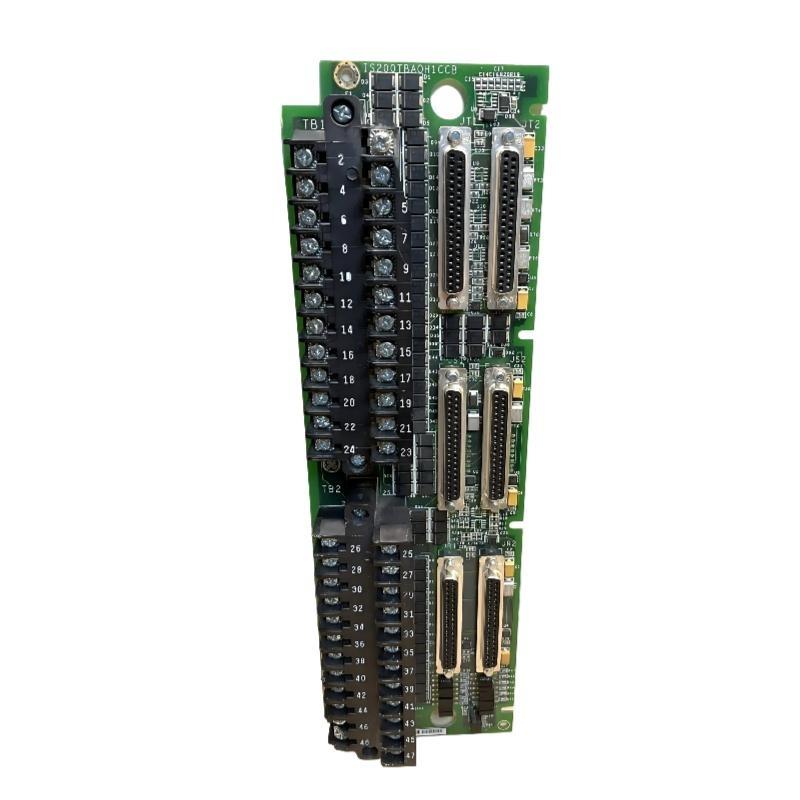

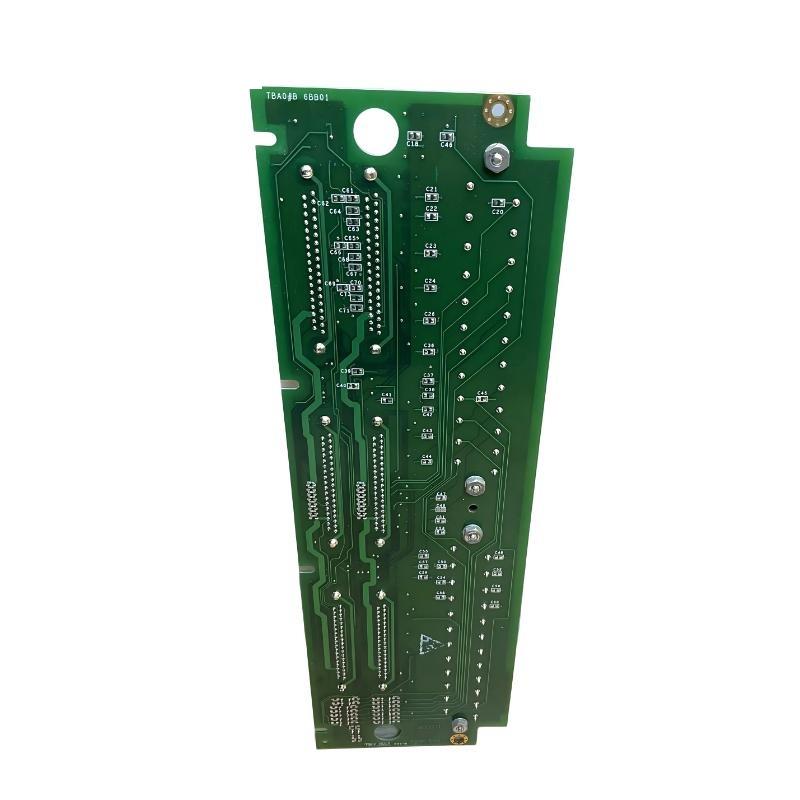

GE IS200TBAOH1CCB Analog Output Terminal Board Fast Shipping!

FAQ

What is the main purpose of the IS200TBAOH1CCB terminal board?
Its main role is to distribute and condition analog output signals generated by the controller so they can be accurately delivered to field instruments or actuators.

Does this board support multiple analog output types?
Yes, it can handle both current-loop and voltage-based outputs, depending on how the associated controller channels are configured.

How does the board ensure reliable signal transmission?
It includes filtering, isolation barriers, and stable grounding paths to maintain accuracy and prevent distortion from electrical noise.

Is the IS200TBAOH1CCB interchangeable with other TBAO series boards?
It must match the system’s hardware revision, but within the same series, many boards share similar layouts, allowing controlled interchangeability.

How is field wiring handled on this board?
It uses labeled terminal blocks that allow straightforward wiring and simplify maintenance, diagnostics, and signal tracing.

What type of isolation is provided?
The board incorporates channel-to-channel and channel-to-ground electrical isolation to protect the control system from external disturbances.

Can this board be used in high-noise industrial environments?
Yes, it is built with robust PCB layout strategies and shielding paths designed specifically for turbine halls, power plants, and heavy-industry settings.

Does replacing the board require recalibrating analog channels?
Generally, no. As long as the replacement is the same model and revision, existing calibration data stored in the controller remains valid.
