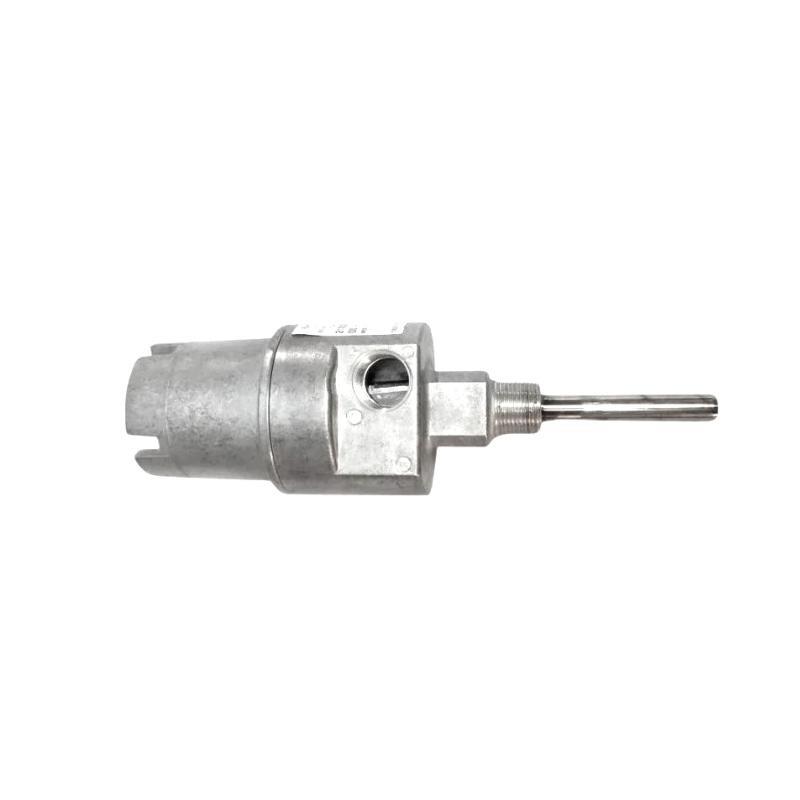

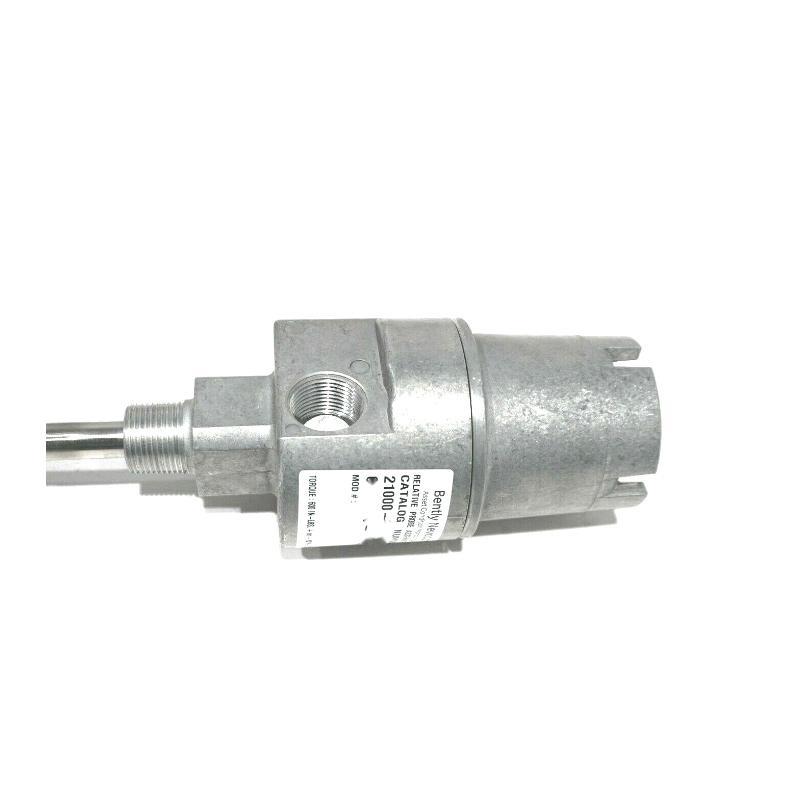

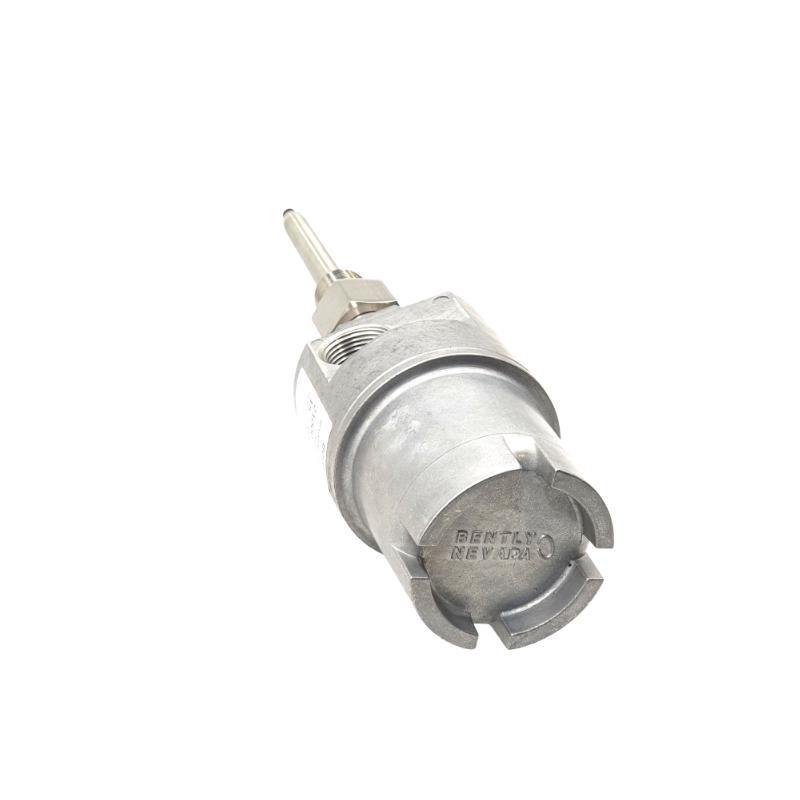

Bently Nevada 21000-28-05-00-073-03-02 Proximity probe housing / assembly 30-Day Returns！

FAQ

What does “28‑05‑00‑073‑03‑02” in the model number represent?
“28” designates a 3300 XL 8 mm probe with selectable approvals; “05” is the 0.5 m cable length; “00” indicates no standoff adapter; “073” sets the penetration depth to 7.3 in; “03” is the fitting configuration; “02” is the 3/4‑14 NPT mounting thread.

Is the proximity probe included with this housing?
Yes. The housing is supplied with the 3300 XL 8 mm proximity probe installed and wired.

What are the physical dimensions and weight?
Approximately Ø50 mm in diameter and 185 mm in length; weight is about 1.1 kg (excluding fittings).

What materials are used in the construction of this assembly?
The body is aluminum, and the sleeve (probe support) is made of 304 stainless steel.

What operating temperature range is supported?
The assembly supports –51 °C to +177 °C for both operation and storage.

What fittings are included under the “03” option?
It includes a 3/4‑14 NPT plug, a 3/4‑14 to 1/2‑14 NPT reducer, and a cable seal grip for various cable sizes.

Can this housing assembly be used in hazardous environments?
Yes. It is designed for explosion‑proof use and meets CSA / API 670 standards when properly configured.

Can I add a standoff adapter or change penetration later?
This variant has no standoff adapter. To use one or alter the penetration length, you need to order a different suffix variant or a compatible adapter.
