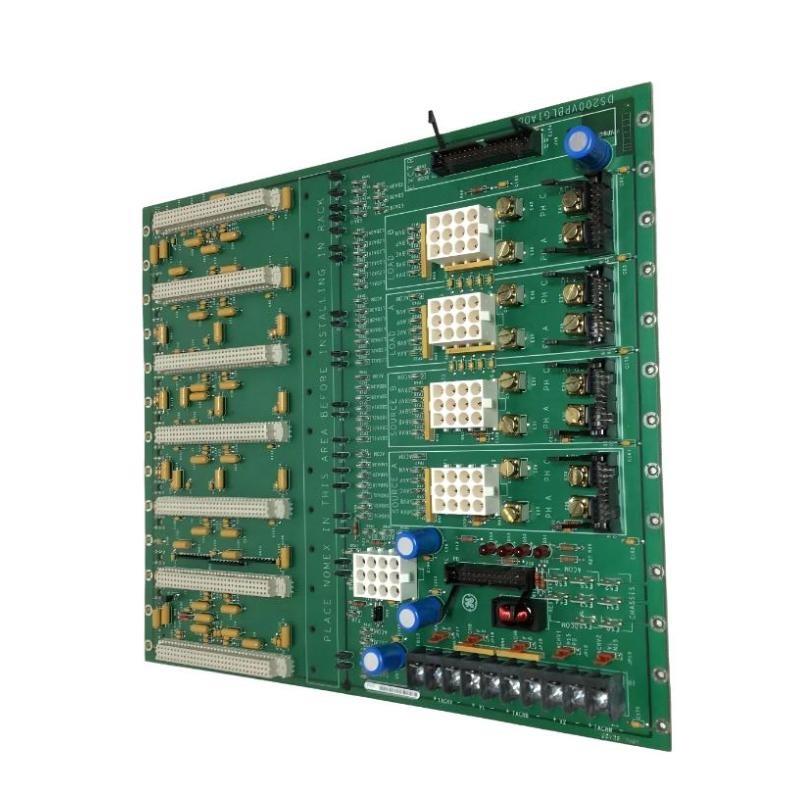

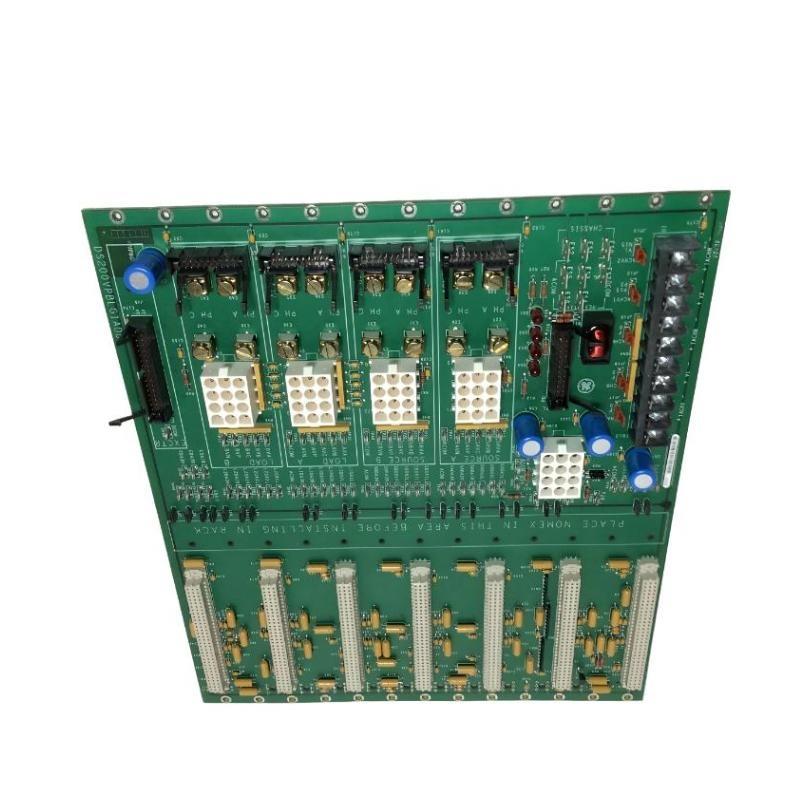

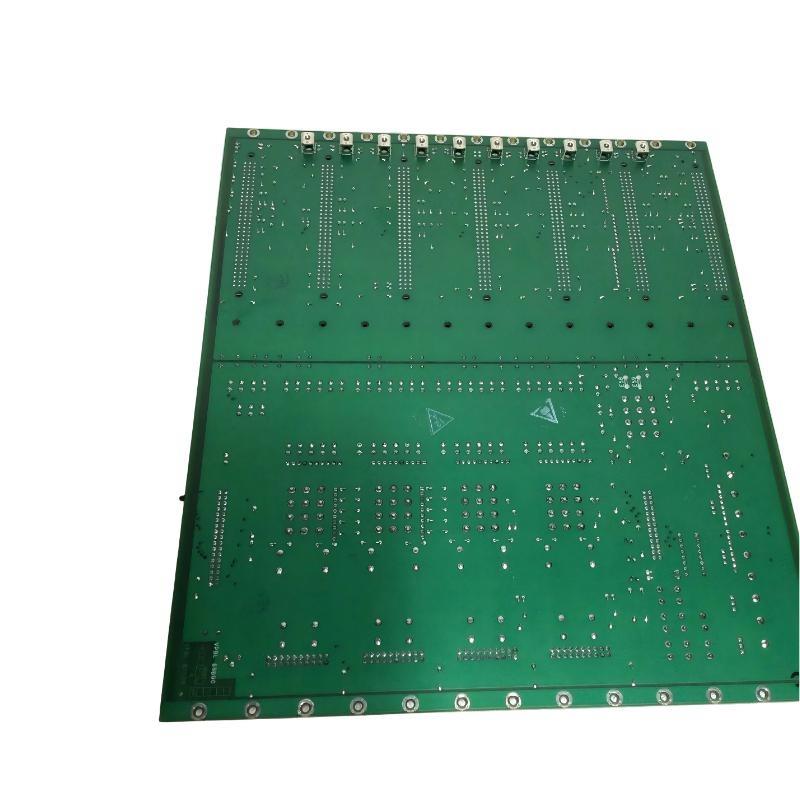

GE DS200VPBLG1ADD Mark V VME Backplane Board Fast Shipping!

FAQ

What is the main function of the DS200VPBLG1ADD VME Backplane Board?
It provides the essential communication, power distribution, and interconnection pathways for VME-based cards within the Mark V control system.

How does this backplane support module communication?
It uses VMEbus architecture to route data, control, and interrupt signals between all installed modules.

Can this backplane board be used with non-GE VME modules?
It is designed specifically for Mark V system modules, and using third-party boards is not recommended due to signal integrity and compatibility requirements.

What happens if a slot or bus line on the backplane becomes damaged?
The affected module may lose communication, experience intermittent faults, or fail to initialize properly, requiring board replacement.

Does the DS200VPBLG1ADD provide any form of electrical protection?
Yes, it incorporates controlled grounding, power bus management, and routing practices that help mitigate electrical noise and cross-talk.

How can system faults related to the backplane be diagnosed?
Faults often appear as communication errors, module dropout, or diagnostic codes, which can be traced through module LEDs and system fault logs.

Are there firmware or software elements associated with this board?
No, the backplane is purely hardware-based and contains no programmable components.

What precautions should be taken during installation?
Ensure proper chassis grounding, avoid bending connectors, use ESD protection, and verify alignment of all VME modules before securing them.
