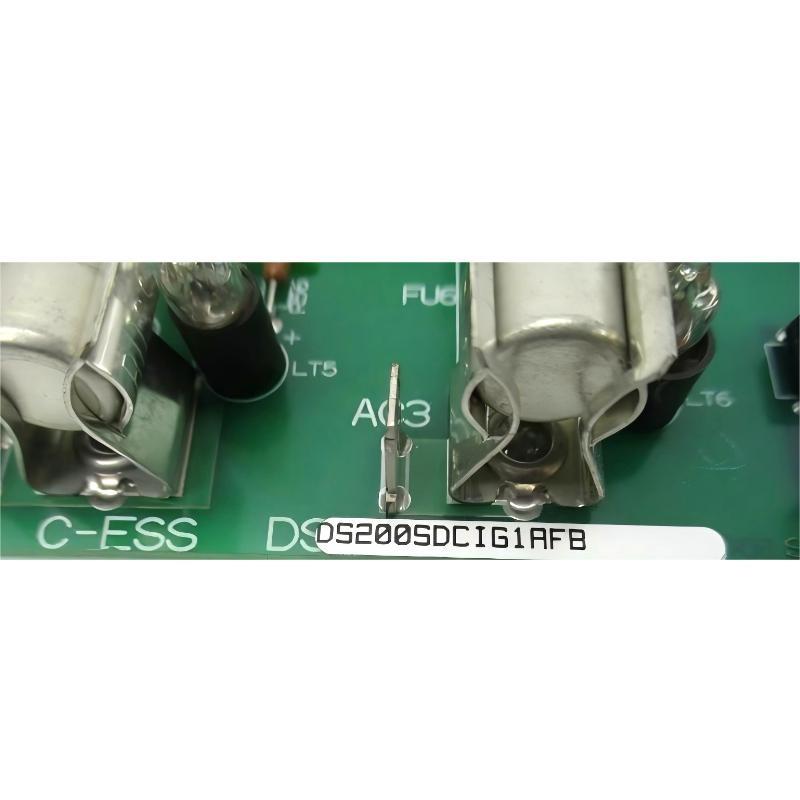

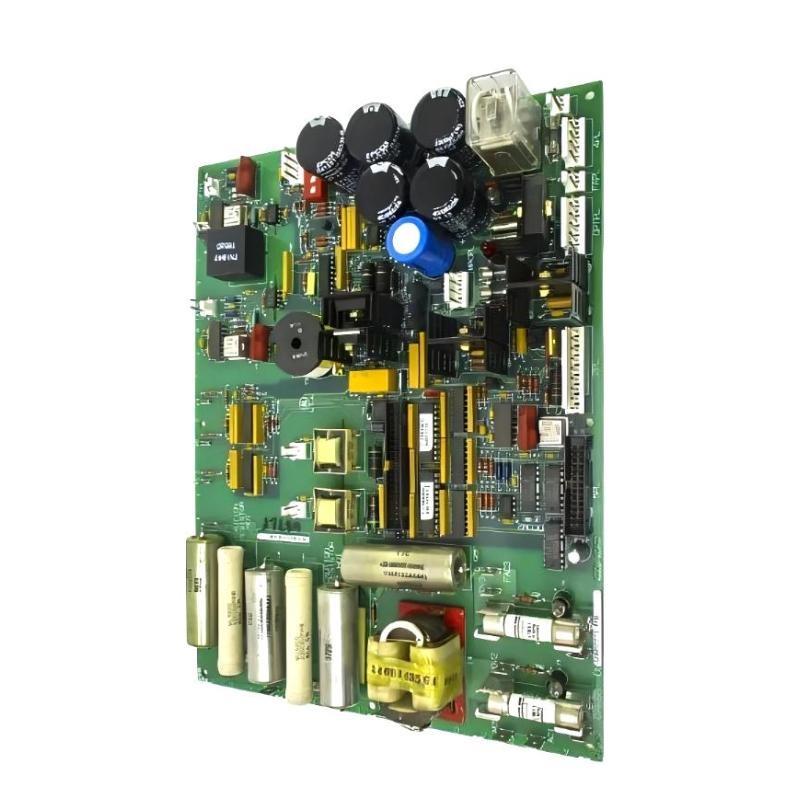

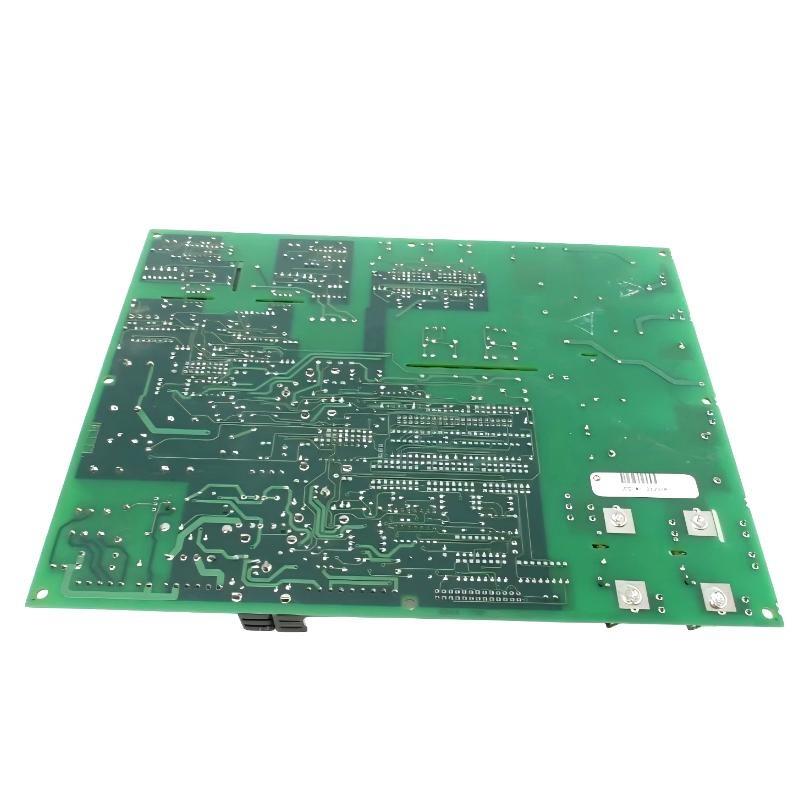

GE DS200SDCIG1AFB Mark V Power Supply Instrumentation Board 12-Month Warranty

FAQ

What does the DS200SDCIG1AFB board do in the Mark V system?
It monitors power supply conditions, supervises voltage levels, and provides instrumentation data to ensure stable operation of the control system.

Does this board handle both AC and DC power monitoring?
Yes, it is designed to monitor multiple supply types, ensuring reliable power feedback across system components.

What type of protection features are included on the board?
It incorporates overvoltage detection, fault indication, and supply health monitoring for preventive system protection.

Is any software configuration needed when installing this board?
Typically only system-level parameter checks are required; the board itself does not require firmware loading or programming.

How does the board communicate with the Mark V controller?
It connects through the control system backplane, transferring monitored power metrics to the main processor.

What happens if the board detects an abnormal supply condition?
It sends diagnostic flags and alarms, enabling the Mark V system to take corrective or protective actions.

Can this board be used in redundant power architectures?
Yes, it supports redundant supply configurations when used with paired system modules.

What typical applications require this instrumentation board?
It is used in turbine control systems requiring precise supply monitoring, fault detection, and system reliability assurance.
