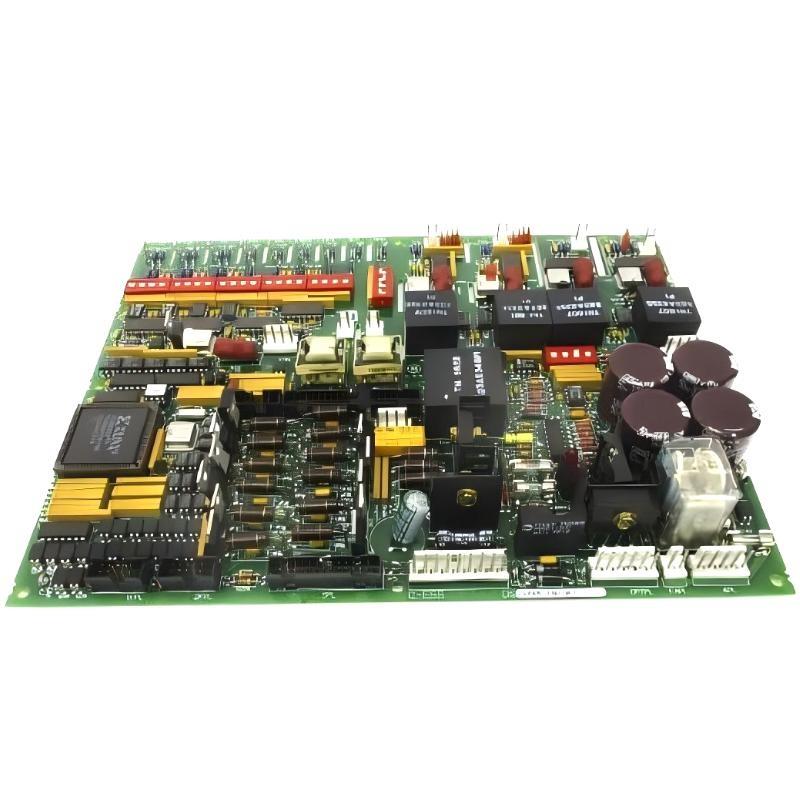

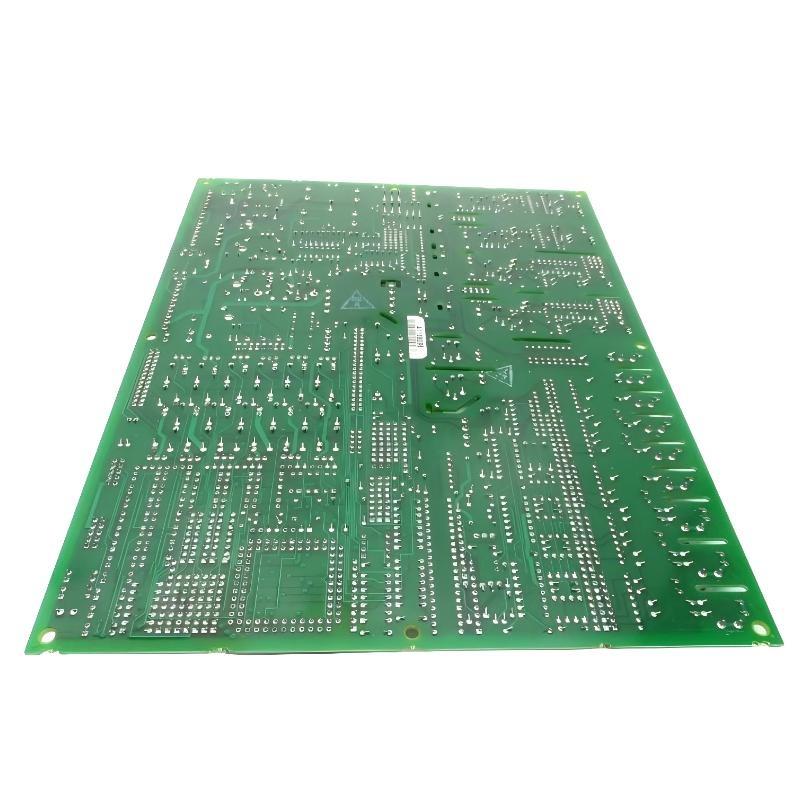

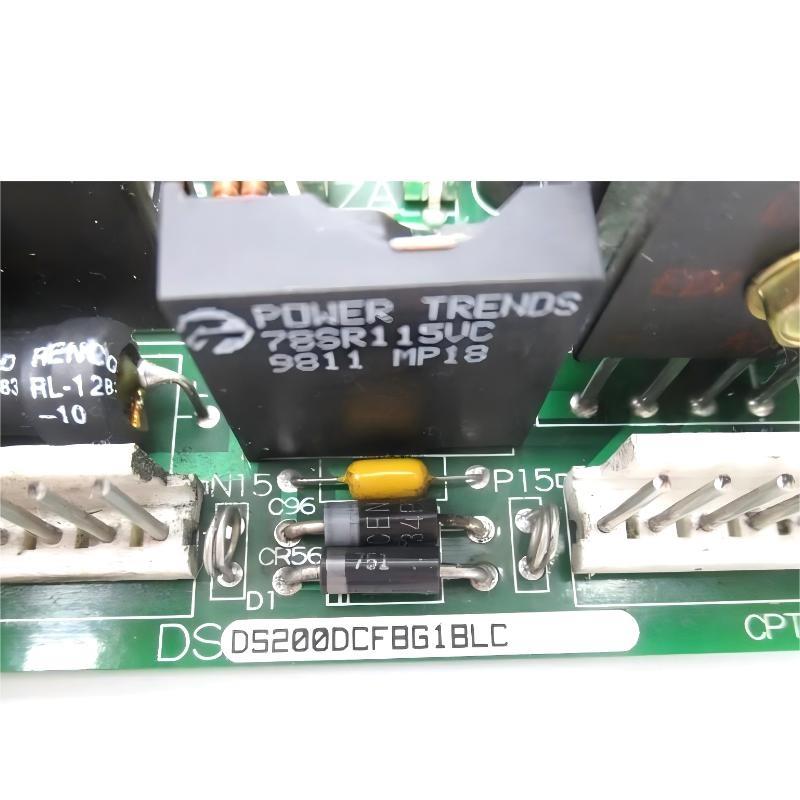

GE DS200DCFBG1BLC Mark V DC Power Supply Feedback Board Original

FAQ

What is the primary purpose of the DS200DCFBG1BLC board in a Mark V system?
It provides accurate DC power rail feedback to supervisory circuits, allowing the system to monitor and respond to power conditions.

Which power rails does this board typically monitor?
It covers multiple internal DC rails used by the Mark V platform, including regulated and auxiliary supply lines.

Does the board perform any form of signal isolation?
Yes, isolation stages are used to protect the control logic from noise and transient disturbances on the DC rails.

How is feedback information transferred to the main control processor?
Conditioned feedback signals are routed through dedicated connectors to the Mark V power management modules.

What protections are built into the board to ensure reliable operation?
It incorporates transient suppression components, filtering networks, and stable ground referencing.

Is the DS200DCFBG1BLC an active or passive monitoring board?
It is primarily a passive feedback and conditioning board, relying on connected diagnostic circuits for processing.

How critical is this board for turbine control system stability?
It is essential, as incorrect feedback on DC power health can lead to unnecessary system shutdowns or false alarms.

What should be checked before replacing or installing this board?
Ensure all DC rails are isolated, connectors are clean, grounding points are stable, and wiring harness alignment matches the Mark V power assembly.
