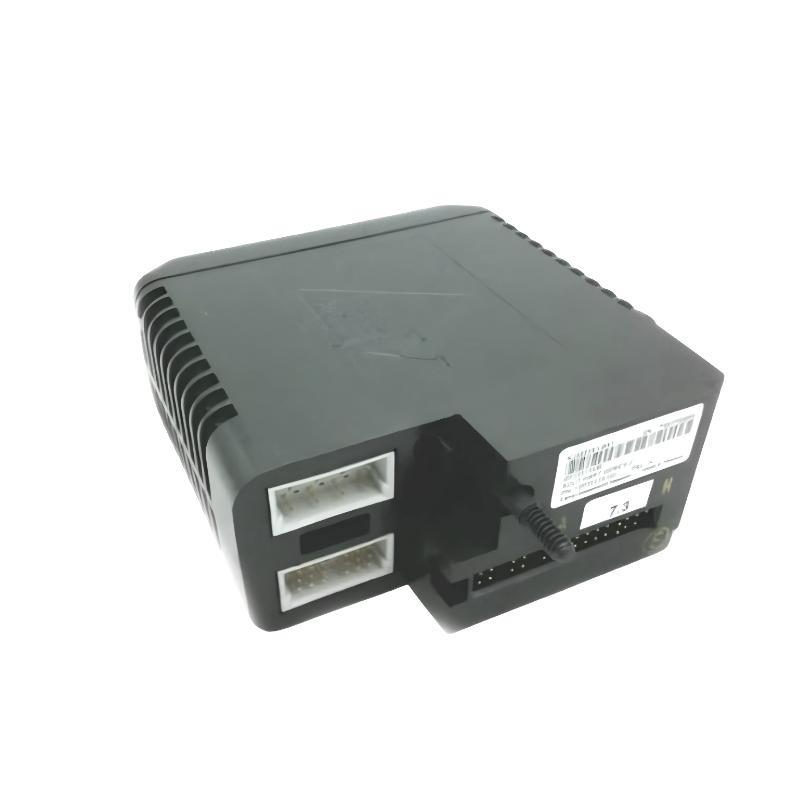

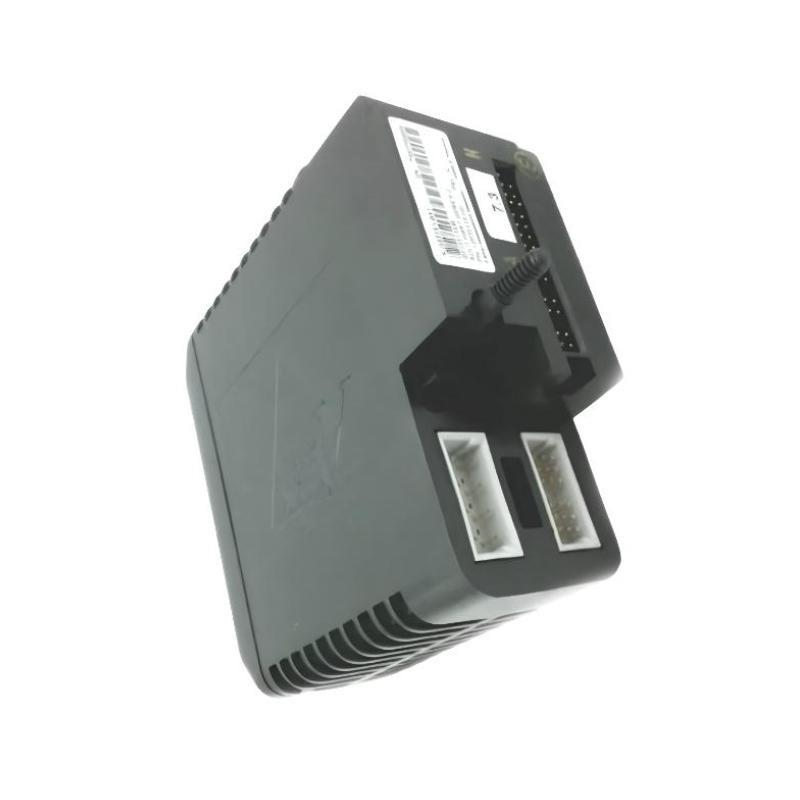

Emerson VE4001S2B1 KJ3222X1-BA1 Analog Input Card Original

FAQ

What is the primary function of the Emerson VE4001S2B1 / KJ3222X1-BA1 Analog Input Card?
This card is used to acquire analog signals from field devices such as sensors and transmitters, converting them into digital signals for processing by the control system.

How many input channels does this analog card provide?
It provides 8 independent analog input channels, allowing simultaneous monitoring of multiple process variables.

Which types of signals can the card process?
The card can handle both voltage signals (0–10 V) and current signals (4–20 mA), making it suitable for a variety of industrial sensors and transmitters.

How does the card ensure signal accuracy and reliability?
It features a 16-bit A/D converter with ±0.1% full-scale accuracy and channel-to-channel isolation, ensuring precise signal measurement and minimizing interference.

What is the typical response time for this analog input card?
The card responds to changes in input signals in less than 5 milliseconds, supporting real-time control and monitoring applications.

How can users verify the operational status of each channel?

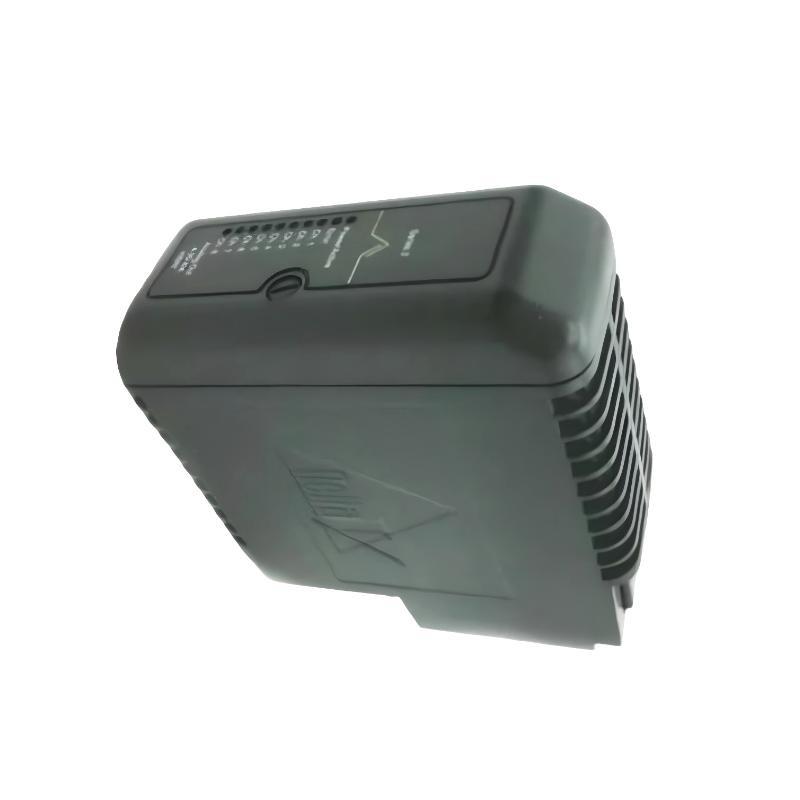

LED indicators display the status of each input channel and power condition, providing clear visual feedback for diagnostics and monitoring.

Is the card compatible with existing VE4000 Series systems?
Yes, it is fully compatible with VE4000 Series backplanes and modules, ensuring seamless integration into Emerson control systems.

What mounting options are available for this analog input card?
The card can be installed on a DIN rail or within a module rack, offering flexible integration into standard control system enclosures.
