Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

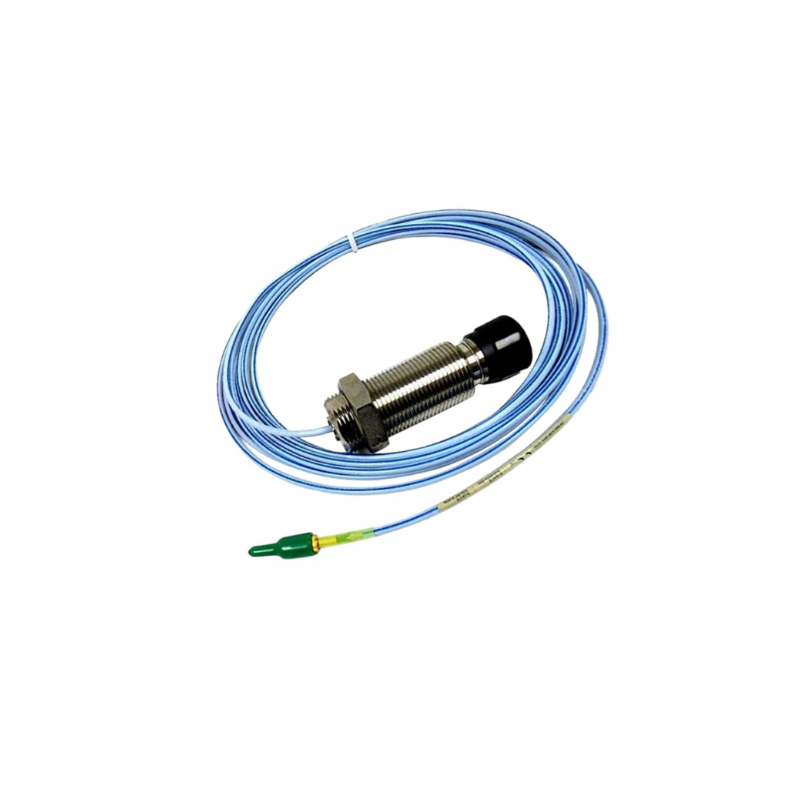

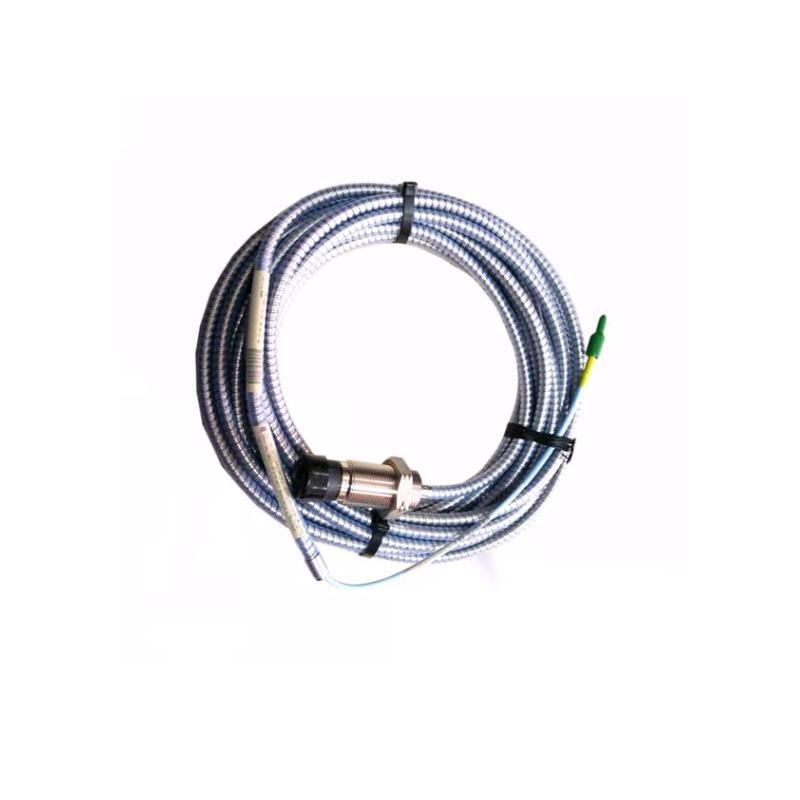

Bently Nevada 330851-02-000-078-10-01-05 3300 NSv (Narrow Side-view) Proximity Probe 100% New

Brand：Bently Nevada

Item No.：330851-02-000-078-10-01-05

Product Type：3300 NSv (Narrow Side-view) Proximity Probe

Product Origin：USA

Dimensions：Probe tip diameter: 5 mm ; Overall case length: 7.8 in ; Total length: 10.0 metres

Weight：0.65 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original overseas introduction, testing assistance instructions support, stable and reliable service

Wide coverage of models, efficient delivery, welcome to contact us for information!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the function of the 330851-02-000-078-10-01-05 probe?
It measures shaft vibration and position in small or confined rotating machinery, especially where extended reach is required.

What does “02-000-078” indicate in the model number?
“02” identifies the 5 mm probe type, “000” denotes standard factory calibration, and “078” indicates an overall case length of 7.8 inches.

What does “10-01-05” specify?
“10” represents a total probe length of 10.0 metres, “01” indicates the connector configuration, and “05” denotes the inclusion of a 5 ft extension cable.

Which proximitor sensor is compatible with this probe?
It is designed to work with the Bently Nevada 3300 NSv Proximitor Sensor for narrow side-view applications.

Can this probe operate in tight or harsh environments?
Yes, the narrow side-view design and stainless-steel housing make it suitable for compact spaces and industrial conditions.

What type of output does it provide?
It provides a voltage output proportional to shaft vibration and displacement.

What is the operating temperature range?
The probe operates reliably from -35 °C to +177 °C (-31 °F to +350 °F).

What are the physical dimensions and weight of this probe?
Probe tip diameter: 5 mm ; Overall case length: 7.8 in ; Total length: 10.0 metres ; Weight: ≈ 0.65 kg.
