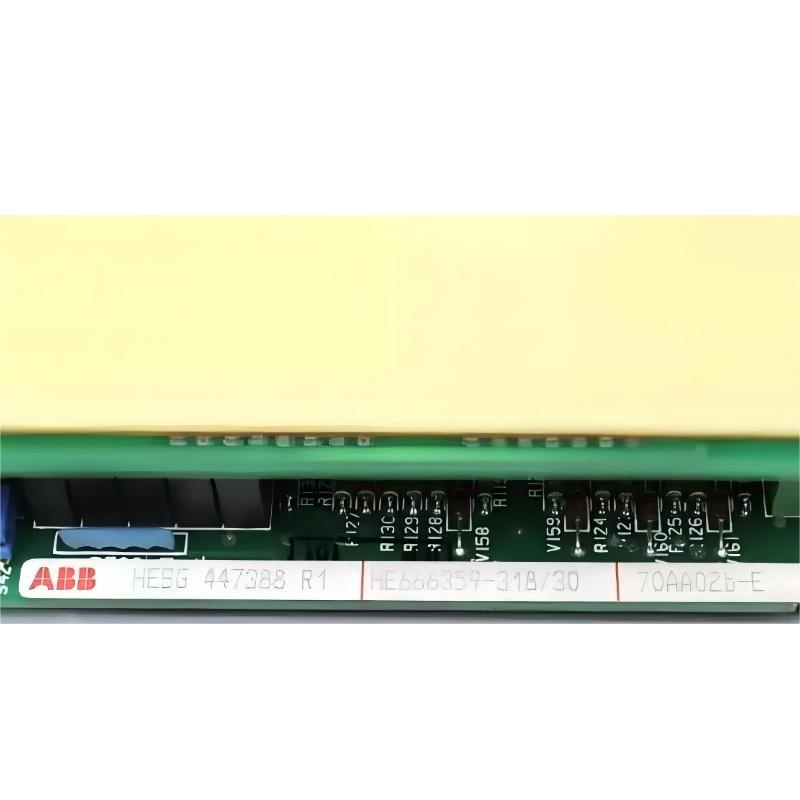

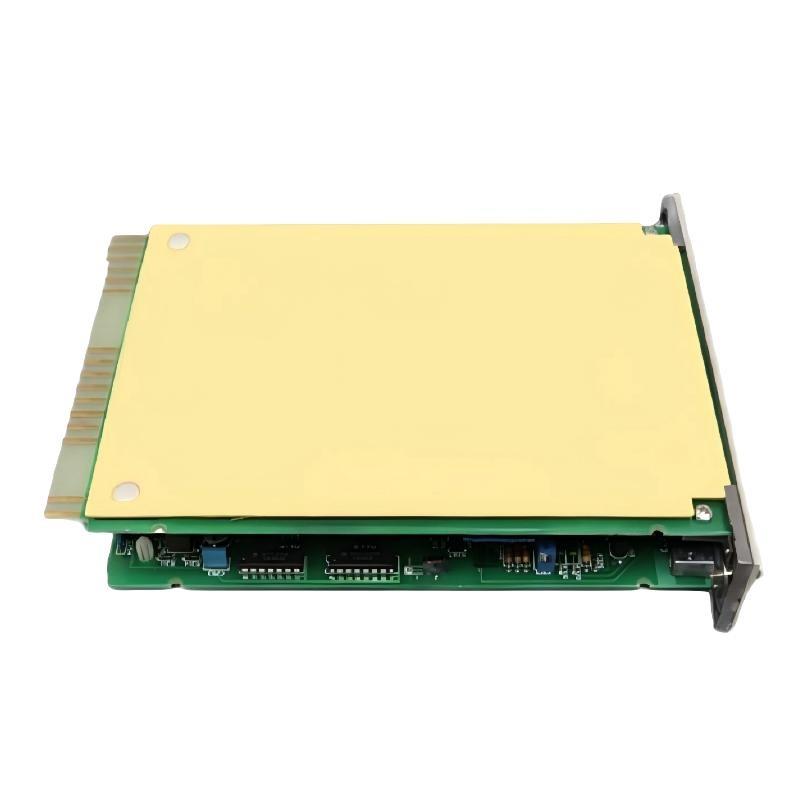

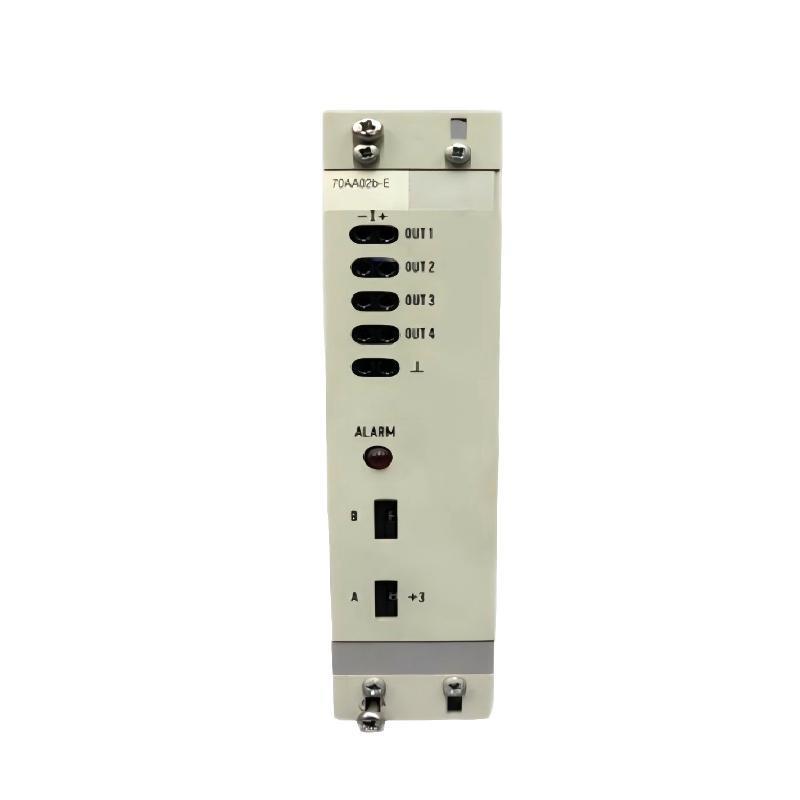

ABB 70AA02B-E HESG447388R1 Analog Output Module 12-Month Warranty

FAQ

What is the primary function of the ABB 70AA02B-E Analog Output Module?
The ABB 70AA02B-E module converts digital control signals from the control system into precise analog output signals, enabling accurate control of actuators, valves, and other field devices.

How many analog output channels does this module provide?
It provides eight fully isolated analog output channels, each capable of handling voltage or current signals depending on configuration.

What type of output signals can the ABB 70AA02B-E generate?
The module supports both voltage (0–10 V) and current (4–20 mA) output modes, allowing flexible integration with a wide range of industrial devices.

Is the ABB 70AA02B-E protected against electrical interference?
Yes, the module features galvanic isolation between channels and the system bus to minimize noise, interference, and ground loop issues.

How is the module connected to the ABB control system?
It connects directly to the ABB system’s backplane or communication bus, ensuring seamless data exchange and synchronization with the control unit.

Does the module require external calibration?
The module is factory-calibrated and typically requires no external calibration, though periodic verification may be performed during system maintenance.

What applications typically use the ABB 70AA02B-E module?
It is commonly used in process automation, power generation, and manufacturing systems for controlling proportional devices such as valves, drives, and analog actuators.

Can the ABB 70AA02B-E operate reliably in harsh industrial environments?
Yes, it is designed for industrial-grade durability, operating efficiently across a wide temperature range and offering robust performance in demanding field conditions.
