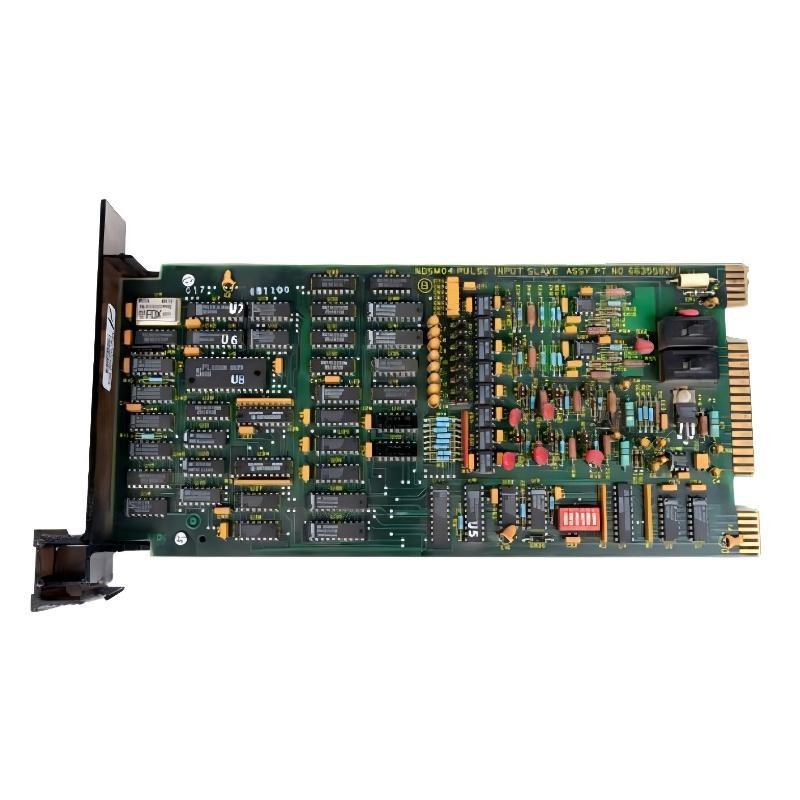

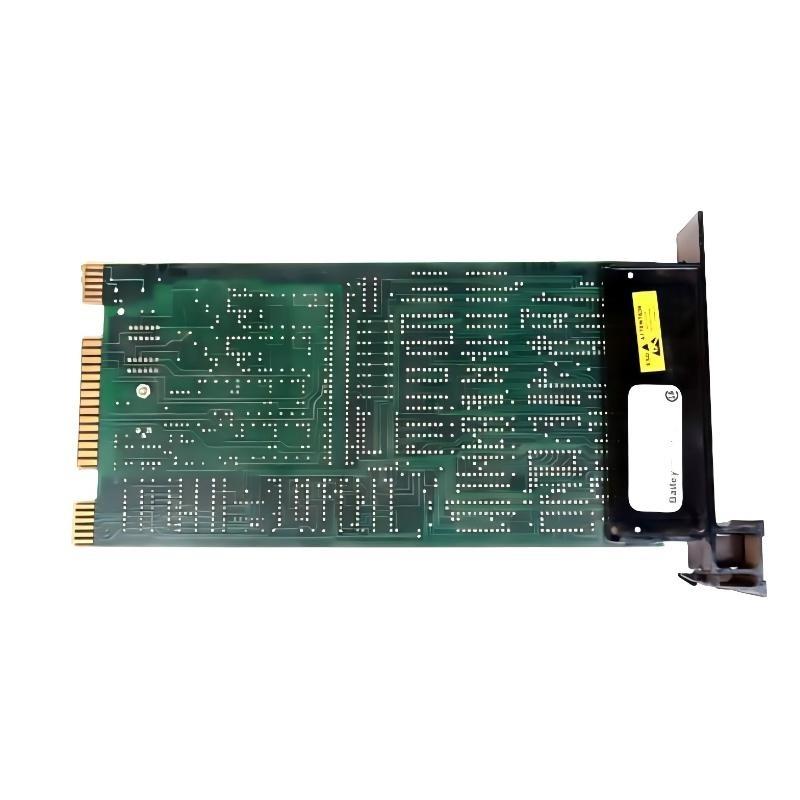

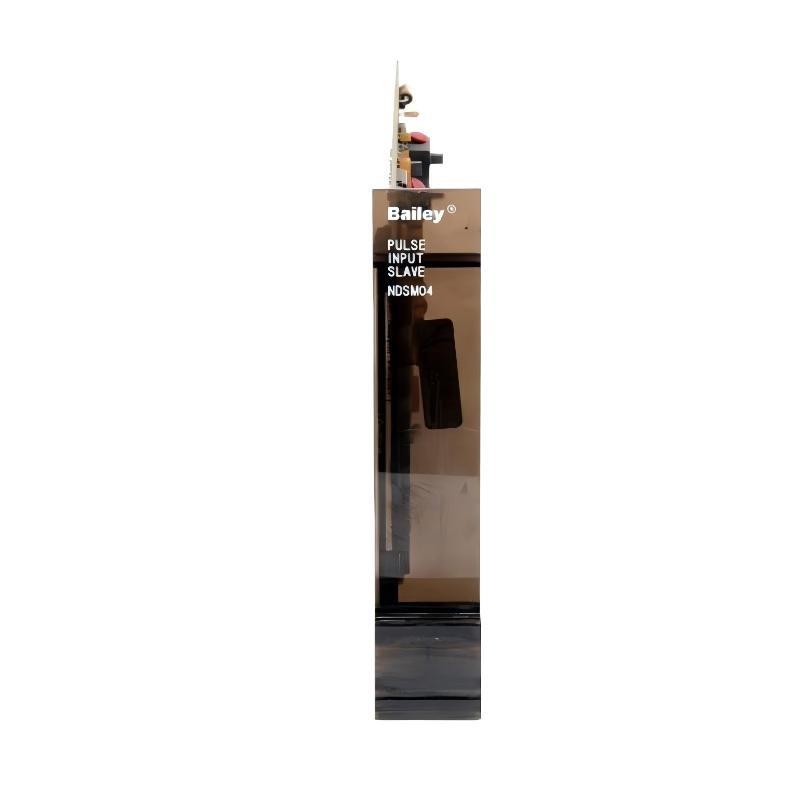

ABB Bailey NDSM04 Digital Slave Input Module 12-Month Warranty

FAQ

What is the primary role of the NDSM04 module?
The NDSM04 module serves as a digital slave input module, collecting discrete signals from field devices and sending them to the INFI 90 control system for monitoring and control.

How many input channels does the NDSM04 provide?
It provides 32 isolated digital input channels for simultaneous monitoring of multiple signals.

What types of input signals are supported?
The module supports both dry contact inputs and DC voltage inputs, making it adaptable to various field devices.

How is signal integrity ensured on the NDSM04?
Signal integrity is maintained through optical isolation, debounce circuitry, and integrated noise suppression filters.

Does the NDSM04 offer diagnostic capabilities?
Yes, it includes channel fault detection, self-test diagnostics, and LED indicators for real-time status monitoring.

How does the NDSM04 interface with the control system?
Communication occurs via the INFI-NET Module Bus, allowing seamless integration with the system controller.

What are the power requirements for the NDSM04?
The module operates on 24 VDC nominal voltage and consumes less than 10 W under normal operation.

In which applications is the NDSM04 typically used?
The module is commonly used in industrial automation, process control systems, and power plants for monitoring switches, alarms, interlocks, and other discrete input signals.
