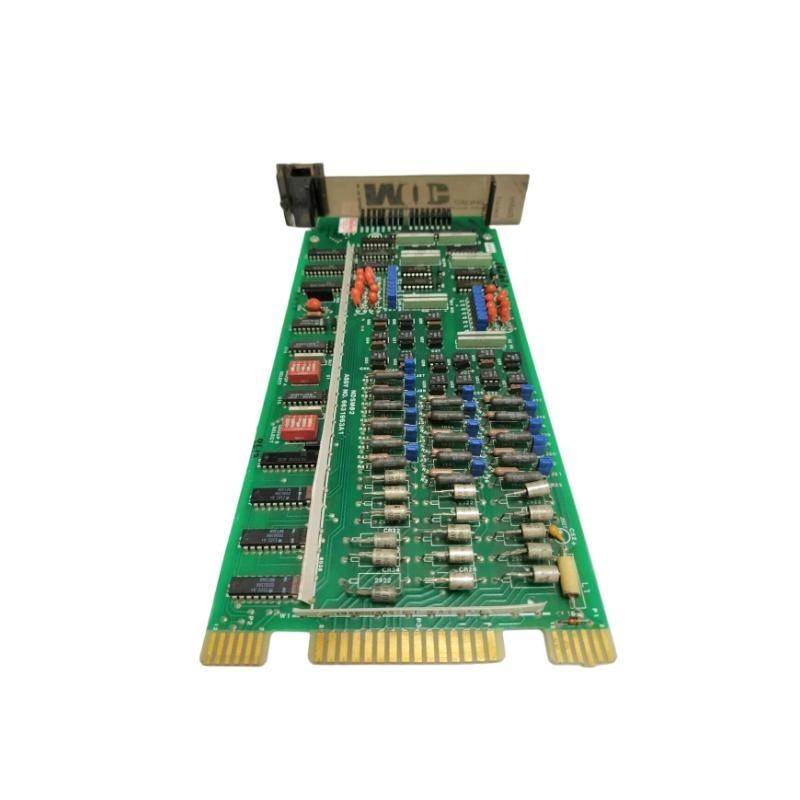

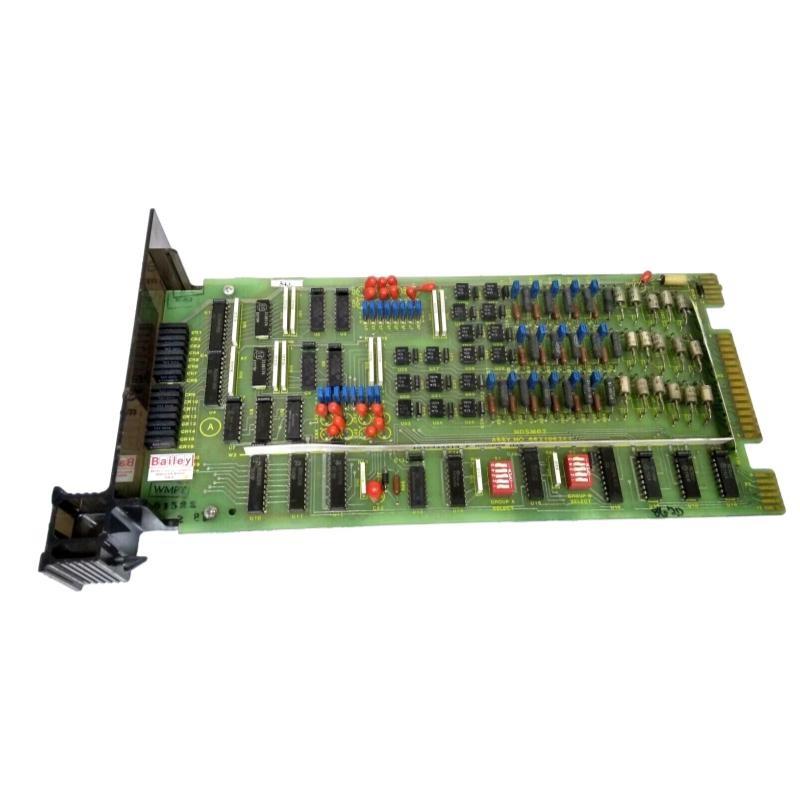

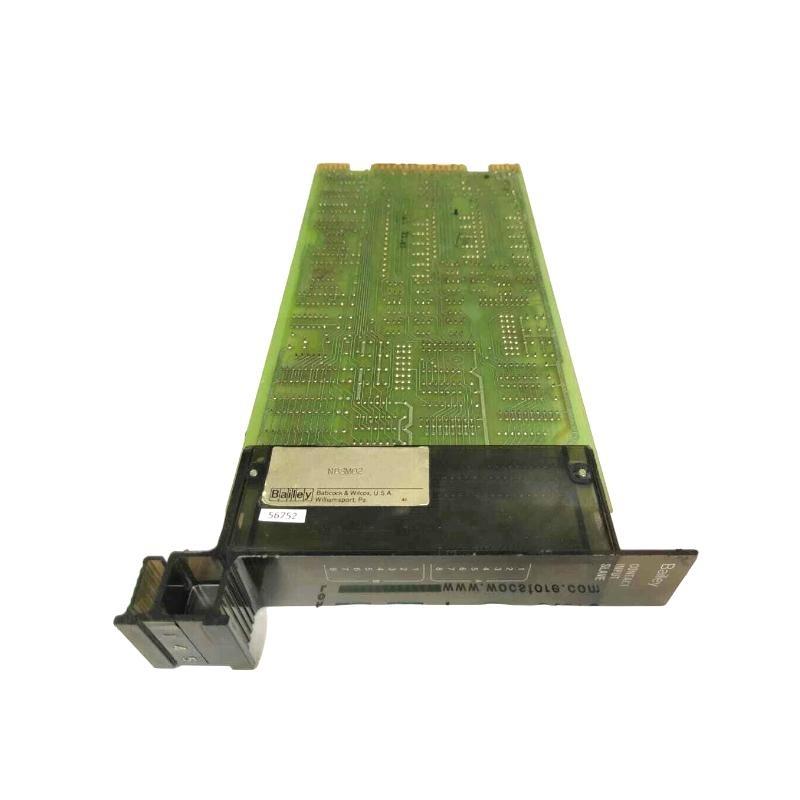

ABB Bailey NDSM02 Digital Slave Input Module Trusted supplier

FAQ

What is the main function of the ABB Bailey NDSM02 module?
The NDSM02 serves as a digital slave input module that interfaces field digital signals to the INFI 90 distributed control system for monitoring and logic operations.

How many digital inputs are supported by the NDSM02?
It provides 16 optically isolated digital input channels, ensuring signal reliability and protection against noise interference.

What types of input signals can be connected to the NDSM02?
The module supports both dry contact and DC voltage input signals, offering flexibility in various control applications.

How does the NDSM02 ensure signal stability?
The module is equipped with noise suppression filters, debounce logic, and channel isolation to guarantee accurate and stable digital signal acquisition.

Does the NDSM02 include diagnostic capabilities?
Yes, it features onboard self-diagnostics, channel fault monitoring, and LED indicators that display operational and fault statuses.

How does the NDSM02 communicate with other system modules?
Communication occurs via the high-speed Module Bus, which connects the module to the system’s controller within the INFI-NET network.

What power supply is required for the NDSM02?
The module operates with a 24 VDC nominal power input and typically consumes less than 8 watts during normal operation.

What are the typical applications for the NDSM02 module?
The NDSM02 is commonly used in industrial process automation, power plants, and manufacturing systems to acquire discrete signals from switches, alarms, and safety interlocks.
