Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

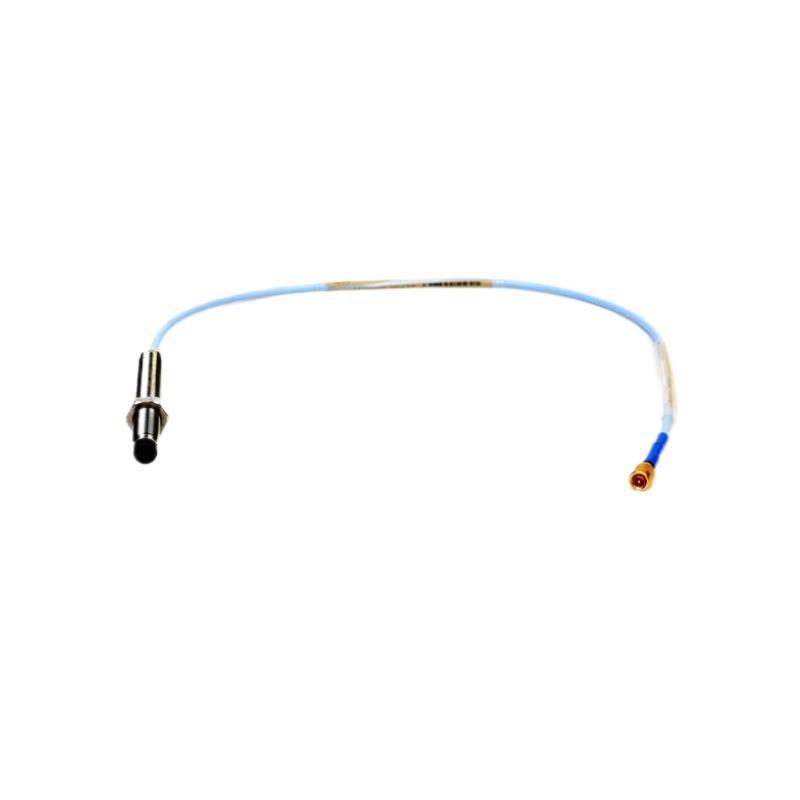

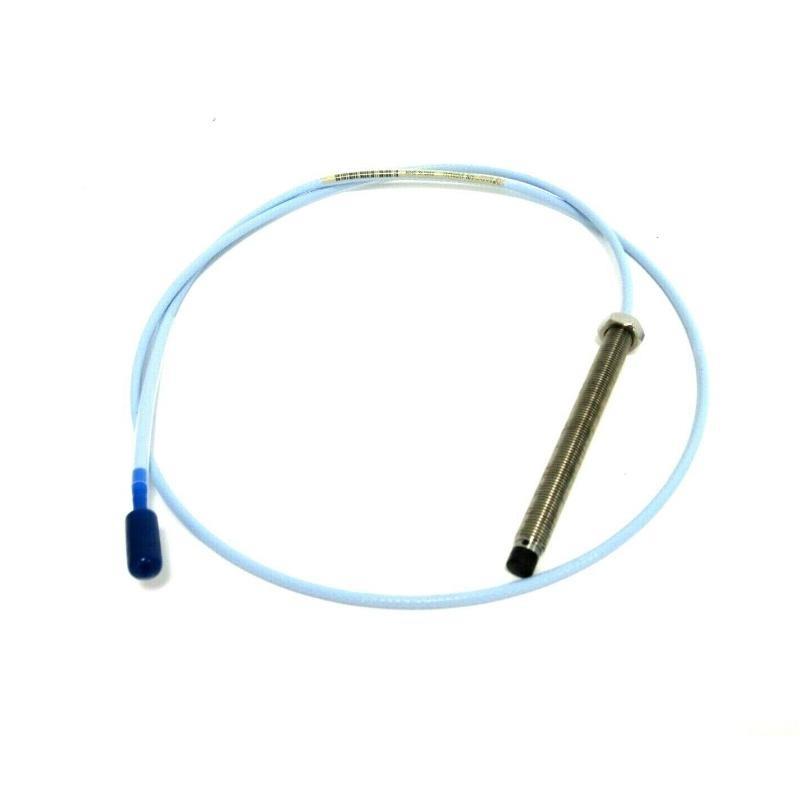

Bently Nevada 330101-00-40-05-02-05 3300 XL 8 mm Proximity Probe Original

Brand：Bently Nevada

Item No.：330101-00-40-05-02-05

Product Type：

Product Origin：USA

Dimensions：Probe head diameter 8 mm, total system length 40 m

Weight：0.31 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

This product is imported from overseas, supports test report assistance, and after-sales docking is smooth

Large stock, diverse series, adapted to different working conditions, welcome to consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the main function of the 330101-00-40-05-02-05 probe?
It measures shaft vibration, position, and displacement in rotating machinery using eddy current sensing technology.

What does “40-05” in the model number mean?
“40” indicates the total system length, and “05” refers to the 5 ft matched extension cable.

Which proximitor sensor is compatible with this probe?
It is designed for use with the 3300 XL Proximitor Sensor for precise and reliable measurement.

Can this probe operate in harsh industrial environments?
Yes, the stainless-steel housing and IP67 protection make it resistant to oil, dust, and vibration.

What type of signal does it output?
It produces a voltage output proportional to shaft vibration and displacement.

What is the operating temperature range?
It operates reliably from –35 °C to +177 °C.

Is it suitable for high-speed rotating machinery?
Yes, with a frequency response up to 10 kHz, it supports monitoring of high-speed equipment.

What are the physical dimensions and weight of the probe?
The probe has an 8 mm tip diameter, a total system length of 40 m, and weighs approximately 0.31 kg.
