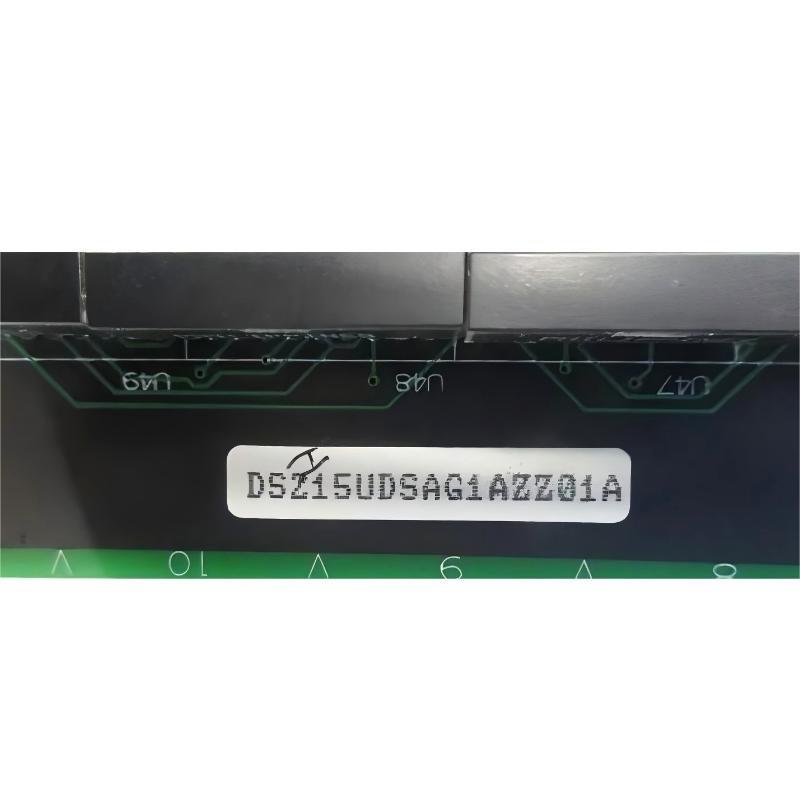

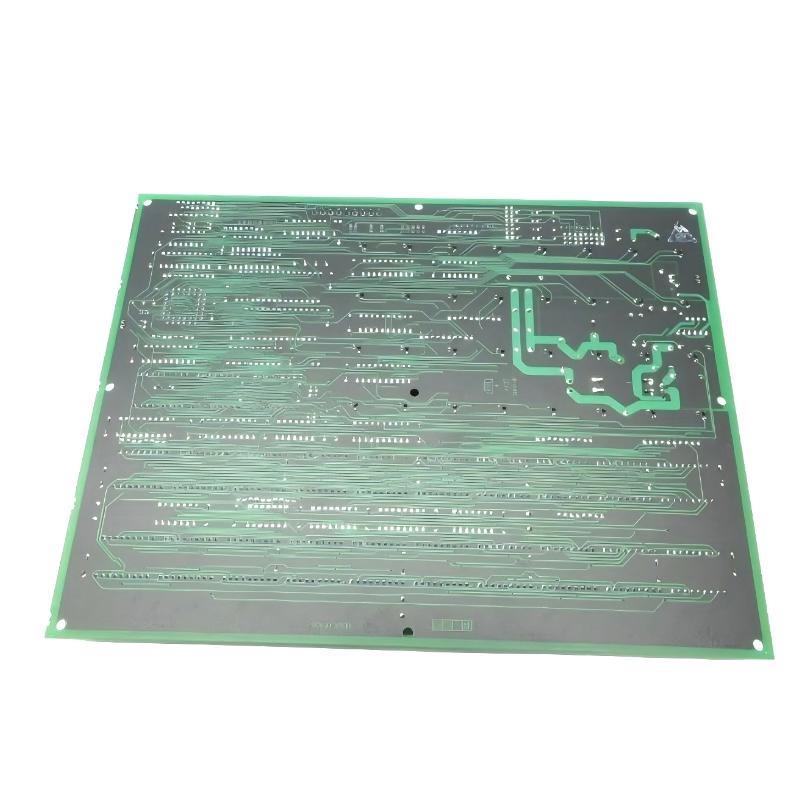

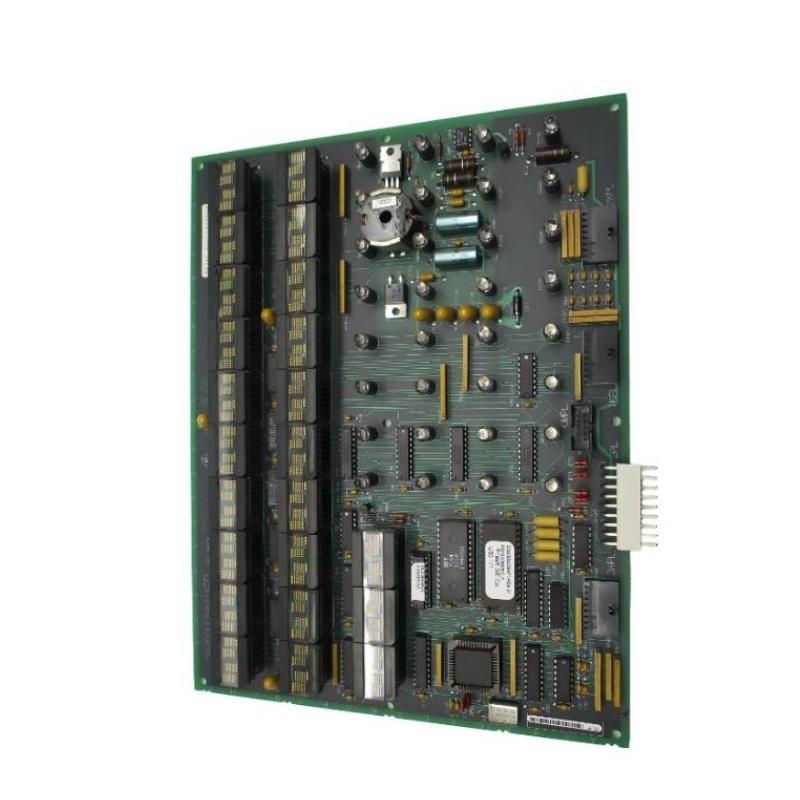

GE DS215UDSAG1AZZ01A Relay Board Fast Shipping!

FAQ

What is the main function of the GE DS215UDSAG1AZZ01A Relay Board?
The DS215UDSAG1AZZ01A functions as a relay interface module that manages switching operations, signal routing, and protection control within GE industrial systems.

Which GE control systems is this relay board compatible with?
It is primarily designed for integration with GE Mark V and Mark VI turbine and process control systems, ensuring seamless communication through the system backplane.

How many relay channels does the DS215UDSAG1AZZ01A provide?
The module includes eight independent relay channels, each capable of handling discrete control functions or alarm outputs.

What type of protection features are built into this relay board?
It includes overvoltage, reverse polarity, and transient suppression protection to ensure reliable performance in electrically noisy industrial environments.

How is relay operation status indicated on the module?
Each relay output is equipped with a dedicated LED indicator, providing clear visual feedback on the operational status of every channel.

What is the typical operating voltage for the coil drive circuit?
The relay coils are driven by a nominal 24 VDC power supply with a tolerance of ±10%, ensuring stable actuation and long-term reliability.

How fast does the DS215UDSAG1AZZ01A respond to control signals?
The board provides a rapid response, typically under 10 milliseconds, enabling precise and timely switching for control and safety applications.

What compliance and certifications does this board meet?
The DS215UDSAG1AZZ01A complies with CE, UL, and CSA standards, verifying its quality, safety, and performance for use in demanding industrial control environments.
