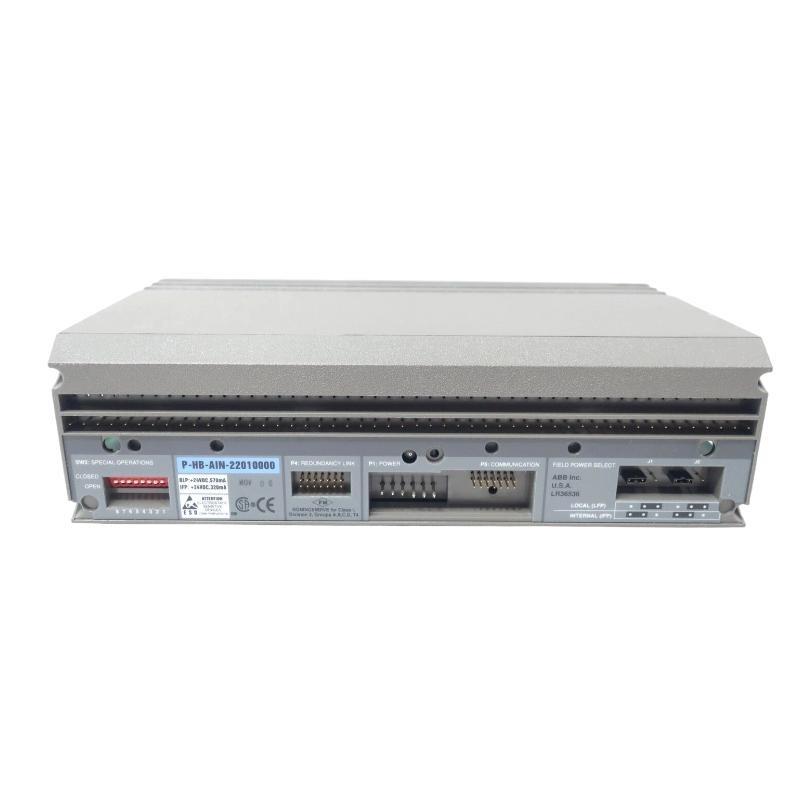

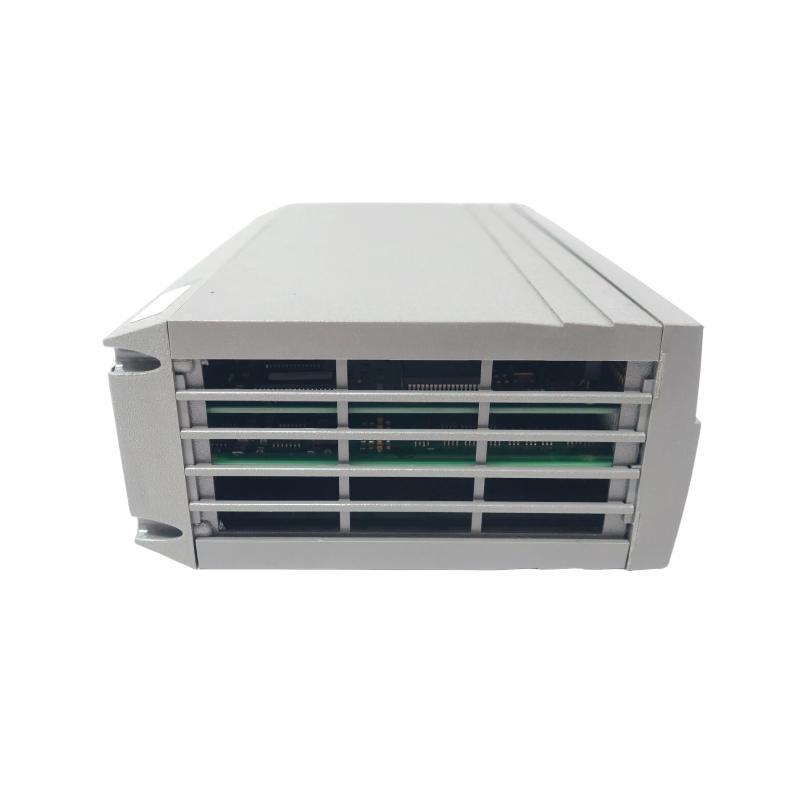

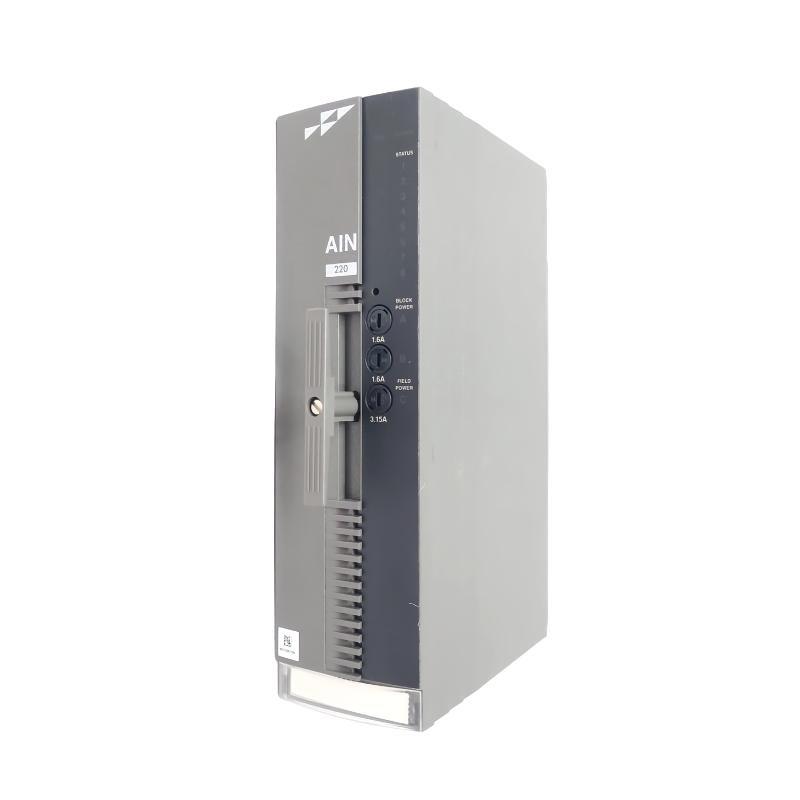

ABB Bailey AIN200 P-HB-AIN-20010 000 Analog Input Module Original

FAQ

What types of signals can the AIN200 module accept?
It supports 0–20 mA, 4–20 mA, 0–10 VDC, and ±10 VDC analog signals.

How is signal accuracy maintained across the module?
It uses 16-bit A/D conversion with ±0.1% full-scale accuracy and isolation between channels to prevent interference.

What kind of diagnostics does the AIN200 offer?
It provides overrange, underrange, and fault detection for each channel to alert operators to potential issues.

How is the module powered?
Power is supplied through the system backplane when the module is installed in the control rack.

Can the module operate in high humidity environments?
Yes, it is rated to operate in 5% to 95% relative humidity, non-condensing.

What is the typical response time for an input signal?
The module has a typical response time of 20 milliseconds per channel.

How does the module interface with the control system?
It connects directly to the Bailey control system via the backplane, allowing real-time analog data acquisition.

Is the module compatible with other Bailey system modules?
Yes, it is fully compatible with other Bailey control system modules and can be mounted in standard racks.
