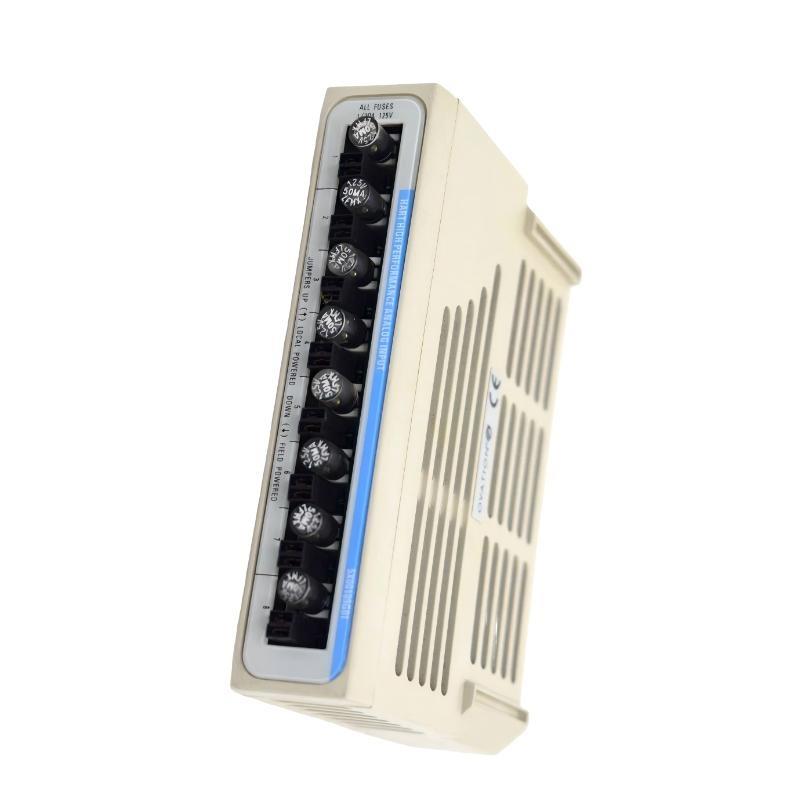

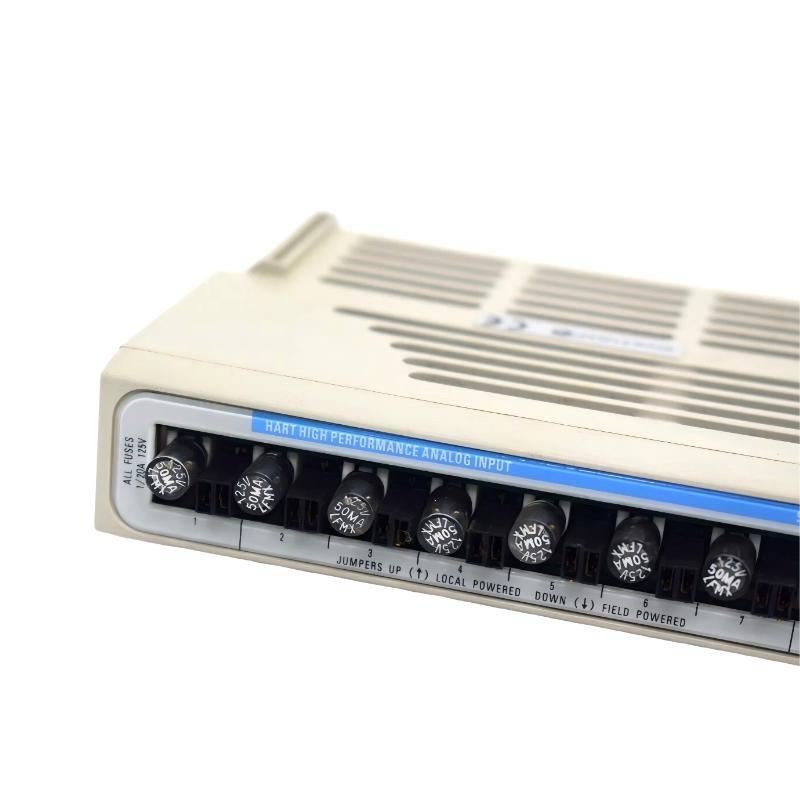

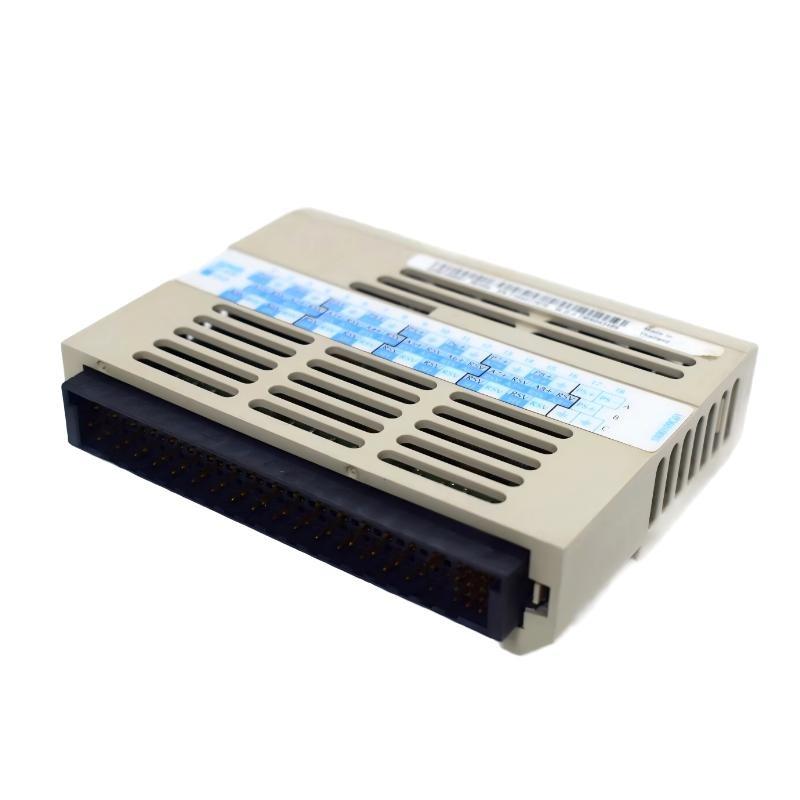

Ovation 5X00109G01 Analog Input Module New In Stock

FAQ

What is the primary function of the Ovation 5X00109G01 Analog Input Module?
It captures analog signals from field sensors and converts them into digital data for the Ovation control system.

What types of input signals does this module support?
It supports 4–20 mA current signals and 0–10 V DC voltage signals, which can be independently configured for each channel.

How many analog input channels are available?
The module provides 8 differential analog input channels.

Does the module offer electrical isolation?
Yes, it provides 500 V isolation between channels and between the channels and the system bus.

Are there diagnostic capabilities in the module?
Yes, it includes continuous self-test, fault monitoring, and open-circuit detection for reliability.

How is this module integrated into the Ovation system?
It connects to the Ovation I/O system bus for seamless communication with the control system.

Can each channel be configured individually for current or voltage?
Yes, each of the 8 channels can be independently set for either 4–20 mA or 0–10 V DC input.

In what industries is this module commonly used?
It is widely used in power generation, industrial automation, and chemical processing applications requiring precise analog measurement.
