Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

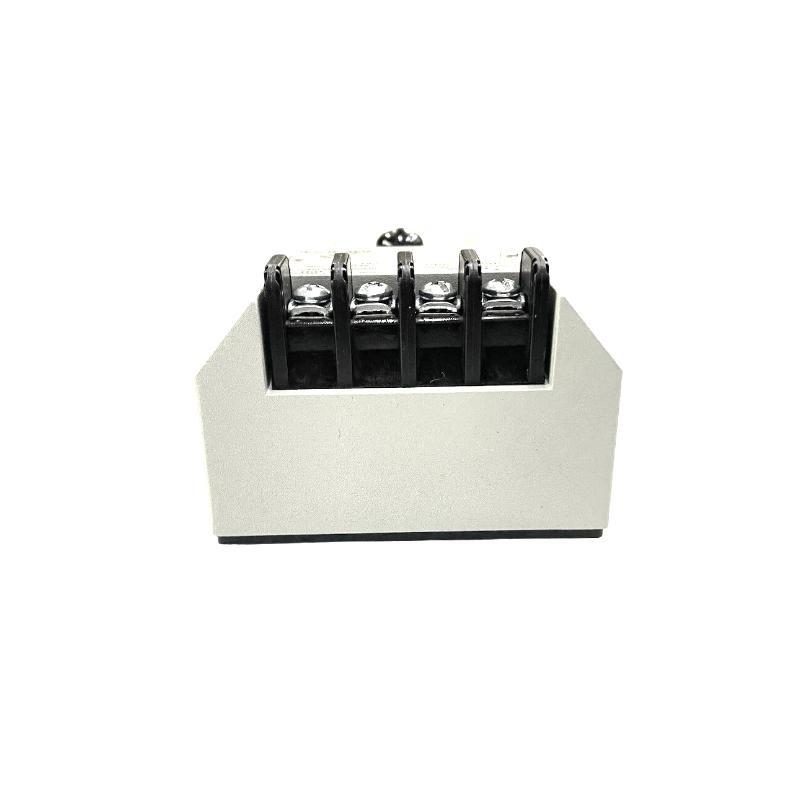

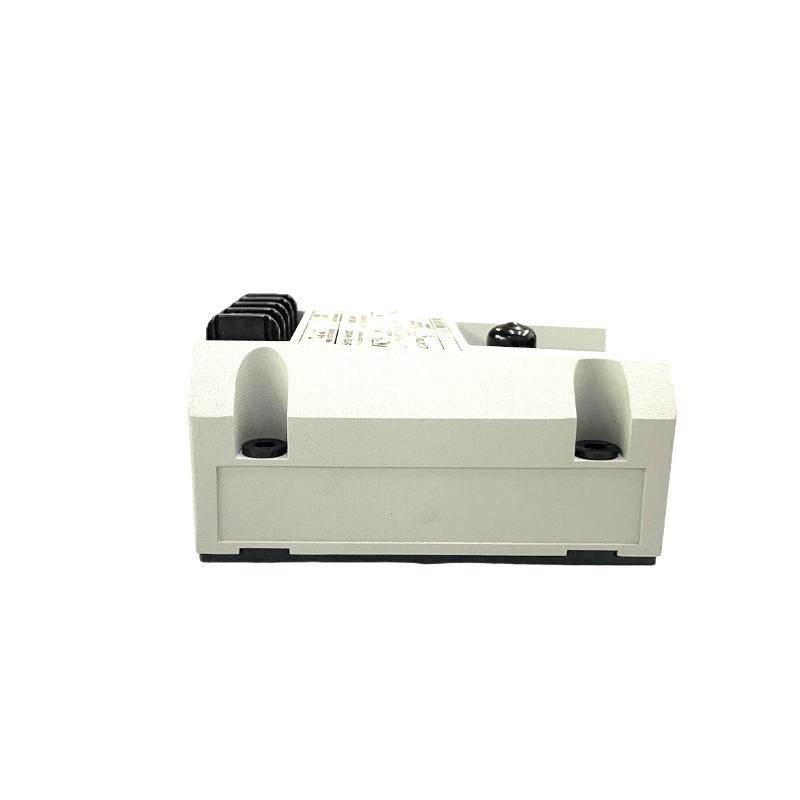

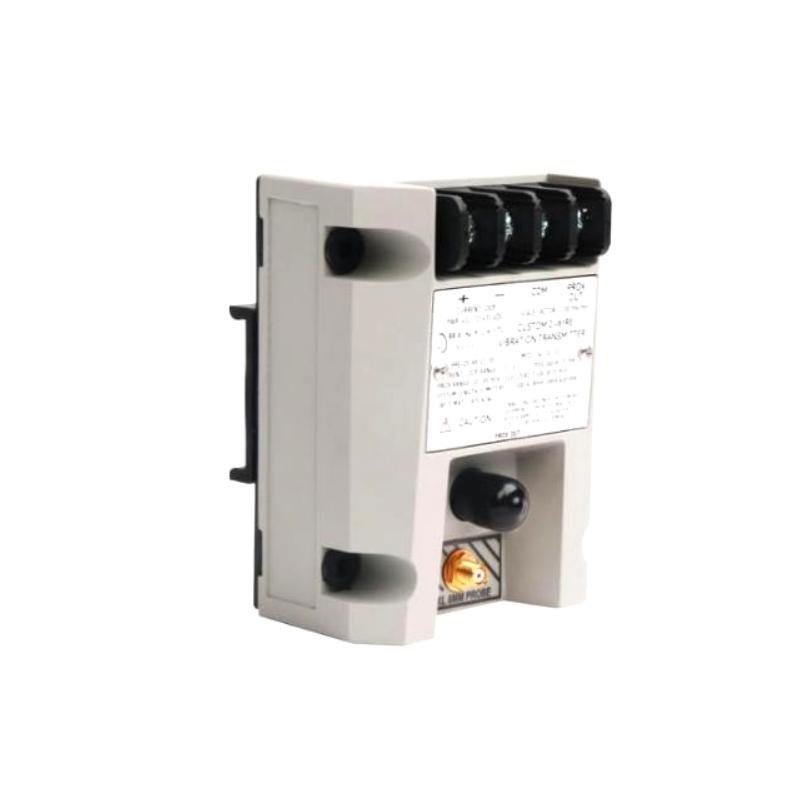

Bently Nevada 991-06-70-01-05 991 Series Vibration Transducer Interface Module 12-Month Warranty

Brand：Bently Nevada

Item No.：991-06-70-01-05

Product Type：991 Series Vibration Transducer Interface Module

Product Origin：USA

Dimensions：100.1 mm × 73.9 mm × 53.3 mm

Weight：0.43 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

The product source is clear and reliable, supports third-party testing, and has complete after-sales support

The model is complete, and the inventory is updated in real time. Welcome to get the latest list!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the purpose of the 991-06-70-01-05 module?
It is designed to convert vibration or displacement probe signals into a 4–20 mA output for use in machinery protection and condition monitoring systems.

What is the difference between the “05” and “00” versions?
The “05” version typically indicates a region-specific configuration with enhanced calibration or operating range.

Which sensors can be connected to this module?
It works with Bently Nevada 3300 and 3300 XL proximity probe systems for accurate vibration and displacement monitoring.

What kind of output does the 991-06-70-01-05 provide?
It provides a linear 4–20 mA DC signal proportional to measured vibration amplitude or shaft position.

How is the unit powered?
It operates on a standard 24 VDC power supply.

What are the mounting options available?
The module can be mounted on a DIN rail or fixed directly to a panel depending on installation requirements.

What are the physical specifications of the module?
The unit measures 100.1 mm × 73.9 mm × 53.3 mm and weighs approximately 0.43 kg.

Where is this model commonly applied?
It is used in rotating equipment such as turbines, compressors, motors, and pumps to ensure continuous machinery health monitoring and predictive maintenance.
